CAUTION: Touching the end of a ber-optic cable damages the cable. Whenever a ber-optic cable is not connected,
replace the protective covers on the ends of the cables.
2 Open the transceiver module latching mechanism.
3 Grasp the bail clasp latch on the transceiver module and pull the latch out and down to eject the transceiver module from the socket.
4 Slide the transceiver module out of the port.

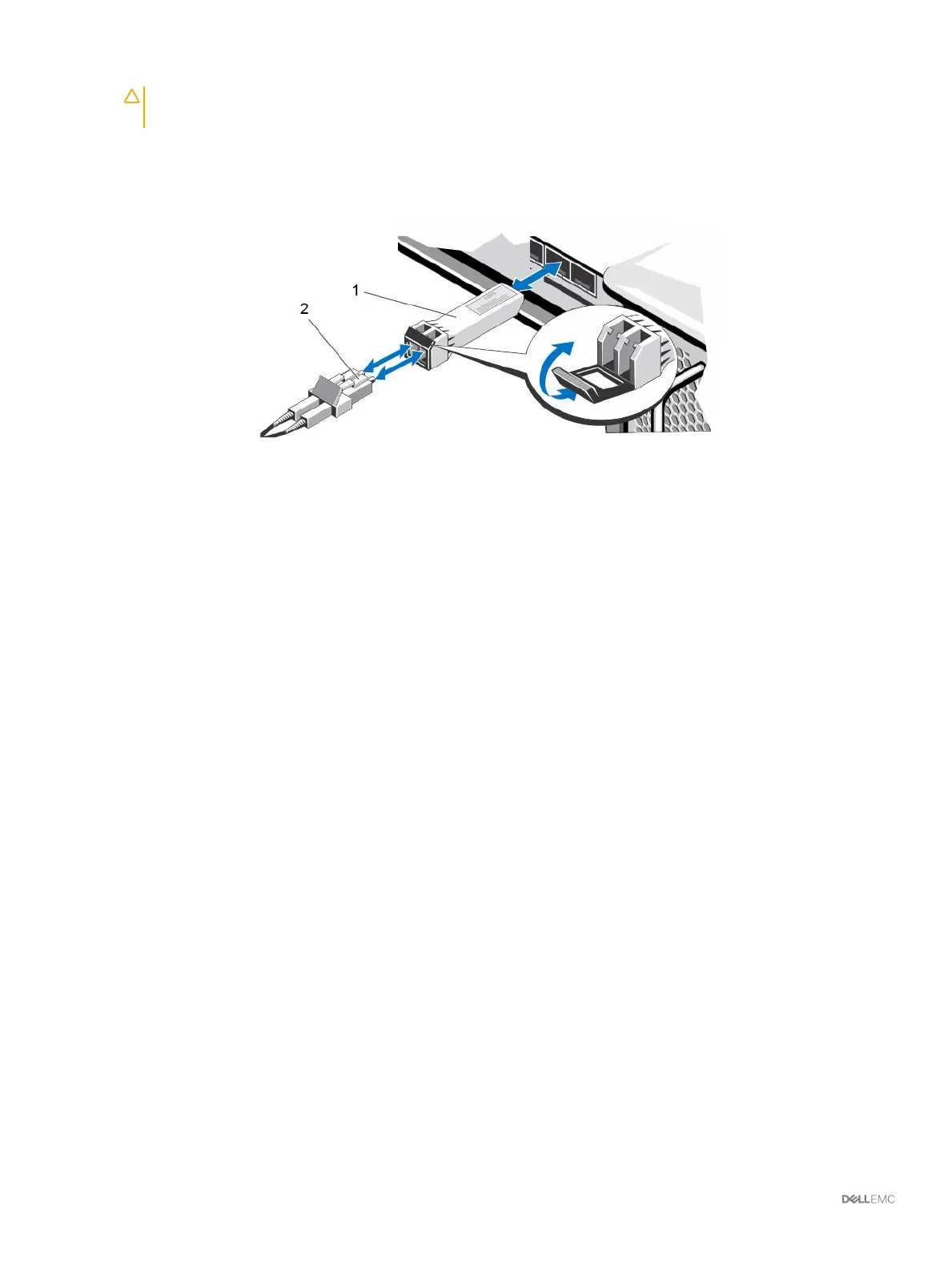

Figure 6. Remove the SFP+ Transceiver Module
1 SFP+ transceiver module 2 Fiber-optic cable connector
Back-End Connectivity
Back-end connectivity is strictly between the storage system and expansion enclosures.
The SCv3000 and SCv3020 storage system supports back-end connectivity to multiple SCv300, SCv320, and SCv360 expansion
enclosures.
System Administration
To perform system administration, the Storage Center communicates with computers using the Ethernet management (MGMT) port on
the storage controllers.
The Ethernet management port is used for Storage Center conguration, administration, and management.
Storage Center Replication
Storage Center sites can be collocated or remotely connected and data can be replicated between sites. Storage Center replication can
duplicate volume data to another site in support of a disaster recovery plan or to provide local access to a remote data volume. Typically,
data is replicated remotely as part of an overall disaster avoidance or recovery plan.
The SCv3000 and SCv3020 storage system supports replication to the storage systems listed below. However, a Storage Manager Data
Collector must be used to replicate data between the storage systems. For more information about installing and managing the Data
Collector and setting up replications, see the Storage Manager Installation Guide.
• SCv3000 series
• SC4020
• SC5020 series
• SC7020 series
• SC8000
16
About the SCv3000 and SCv3020 Storage System
