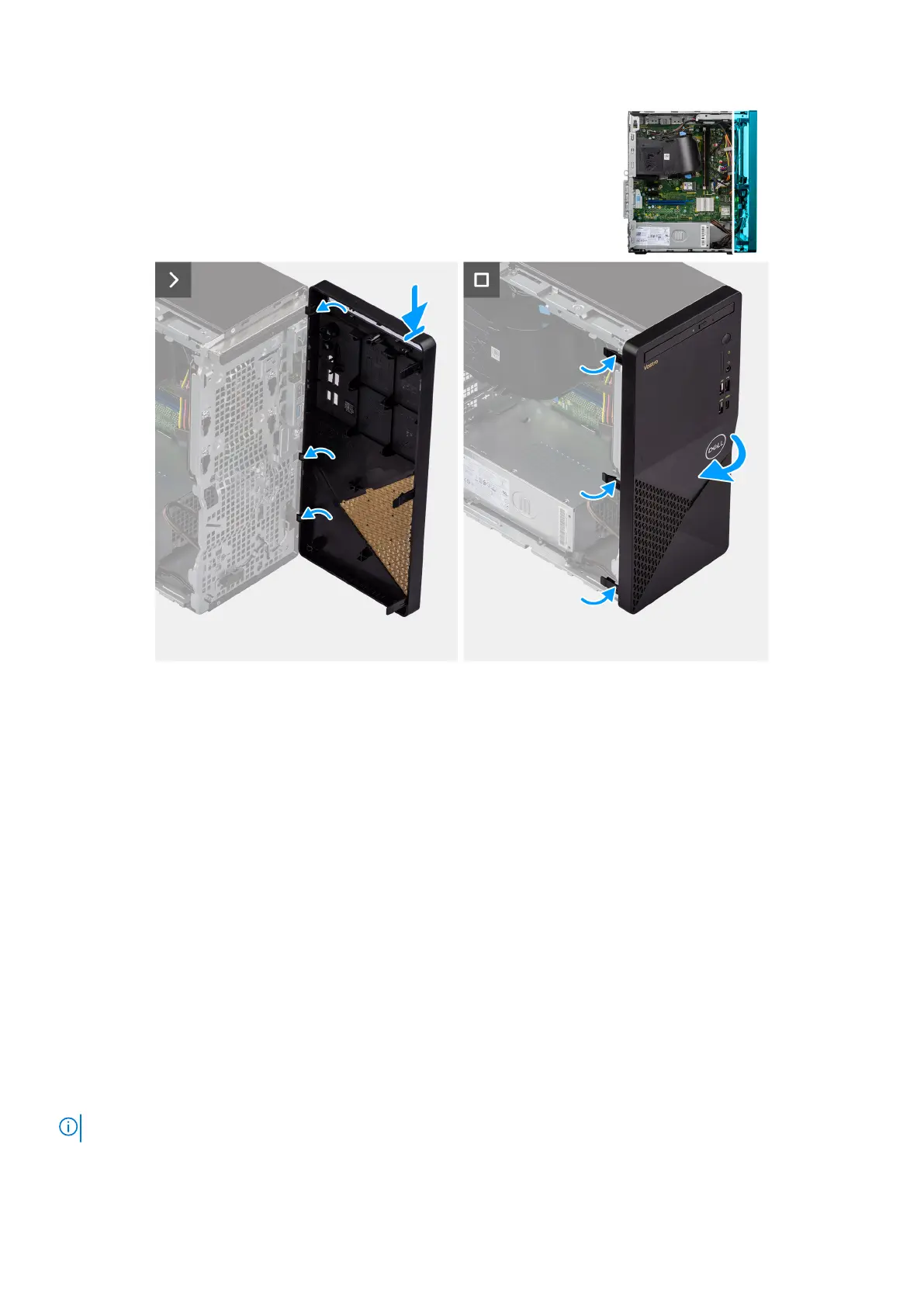

Figure 13. Installing the front cover
Steps
1. Align and insert the front-cover tabs into the slots on the right side of the chassis.
2. Rotate the front cover towards the chassis and snap the tabs into place.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
Memory
Removing the memory
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
About this task
NOTE: This computer may have up to two memory modules installed.
The following image indicates the location of the memory and provides a visual representation of the removal procedure.
Removing and installing Customer Replaceable Units (CRUs)
35
