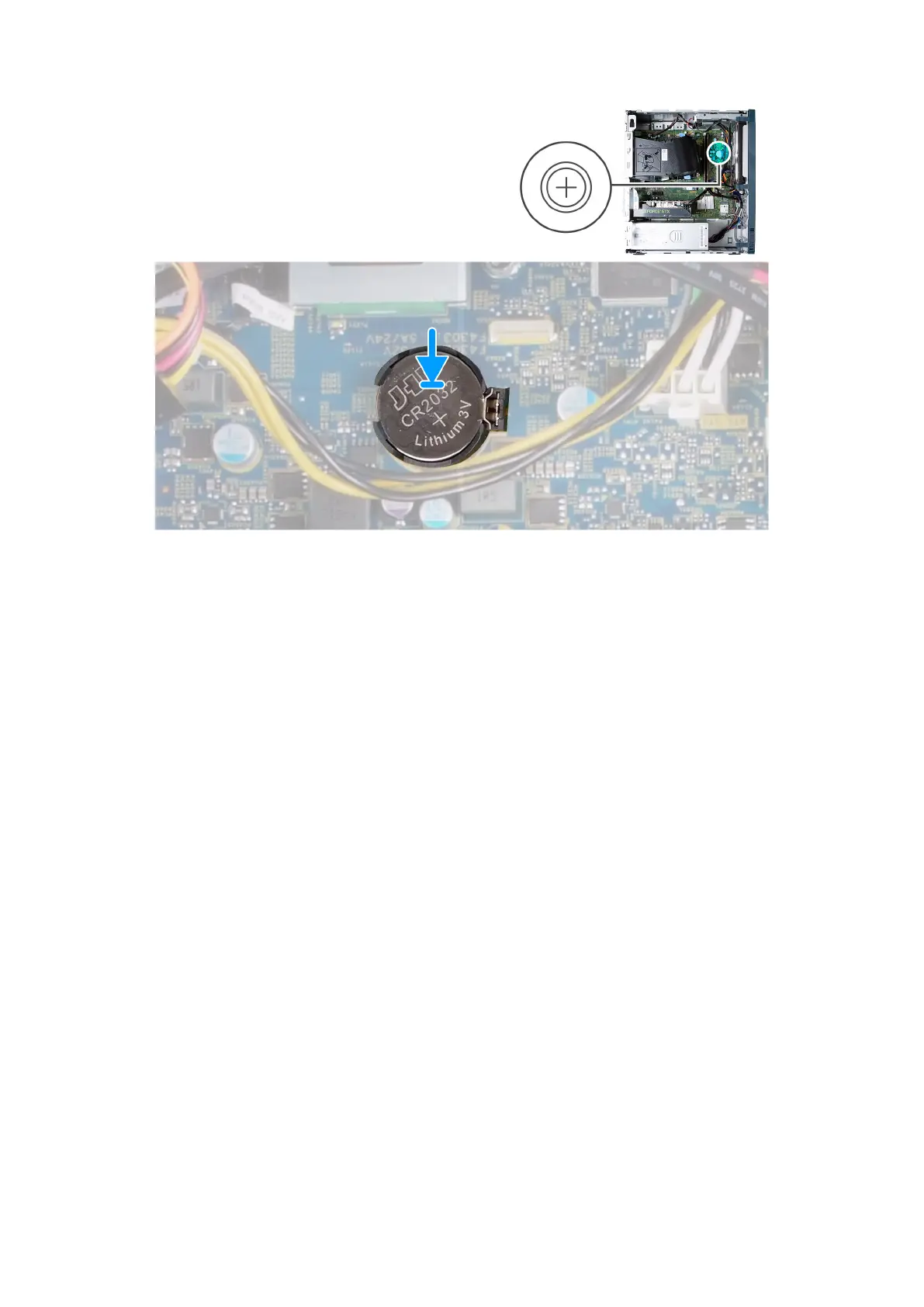

Figure 19. Installing the coin-cell battery
Steps
1. Insert the coin-cell battery into the socket with the positive side (+) label facing up and snap the battery in the socket.
2. Place the computer in an upright position.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
Wireless card
Removing the wireless card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
About this task
The following image indicates the location of the wireless card and provides a visual representation of the removal procedure.
Removing and installing Customer Replaceable Units (CRUs)
41
