Optional Input/Output modules
Serial module
Removing the optional serial module
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the fan shroud.
About this task
The following image indicates the location of the optional serial module and provides a visual representation of the removal
procedure.

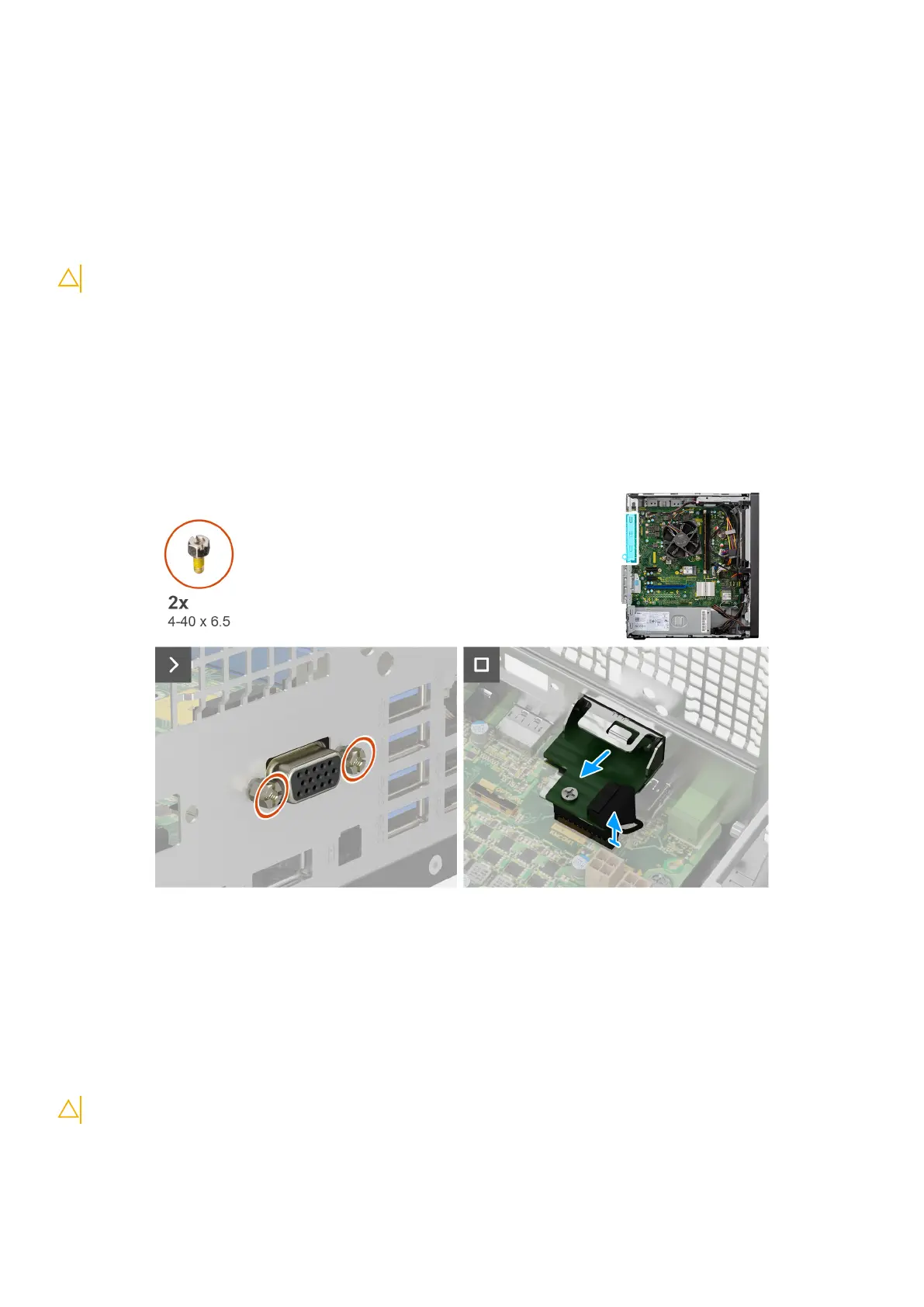

Figure 44. Removing the optional serial module
Steps
1. Remove the two (4-40x6.5) screws that secure the optional serial module to the chassis.
2. Disconnect the optional serial module cable from the connector on the system board.
3. Lift the optional serial module off the system board.
Installing the serial module
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
Removing and installing Field Replaceable Units (FRUs)
71
