Coin-cell battery
Removing the coin-cell battery
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
About this task
The following image indicates the location of the coin-cell battery and provides a visual representation of the removal procedure.

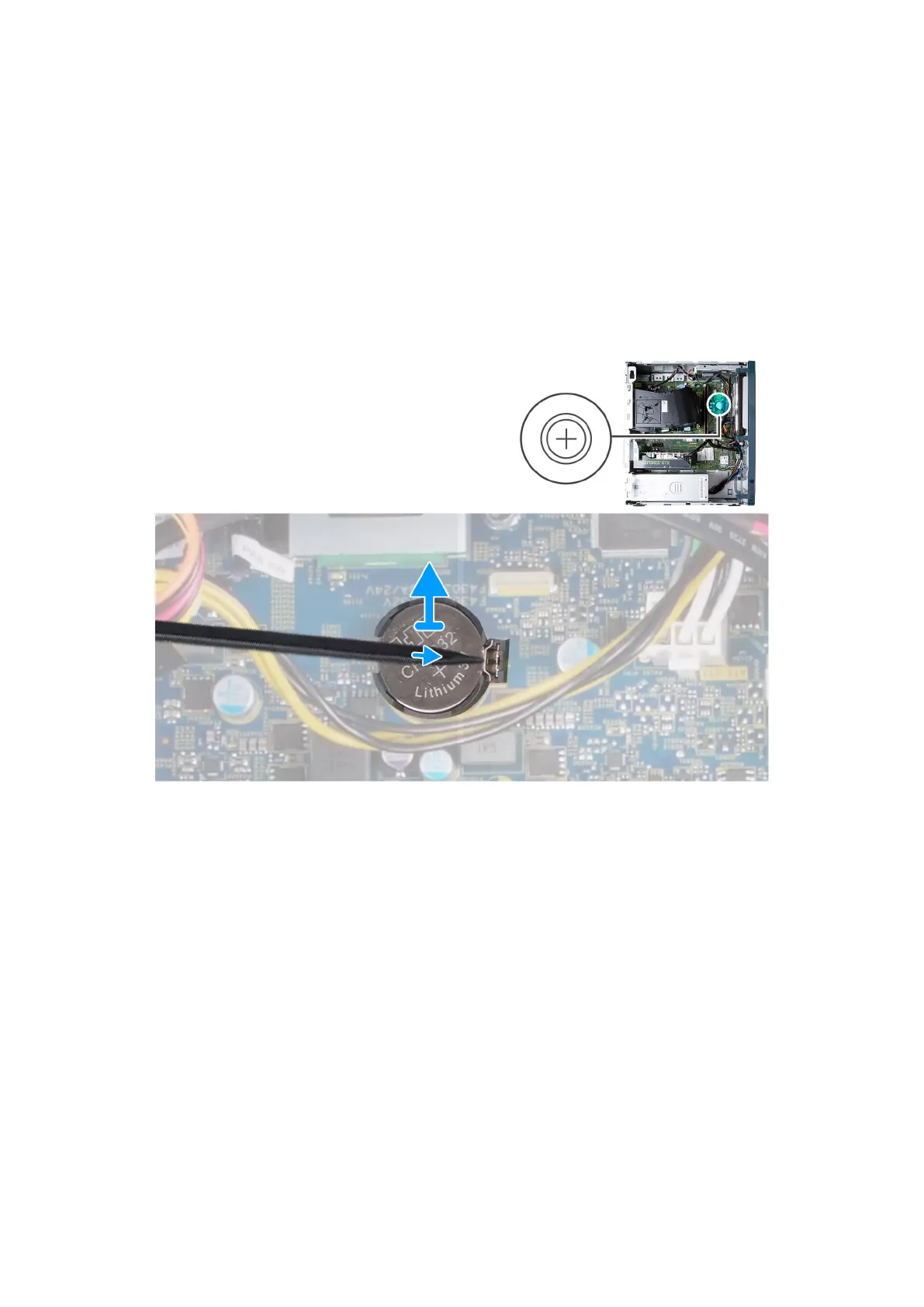

Figure 18. Removing the coin-cell battery
Steps
1. Place the computer on its side with the left side facing up.
2. Using a plastic scribe, push the coin-cell battery securing-clip on the coin-cell battery socket to release the coin-cell battery.
3. Remove the coin-cell battery from the system board.
Installing the coin-cell battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image indicates the location of the coin-cell battery and provides a visual representation of the installation
procedure.
40
Removing and installing Customer Replaceable Units (CRUs)
