About this task
The following image indicates the location of the serial module and provides a visual representation of the installation procedure.

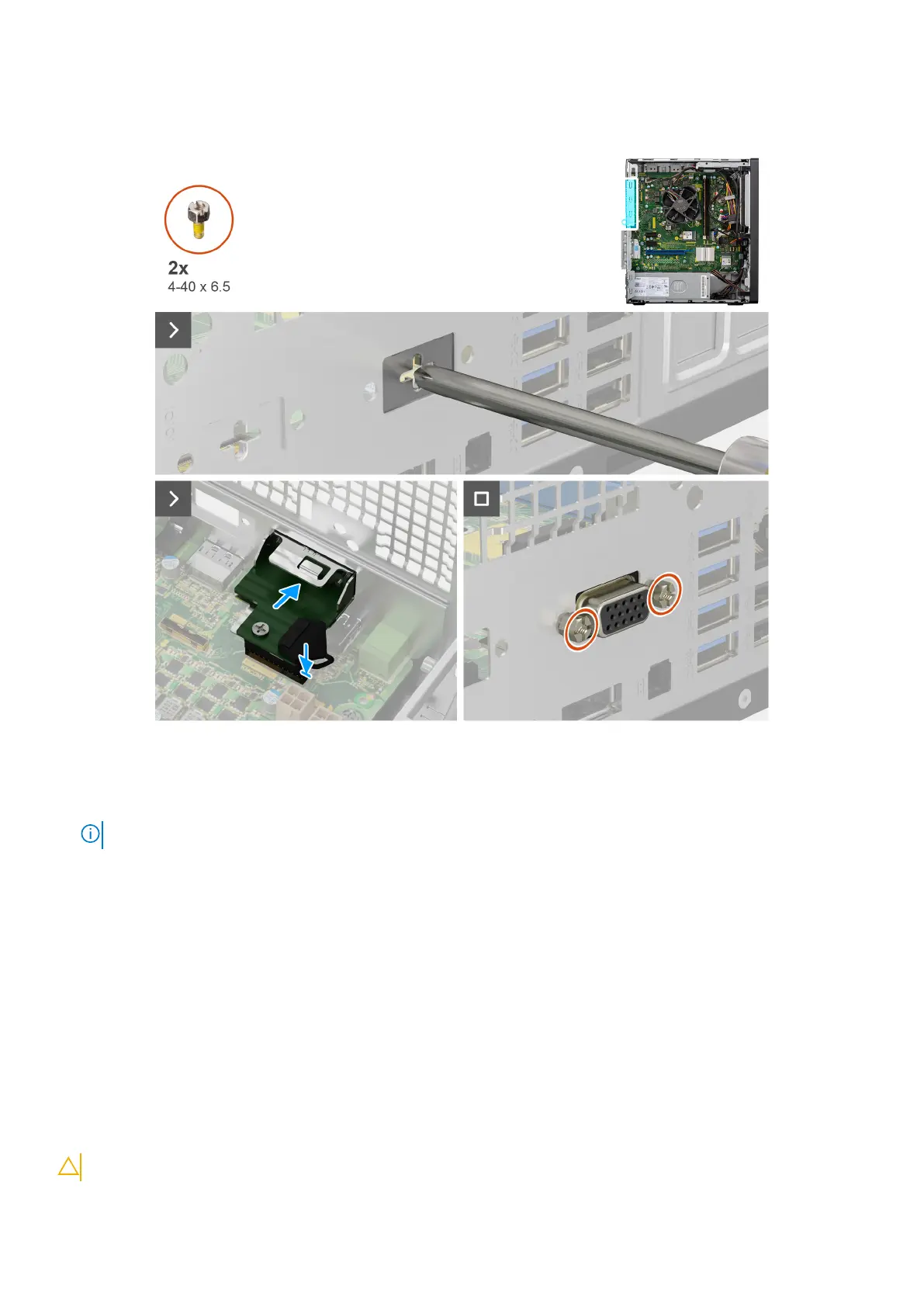

Figure 45. Installing the serial module
Steps
1. Using a screwdriver, remove the serial module cover from the chassis.
NOTE: This step is applicable only when the serial module is being installed for the first time.
2. Connect the serial-module cable to the connector (KB_MS_SERIAL) on the system board.
3. Insert the serial module into the slot on the chassis.
4. Replace the two (4-40x6.5) screws that secure the serial module to the chassis.
Next steps
1. Install the fan shroud.
2. Install the side cover.
3. Follow the procedure in after working inside your computer.
VGA module
Removing optional VGA module
CAUTION: The information in this section is intended for authorized service technicians only.
72 Removing and installing Field Replaceable Units (FRUs)
