Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the fan shroud.
About this task

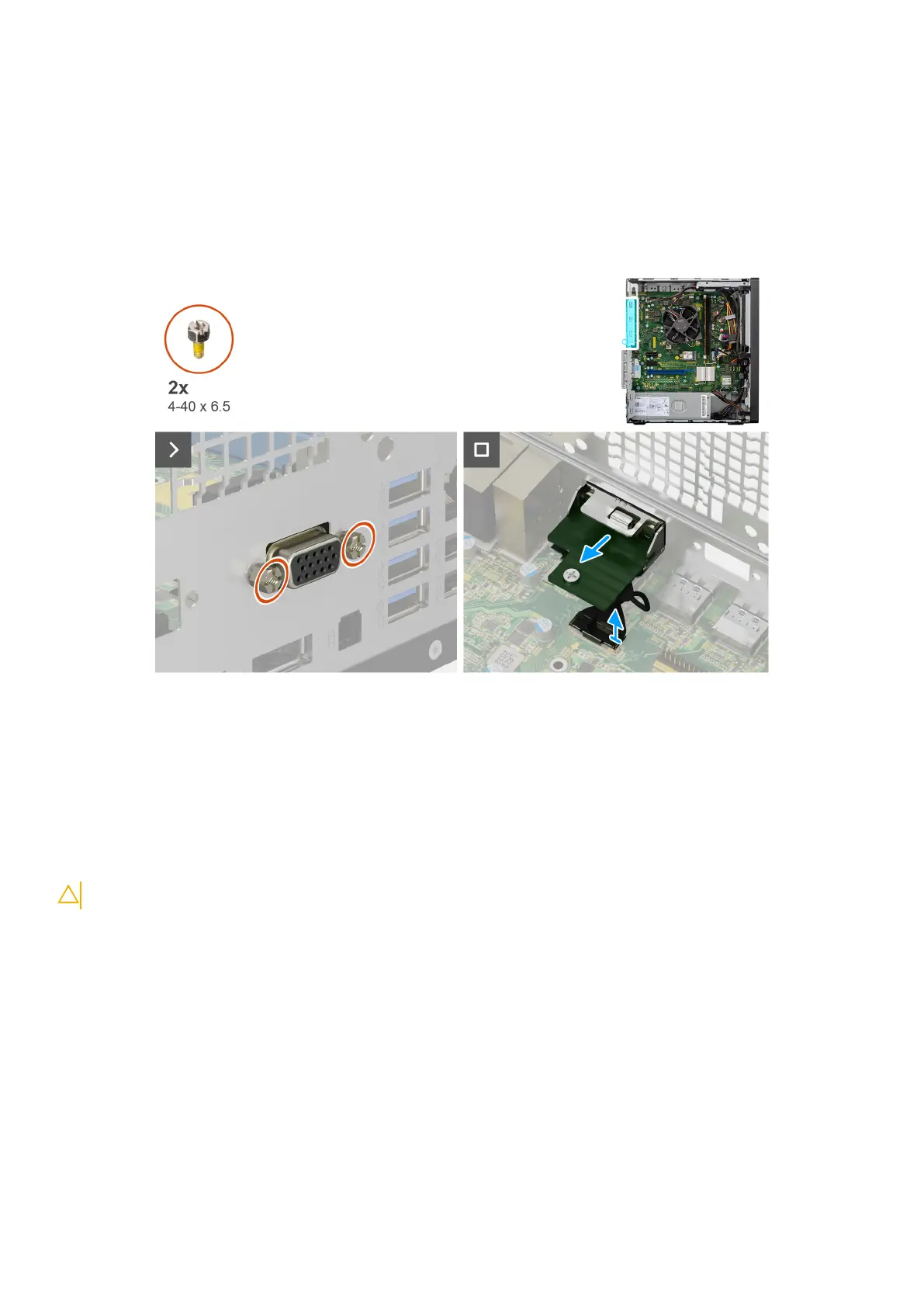

The following image indicates the location of the optional VGA module and provides a visual representation of the removal
procedure.
Figure 46. Removing optional VGA module
Steps
1. Remove the two (4-40x6.5) screws that secure the optional VGA module to the computer chassis.
2. Disconnect the VGA module cable from the connector on the system board.
3. Remove the VGA module from the computer.
Installing optional VGA module
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the optional VGA module and provides a visual representation of the installation
procedure.
Removing and installing Field Replaceable Units (FRUs)
73
