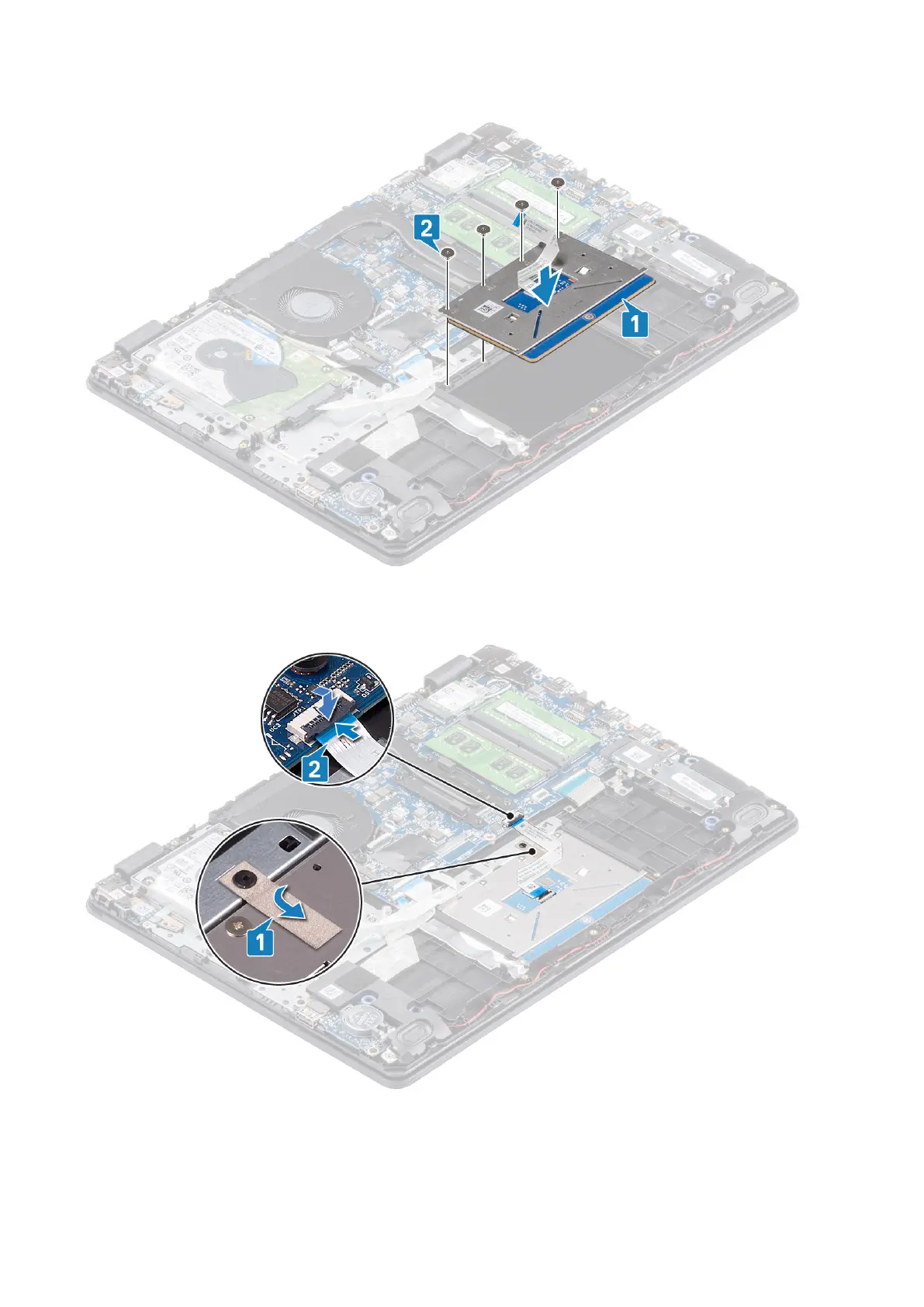

3. Adhere the tape that secures the touch pad to the palmrest and keyboard assembly [1].
4. Slide the touch pad cable into its connector on the system board and close the latch to secure the cable [2].
5. Place the touch pad bracket into the slot on the palmrest and keyboard assembly [1].
6. Replace the two screws (M2x2) that secure the touch pad bracket to the palmrest and keyboard assembly [2].
Removing and installing components
45
