Dell Vostro 3491 - Installing the Display Hinges

5. Remove the WLAN
6. Remove the SSD
7. Remove the hard drive assembly
8. Remove the system fan
9. Remove the heatsink
10. Remove the display assembly
11. Remove the display bezel
12. Remove the camera
13. Remove the display panel
Steps

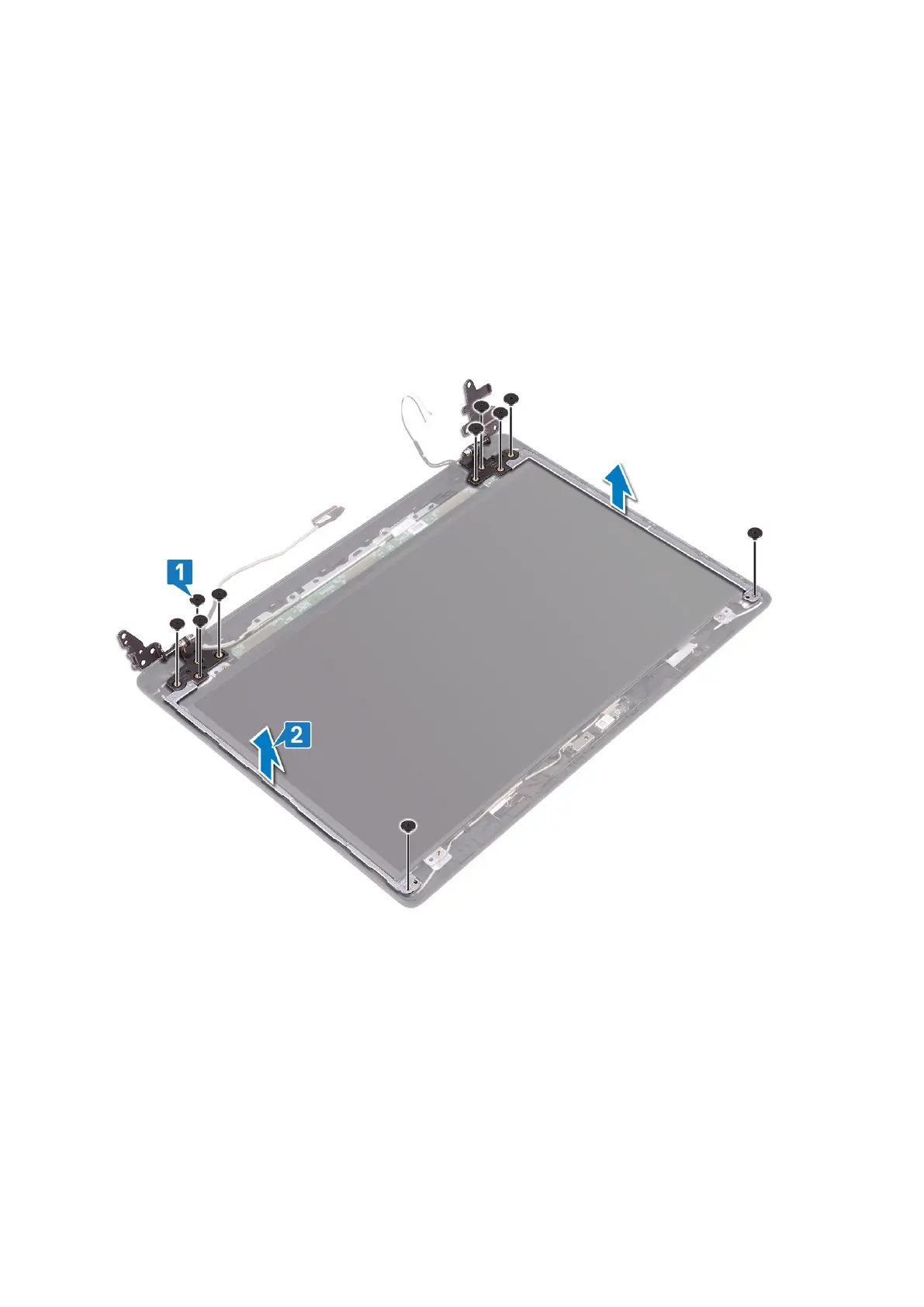

1. Remove the 10 (M2.5x2.5) screws that secure the hinges to the display back-cover and antenna assembly [1].
2. Lift the hinges and brackets off the display back-cover and antenna assembly [2].
Installing the display hinges
Steps
1. Align the screw holes on the hinges and brackets with the screw holes on the display back-cover and antenna assembly [1].
2. Replace the 10 (M2.5x2.5) screws that secure the hinges to the display back-cover and antenna assembly [2].
