Dell Vostro 3491 - Installing the Power Adapter Port

6. Remove the WLAN
7. Remove the SSD
8. Remove the hard drive assembly
9. Remove the system fan
10. Remove the heatsink
11. Remove the display assembly
12. Remove the power button board
13. Remove the system board
Steps

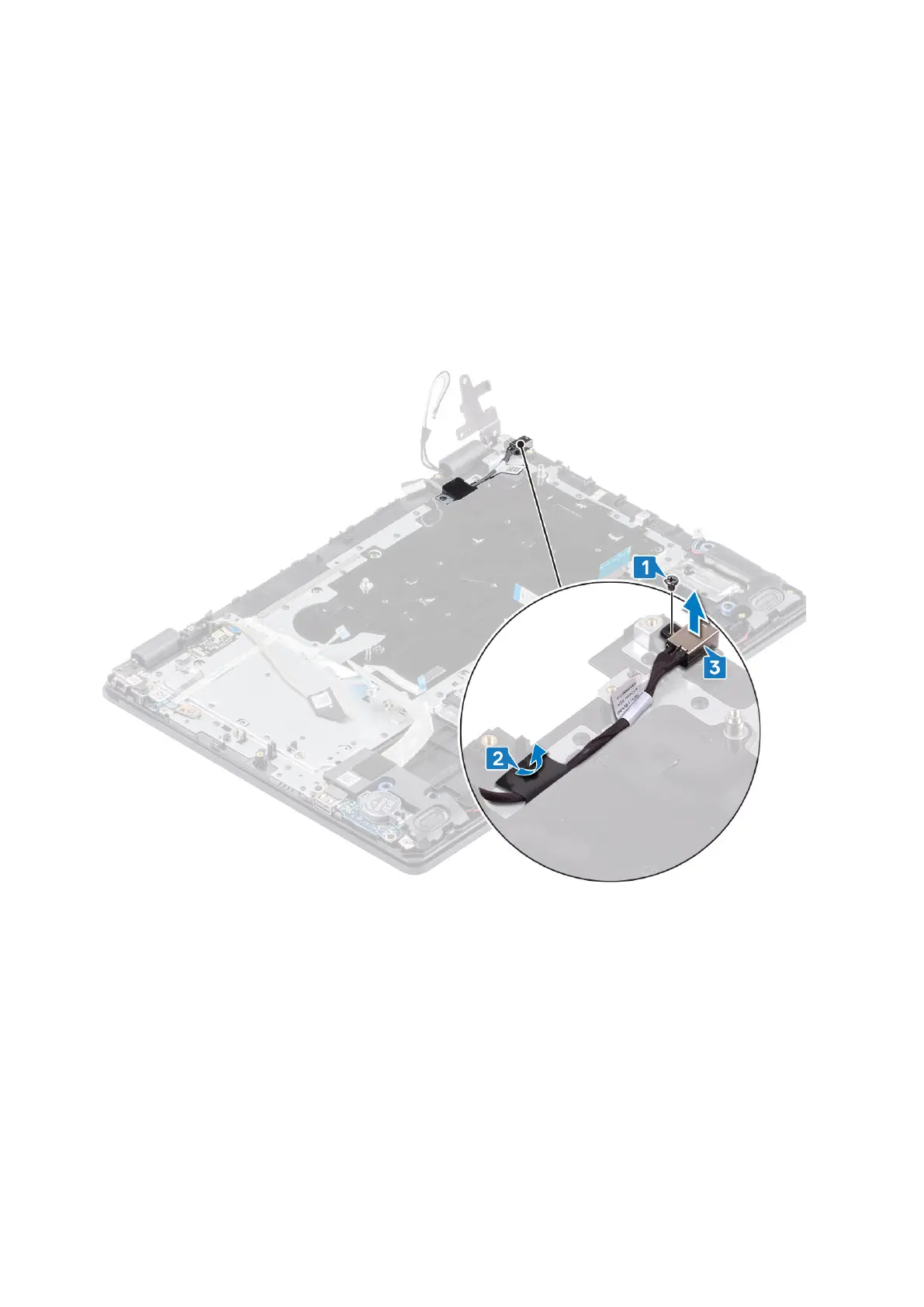

1. Remove the single (M2x3) screw that secures the power adapter port to the palmrest and keyboard assembly [1].
2. Peel the adhesive tape off the power adapter port cable [2].
3. Lift the power adapter port, along with its cable, off the palmrest and keyboard assembly [3].
Installing the power adapter port
Steps
1. Place the power adapter port into the slot on the palmrest and keyboard assembly [1].
2. Replace the single (M2x3) screw that secures the power adapter port to the palmrest and keyboard assembly [2].
3. Affix the power adapter port cable to the palmrest and keyboard assembly [3].
