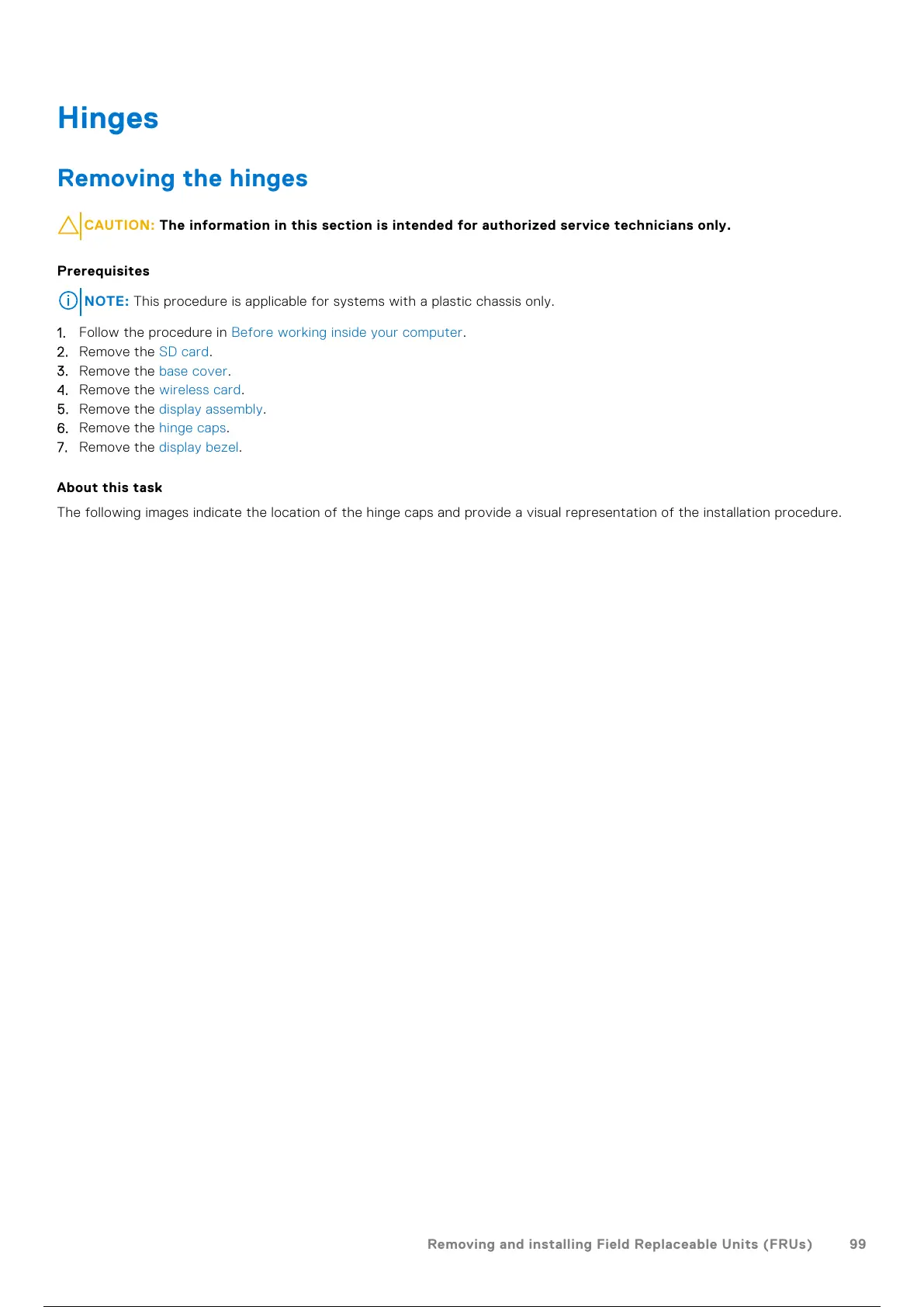

Hinges
Removing the hinges
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
NOTE: This procedure is applicable for systems with a plastic chassis only.
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the wireless card.
5. Remove the display assembly.
6. Remove the hinge caps.
7. Remove the display bezel.
About this task
The following images indicate the location of the hinge caps and provide a visual representation of the installation procedure.
Removing and installing Field Replaceable Units (FRUs)
99
