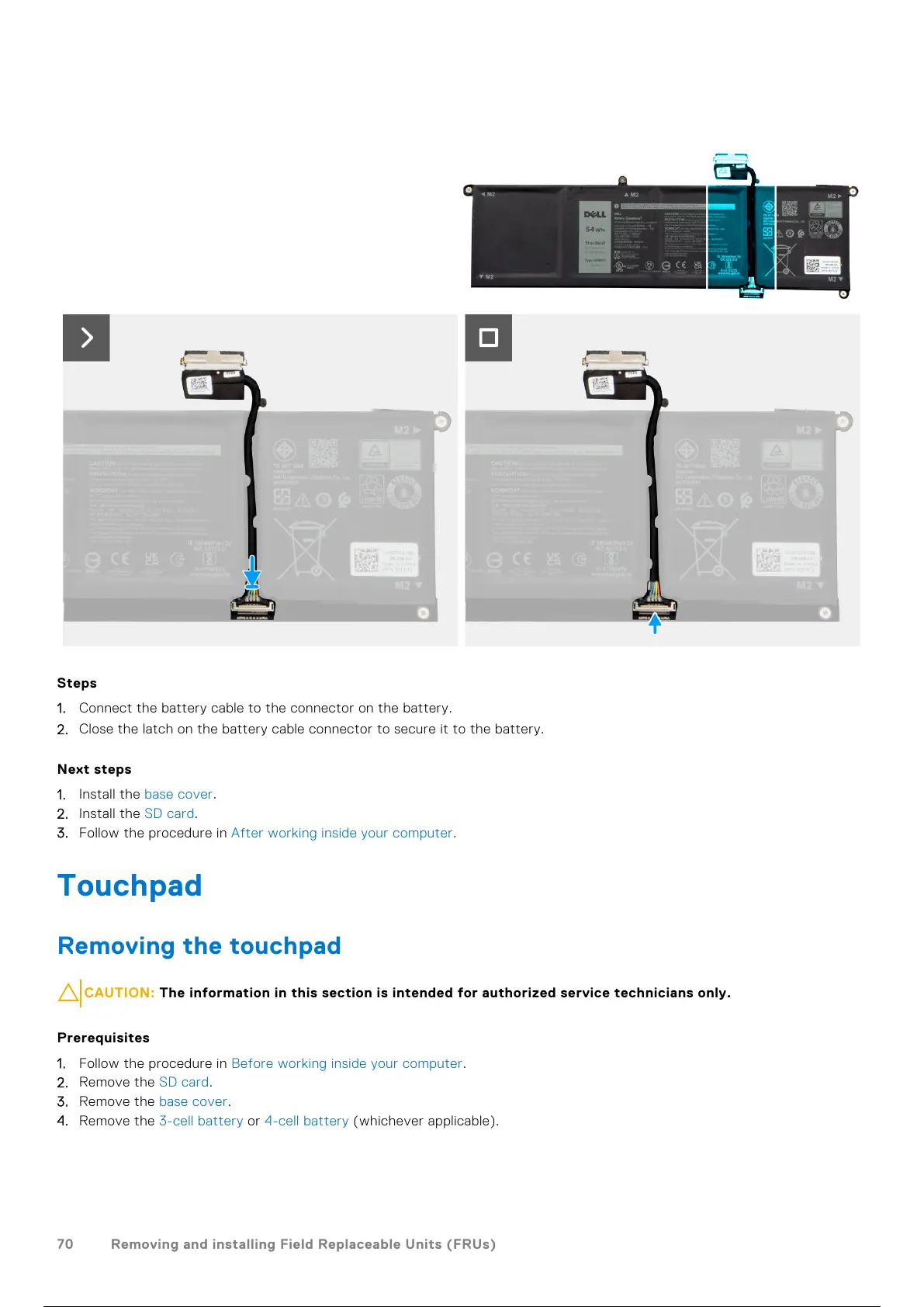

Steps
1. Connect the battery cable to the connector on the battery.
2. Close the latch on the battery cable connector to secure it to the battery.
Next steps
1. Install the base cover.
2. Install the SD card.
3. Follow the procedure in After working inside your computer.
Touchpad
Removing the touchpad
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the 3-cell battery or 4-cell battery (whichever applicable).
70
Removing and installing Field Replaceable Units (FRUs)
