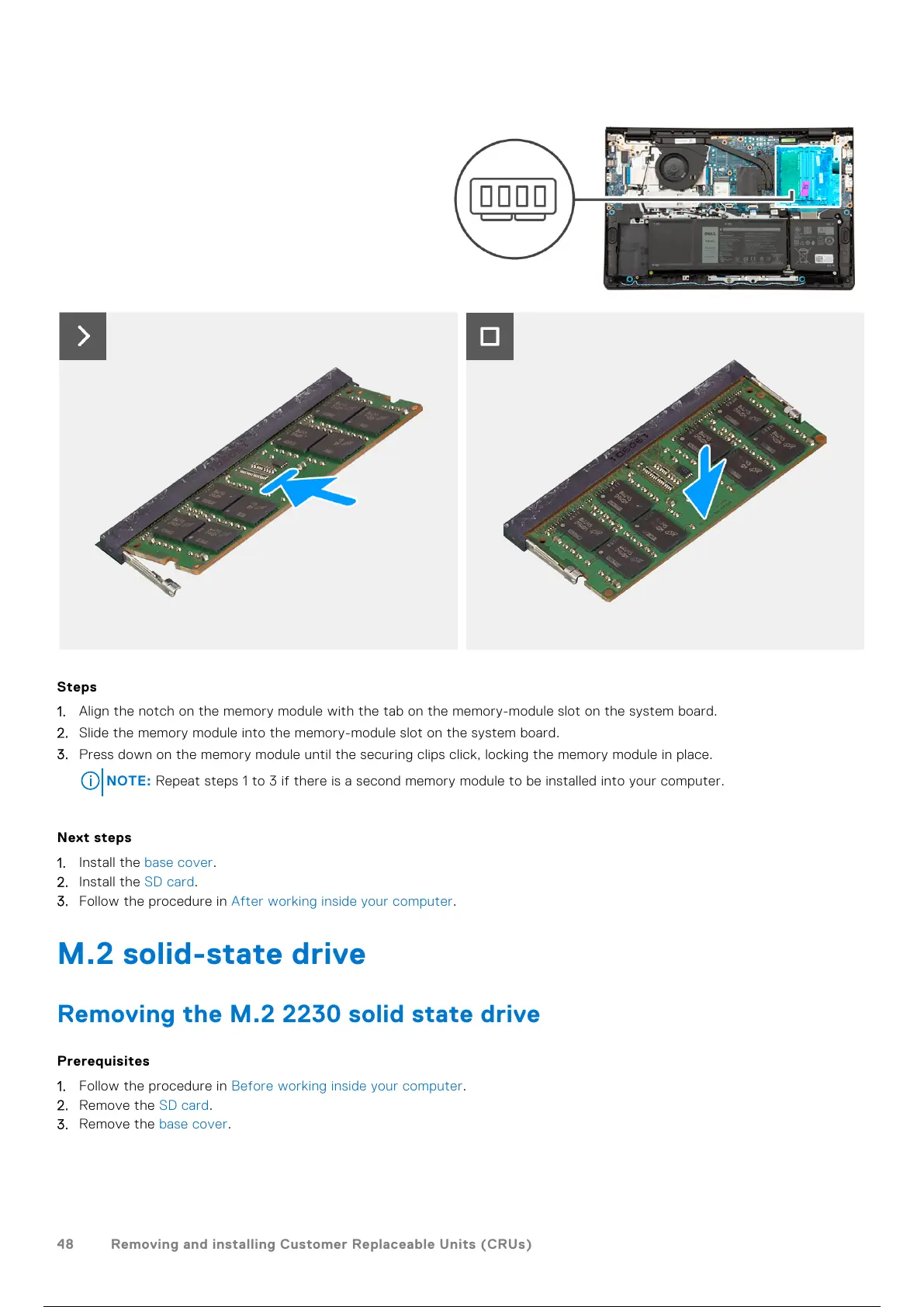

Steps
1. Align the notch on the memory module with the tab on the memory-module slot on the system board.
2. Slide the memory module into the memory-module slot on the system board.
3. Press down on the memory module until the securing clips click, locking the memory module in place.
NOTE: Repeat steps 1 to 3 if there is a second memory module to be installed into your computer.
Next steps
1. Install the base cover.
2. Install the SD card.
3. Follow the procedure in After working inside your computer.
M.2 solid-state drive
Removing the M.2 2230 solid state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
48
Removing and installing Customer Replaceable Units (CRUs)
