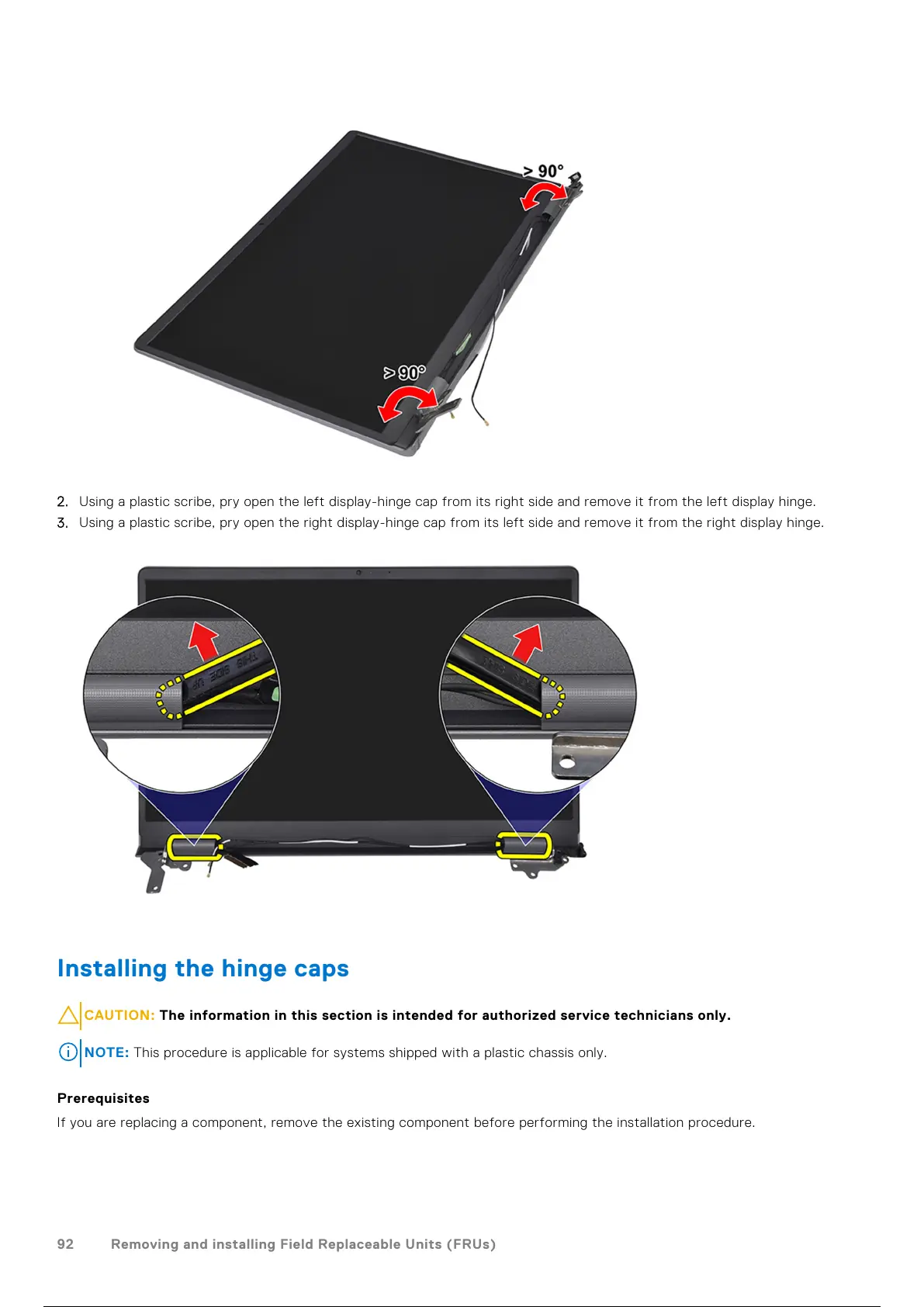

2. Using a plastic scribe, pry open the left display-hinge cap from its right side and remove it from the left display hinge.
3. Using a plastic scribe, pry open the right display-hinge cap from its left side and remove it from the right display hinge.
Installing the hinge caps
CAUTION: The information in this section is intended for authorized service technicians only.
NOTE: This procedure is applicable for systems shipped with a plastic chassis only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
92
Removing and installing Field Replaceable Units (FRUs)
