About this task

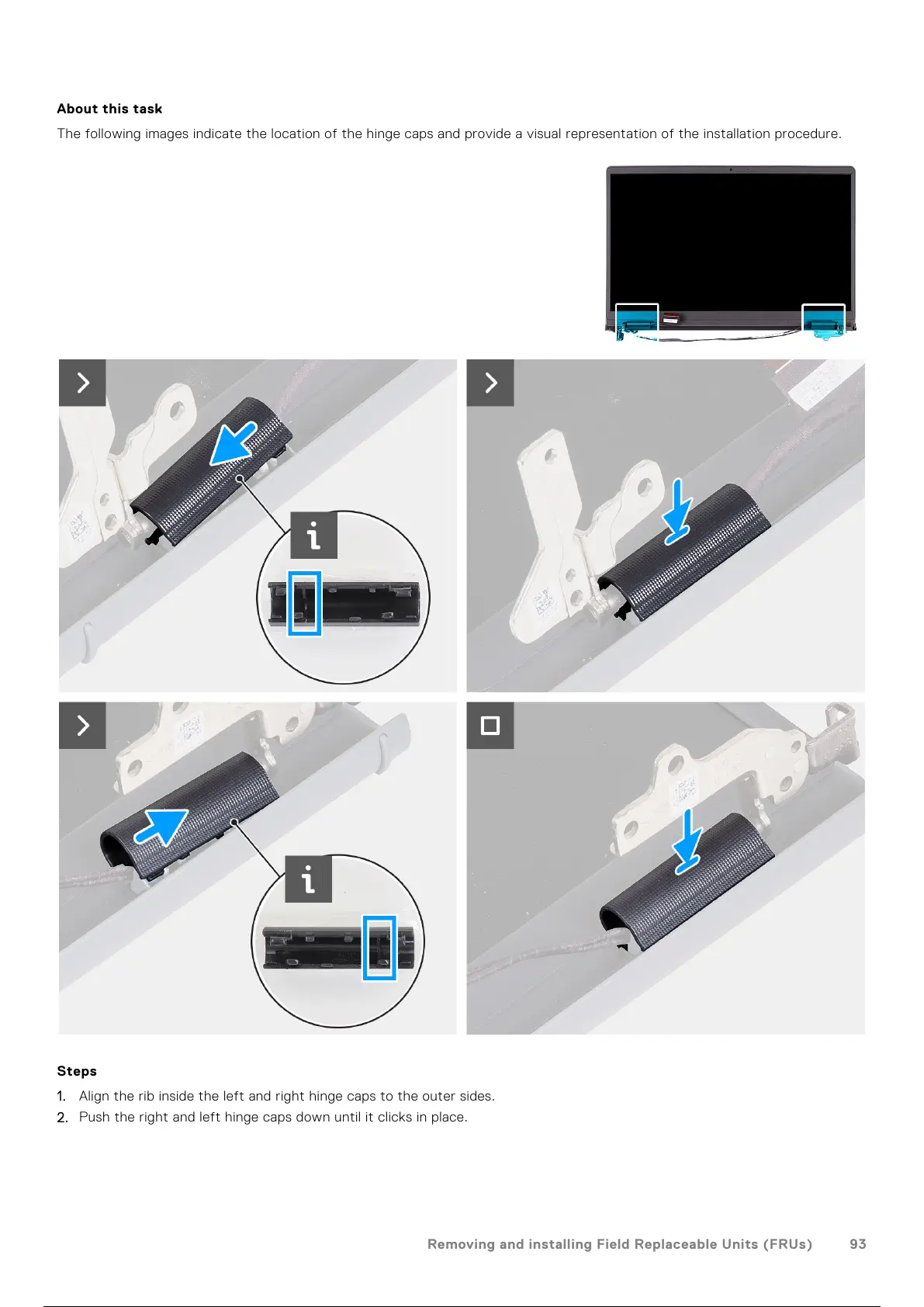

The following images indicate the location of the hinge caps and provide a visual representation of the installation procedure.
Steps
1. Align the rib inside the left and right hinge caps to the outer sides.
2. Push the right and left hinge caps down until it clicks in place.
