NOTE: Screw color may vary with the configuration ordered.

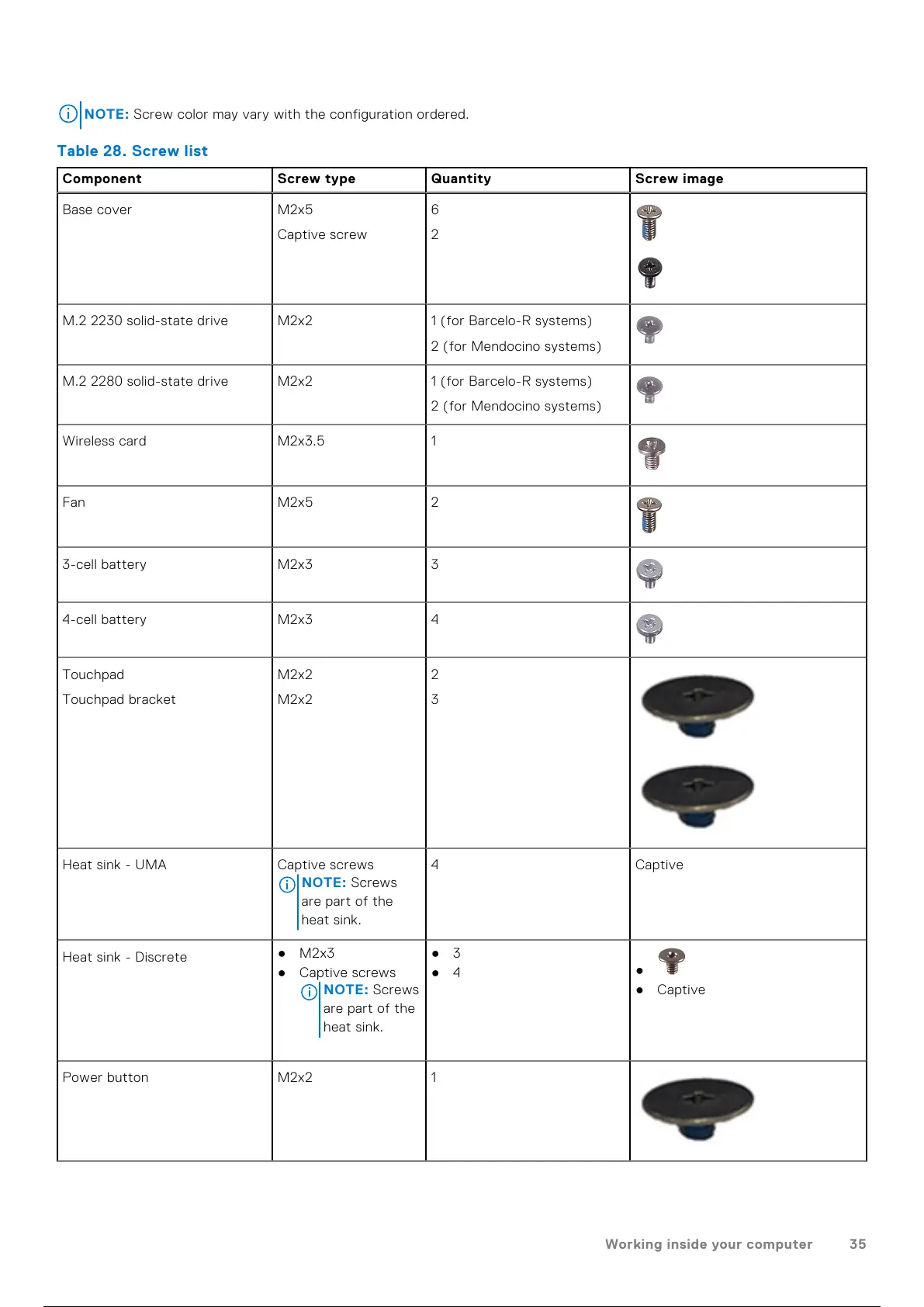

Table 28. Screw list
Component Screw type Quantity Screw image
Base cover M2x5
Captive screw
6
2
M.2 2230 solid-state drive M2x2 1 (for Barcelo-R systems)
2 (for Mendocino systems)
M.2 2280 solid-state drive M2x2 1 (for Barcelo-R systems)
2 (for Mendocino systems)
Wireless card M2x3.5 1
Fan M2x5 2
3-cell battery M2x3 3
4-cell battery M2x3 4
Touchpad
Touchpad bracket
M2x2
M2x2
2
3
Heat sink - UMA Captive screws
NOTE: Screws
are part of the
heat sink.
4 Captive
Heat sink - Discrete
● M2x3
● Captive screws
NOTE: Screws
are part of the
heat sink.
● 3
● 4
●
● Captive
Power button M2x2 1
