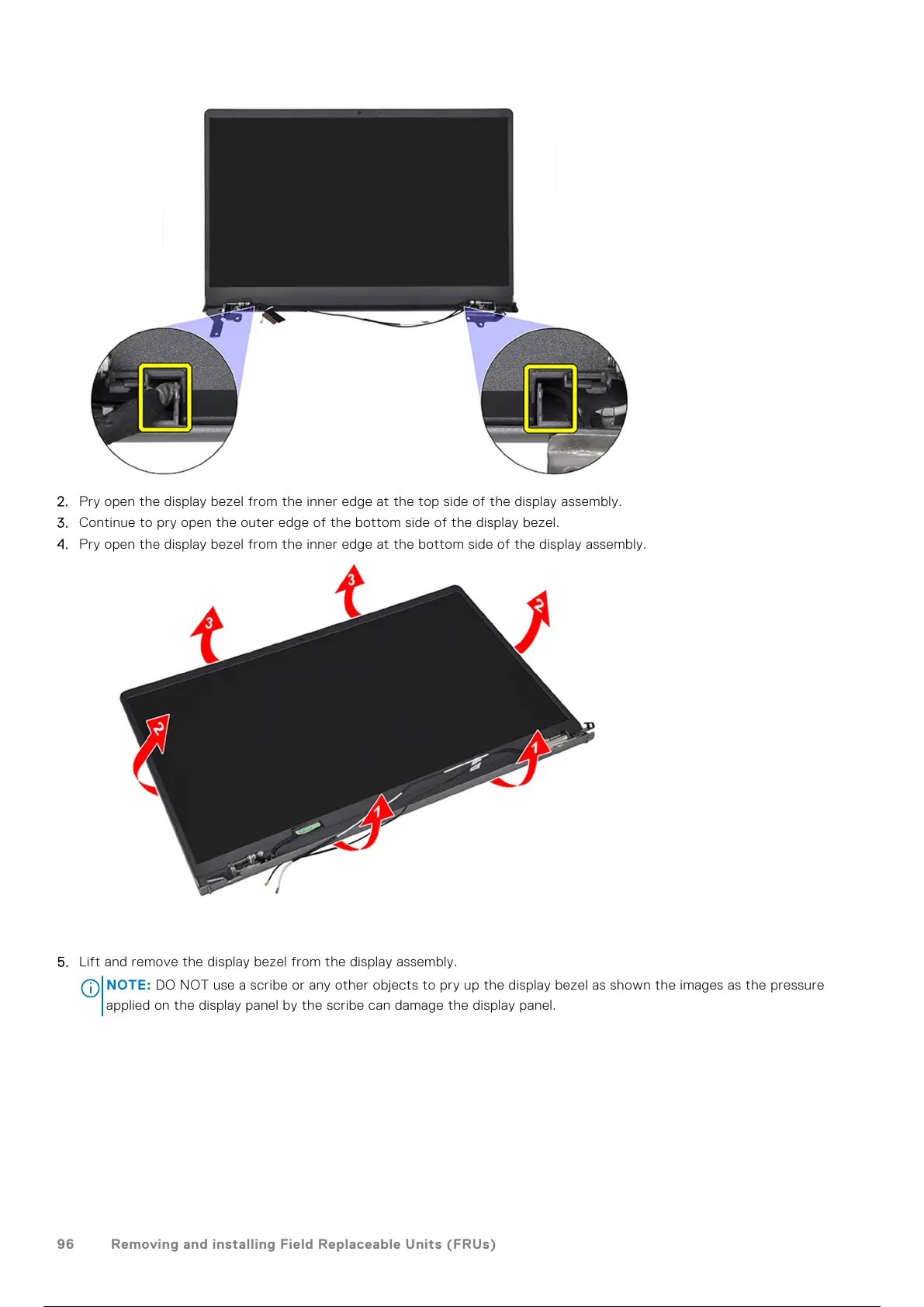

2. Pry open the display bezel from the inner edge at the top side of the display assembly.
3. Continue to pry open the outer edge of the bottom side of the display bezel.
4. Pry open the display bezel from the inner edge at the bottom side of the display assembly.
5. Lift and remove the display bezel from the display assembly.
NOTE:
DO NOT use a scribe or any other objects to pry up the display bezel as shown the images as the pressure
applied on the display panel by the scribe can damage the display panel.
96 Removing and installing Field Replaceable Units (FRUs)
