Removing and installing components
This section provides detailed information on how to remove or install the components from your computer.
Recommended tools
The procedures in this document require the following tools:
• Small flat blade screwdriver
• Phillips # 1 screwdriver
• Small plastic scribe
• Hex screwdriver
Cover
Removing the cover
1 Follow the procedure in Before Working Inside Your Computer.
2 To remove the cover:

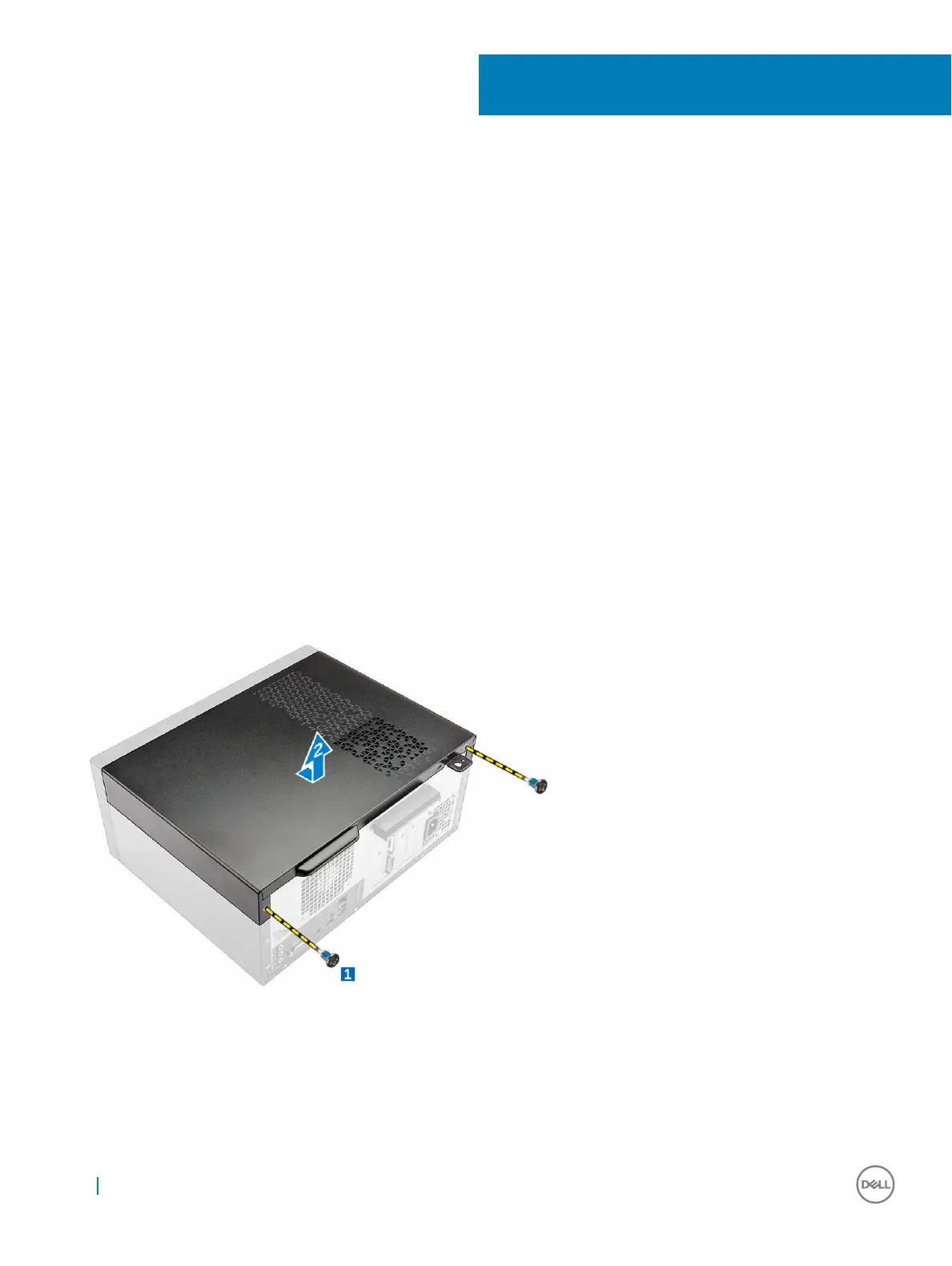

a Remove the 6-32xL6.35 screws that secure the cover to the computer [1].
b Slide the cover toward the back of the computer and lift it away from the computer [2].
Installing the cover
1 Place the cover on the computer and slide the cover forward until it clicks into place.
2 Tighten the 6-32xL6.35 screws to secure the cover to the computer.
3 Follow the procedure in After working inside your computer.
