1. Loosen the three captive screws on the base cover.
2. Remove the four screws (M2x6) that secure the base cover to the palm-rest and keyboard assembly.

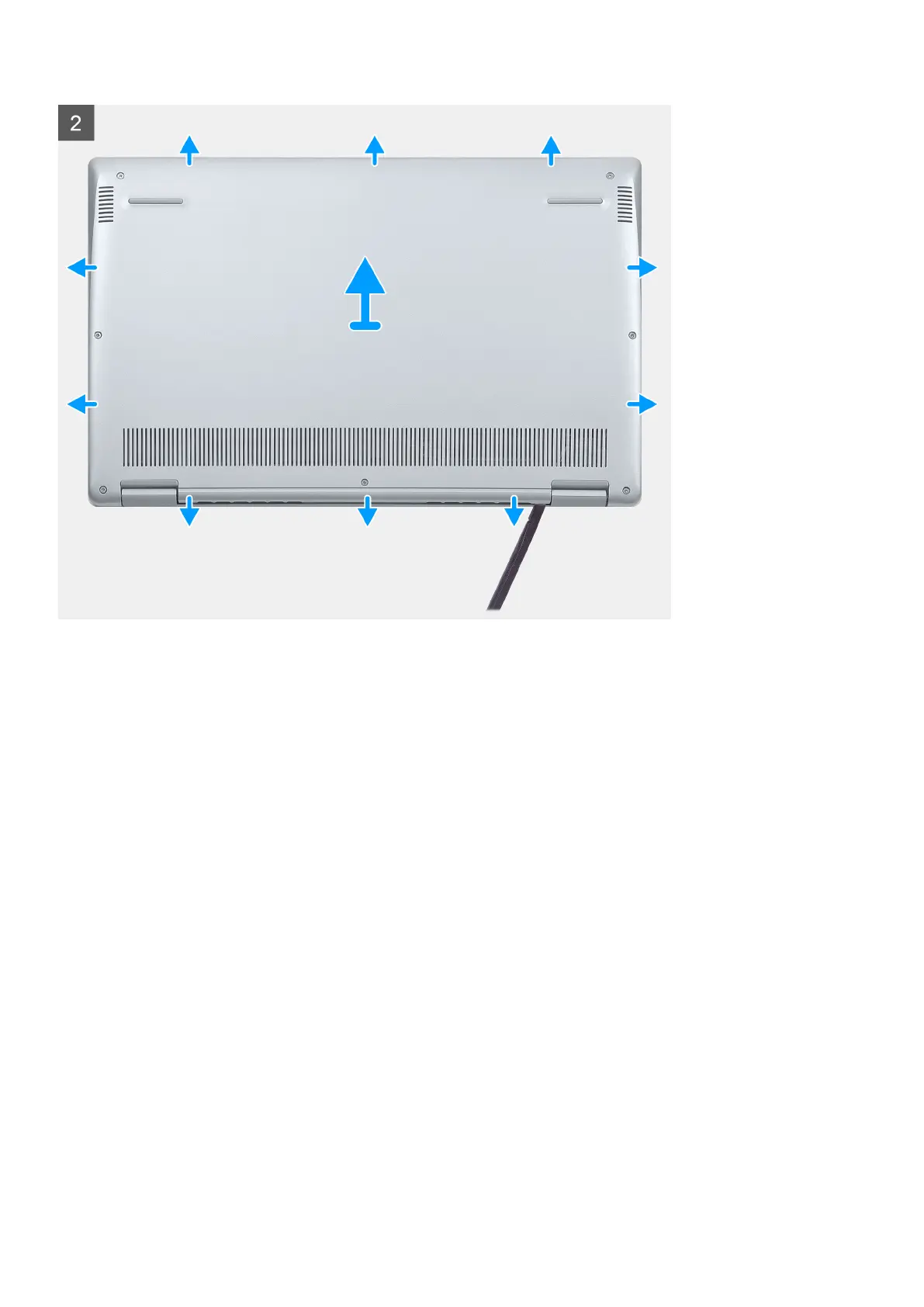

3. Using a plastic scribe, pry the base cover from the palm-rest and keyboard assembly.
4. Lift the base cover off the palm-rest and keyboard assembly.
Installing the base cover
If you are replacing a component, remove the existing component before performing the installation procedure.
The following image indicates the location of the base cover and provides a visual representation of the installation procedure.
12
Removing and installing components
