1. Disconnect the battery cable from the system board.
2. Remove the two screws (M2x2) that secure the battery to the palm-rest and keyboard assembly.
3. Remove the screw (M1.6x4) that secures the battery to the system board and palm-rest and keyboard assembly.
4. Lift the battery off the palm-rest and keyboard assembly.
Installing the battery
If you are replacing a component, remove the existing component before performing the installation procedure.

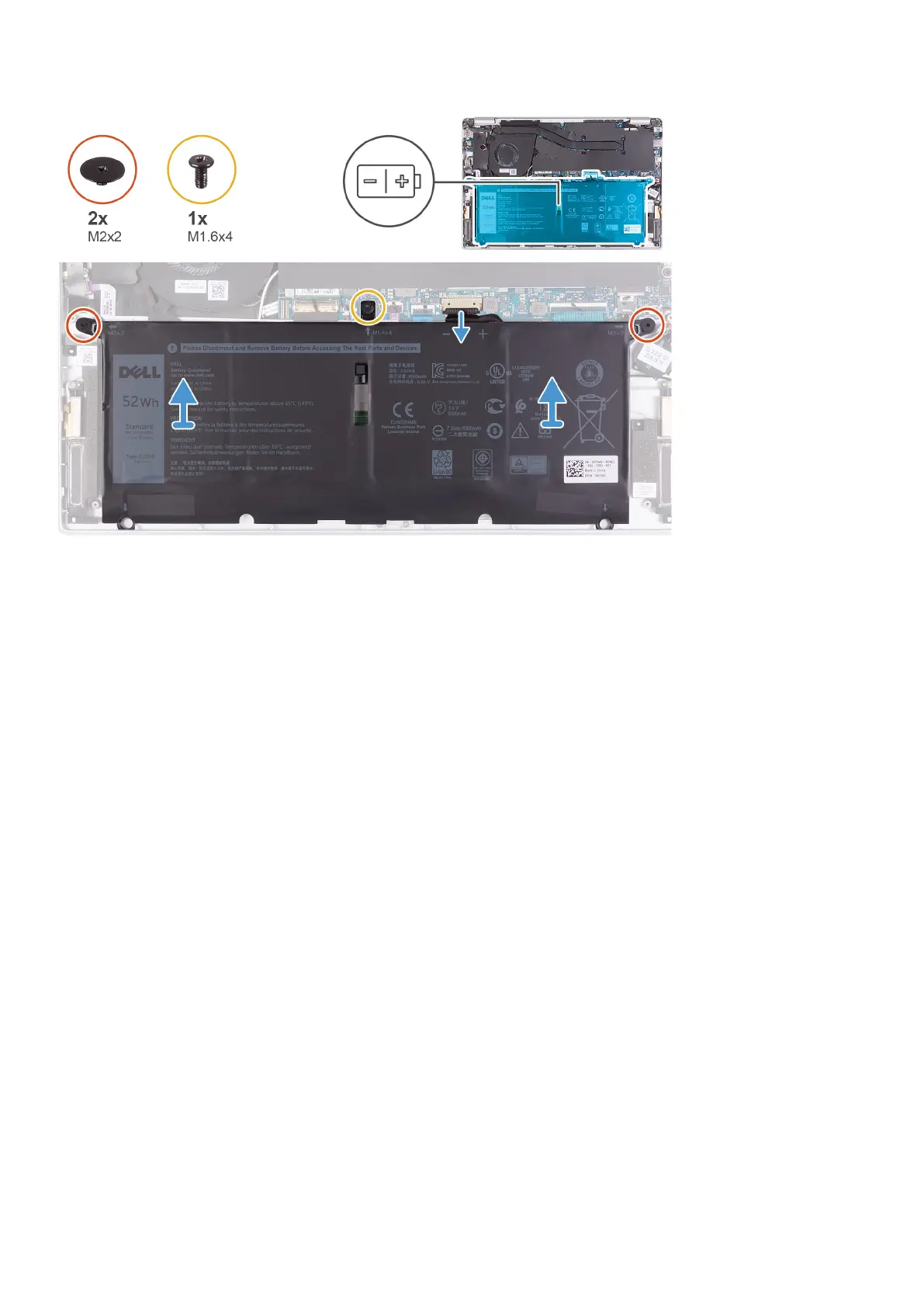

The following image indicates the location of the battery and provides a visual representation of the installation procedure.
