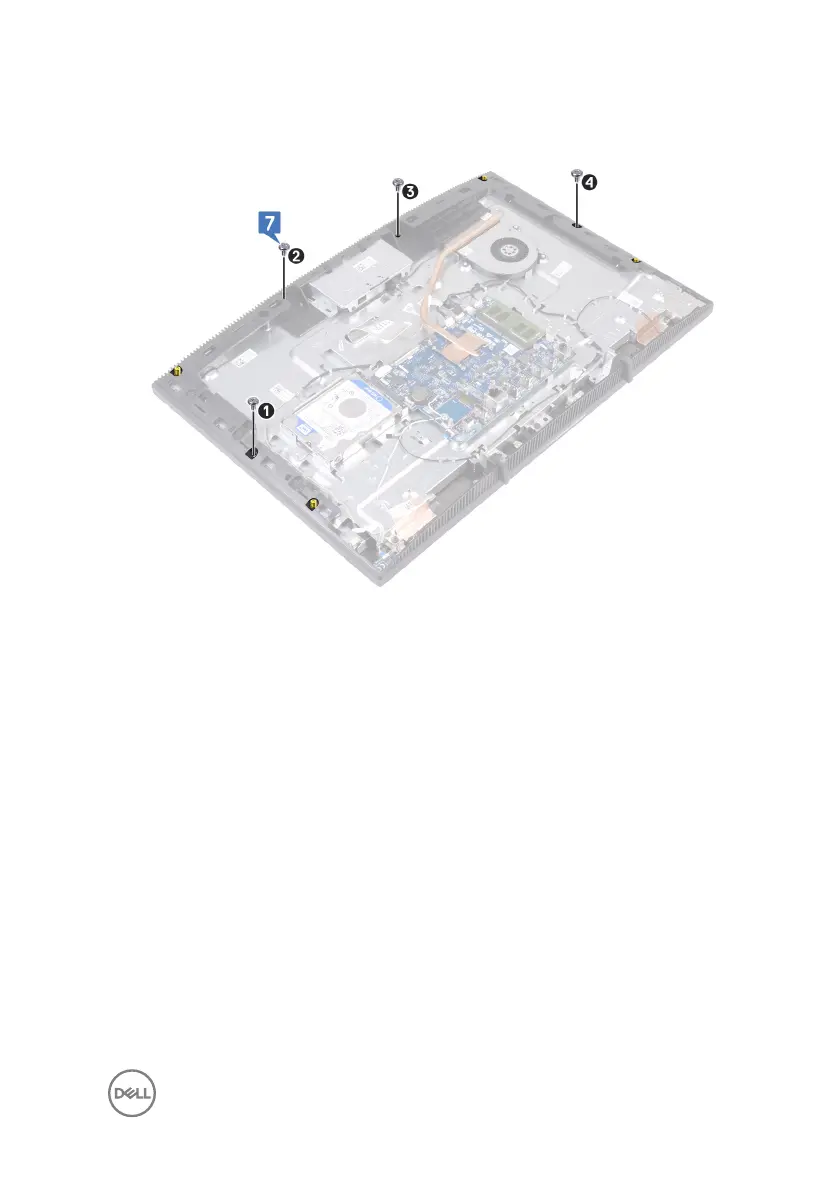

7 In sequential order indicated on the image, replace the four screws (M3x5) that

secure the display panel to the display-assembly base.
