Removing and Installing Parts 85
Cards
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
Your Dell™ computer provides the following slots for PCI and PCI Express cards:
• Three PCI card slots
• Two PCI Express x16 card slots (can be used in a dual-graphics configuration)
• One PCI Express x8 card slot
• One PCI Express x1 card slot
NOTE: If a graphics card is installed in each of the PCI Express x16 card slots in the dual-graphics configuration,
the PCI Express x1 and one PCI card slot are not accessible for use.

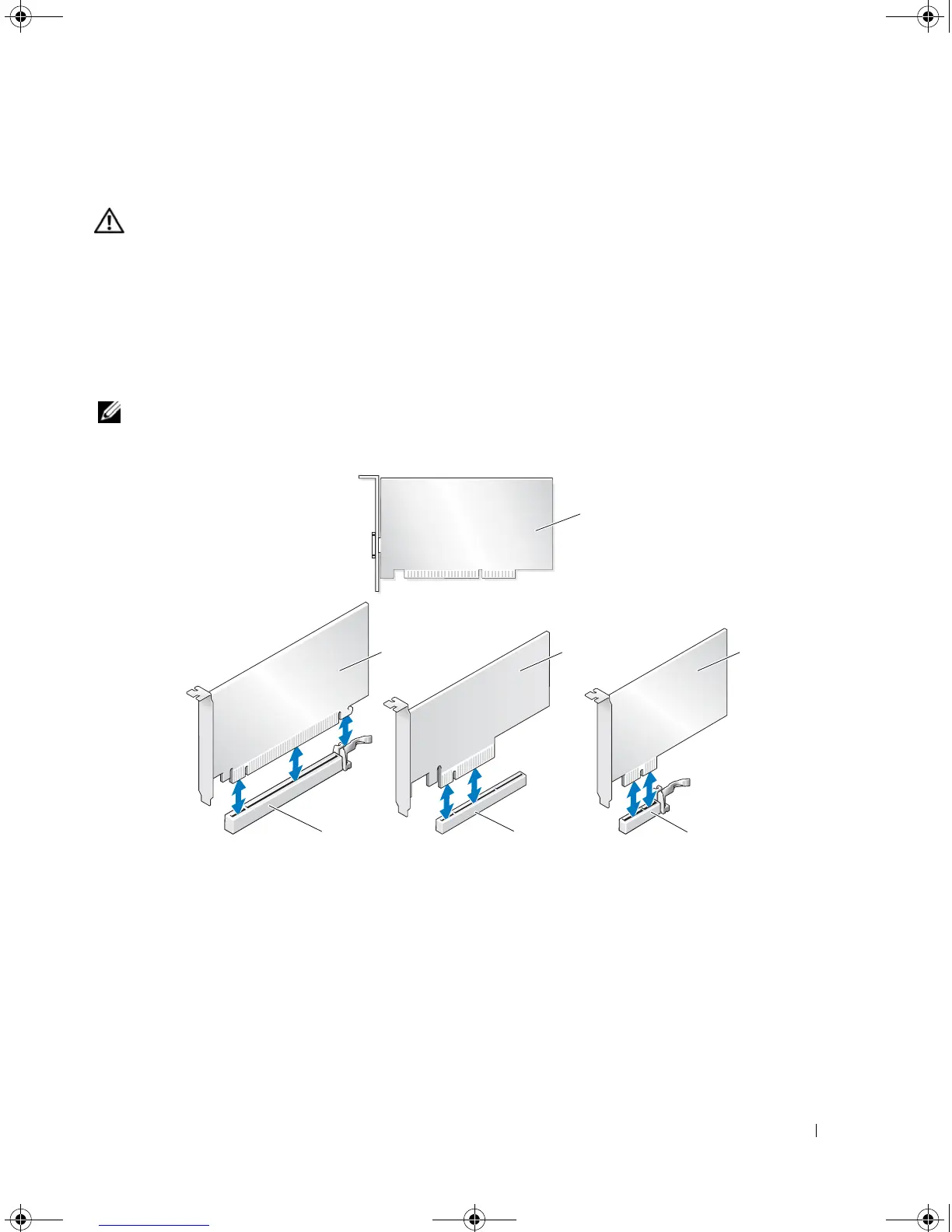

1 PCI card 2 PCI Express x16 card 3 PCI Express x16 card slot
4 PCI Express x8 card 5 PCI Express x8 card slot 6 PCI Express x1 card
7 PCI Express x1 card slot
4
1
62
3
5
7
