Steps
1. Place the computer on its side with the left side facing up.
2. Disconnect the power-button cable from the system board.
3. Remove the screw (#6-32) that secures the power-button bracket to the chassis.
4. Push the power button and it's bracket through the slot on the chassis and thread the power-button cable through the slot
on the chassis.
5. Press the release tabs on the power button to release it from the power-button bracket.
6. Thread the power-button cable through the slot on the power-button bracket and remove the power button and its cable
from the power-button bracket.
Installing the power button
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

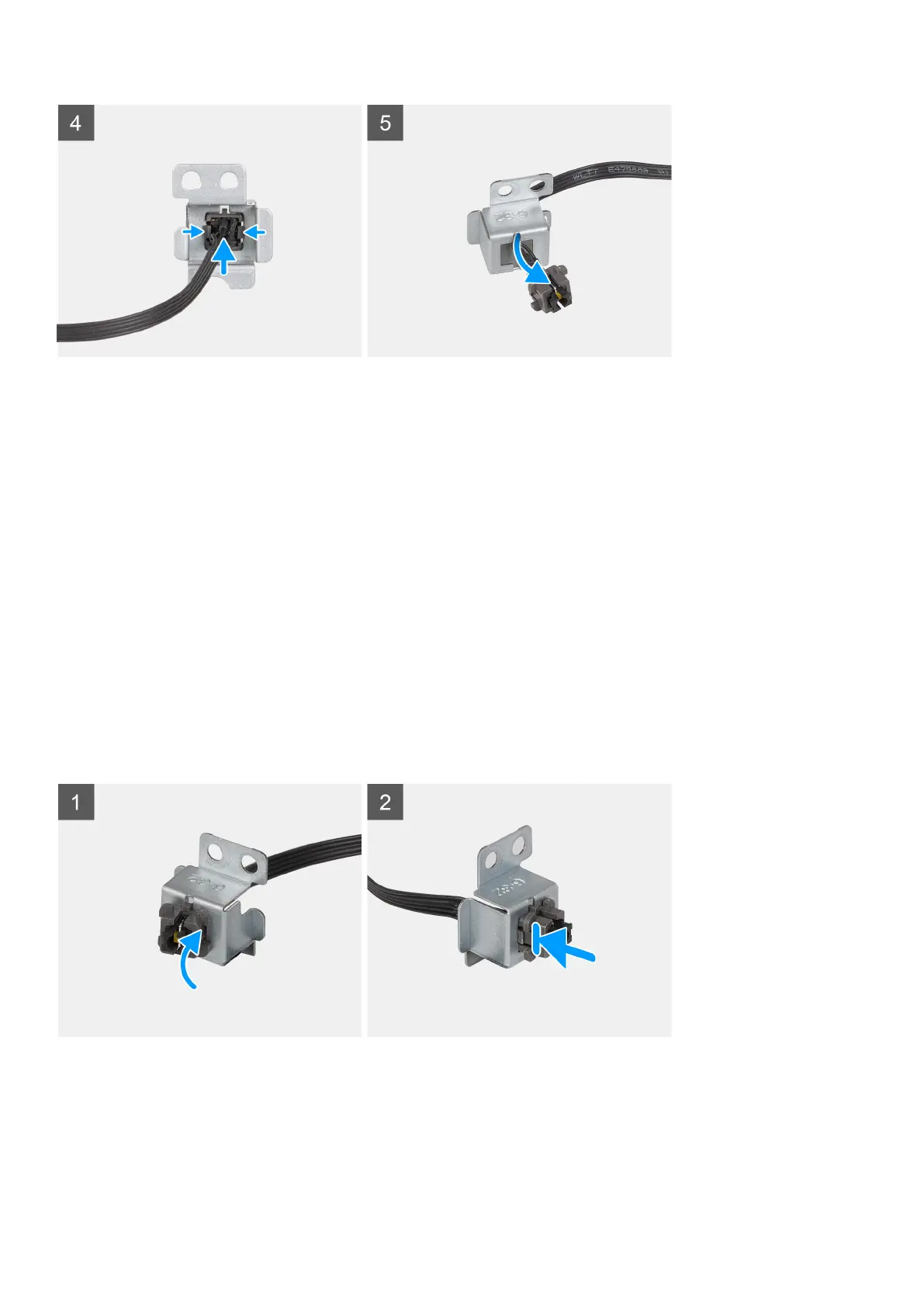

The following image(s) indicate the location of the power button and provides a visual representation of the installation
procedure.
