About this task
NOTE: You may install up to two M.2 2230/2280 solid-state drives into the two M.2 solid-state drive slots on the system
board.

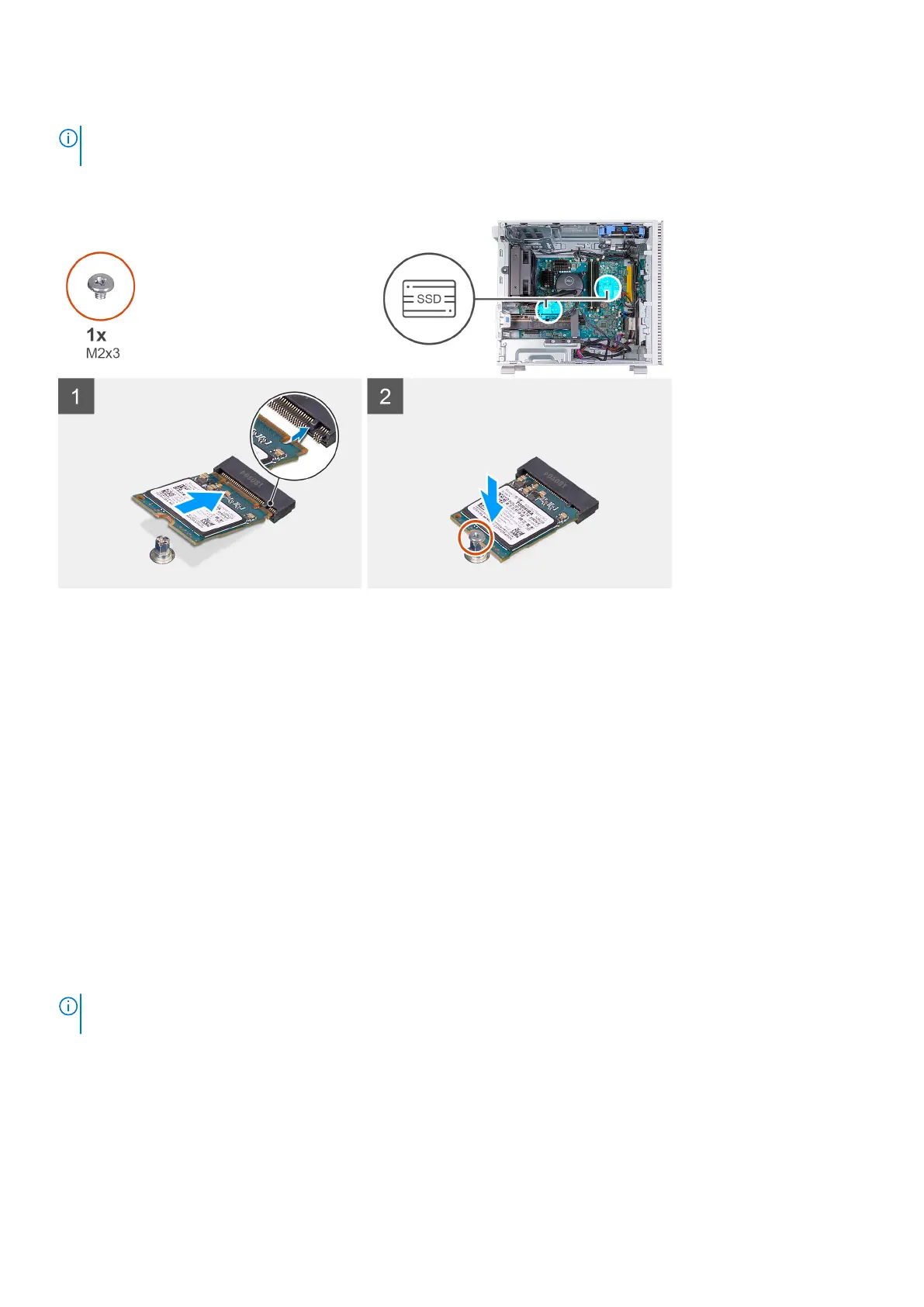

The following image(s) indicate the location of the 2230 solid-state drive and provides a visual representation of the installation
procedure.
Steps
1. Align the notch on the 2230 solid-state drive with the tab on the M.2 card slot on the system board.
2. Slide the 2230 solid-state drive into the M.2 card slot on the system board.
3. Replace the screw (M2x3) that secures the 2230 solid-state drive to the system board.
4. Place the computer in an upright position.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
Removing the 2280 solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
About this task
NOTE:
Depending on the configuration ordered, your computer may have up to two M.2 2230/2280 solid-state drives
installed in the two M.2 solid-state drive slots on the system board.
The following image(s) indicate the location of the 2280 solid-state drive and provides a visual representation of the removal
procedure.
Removing and installing components
31
