About this task

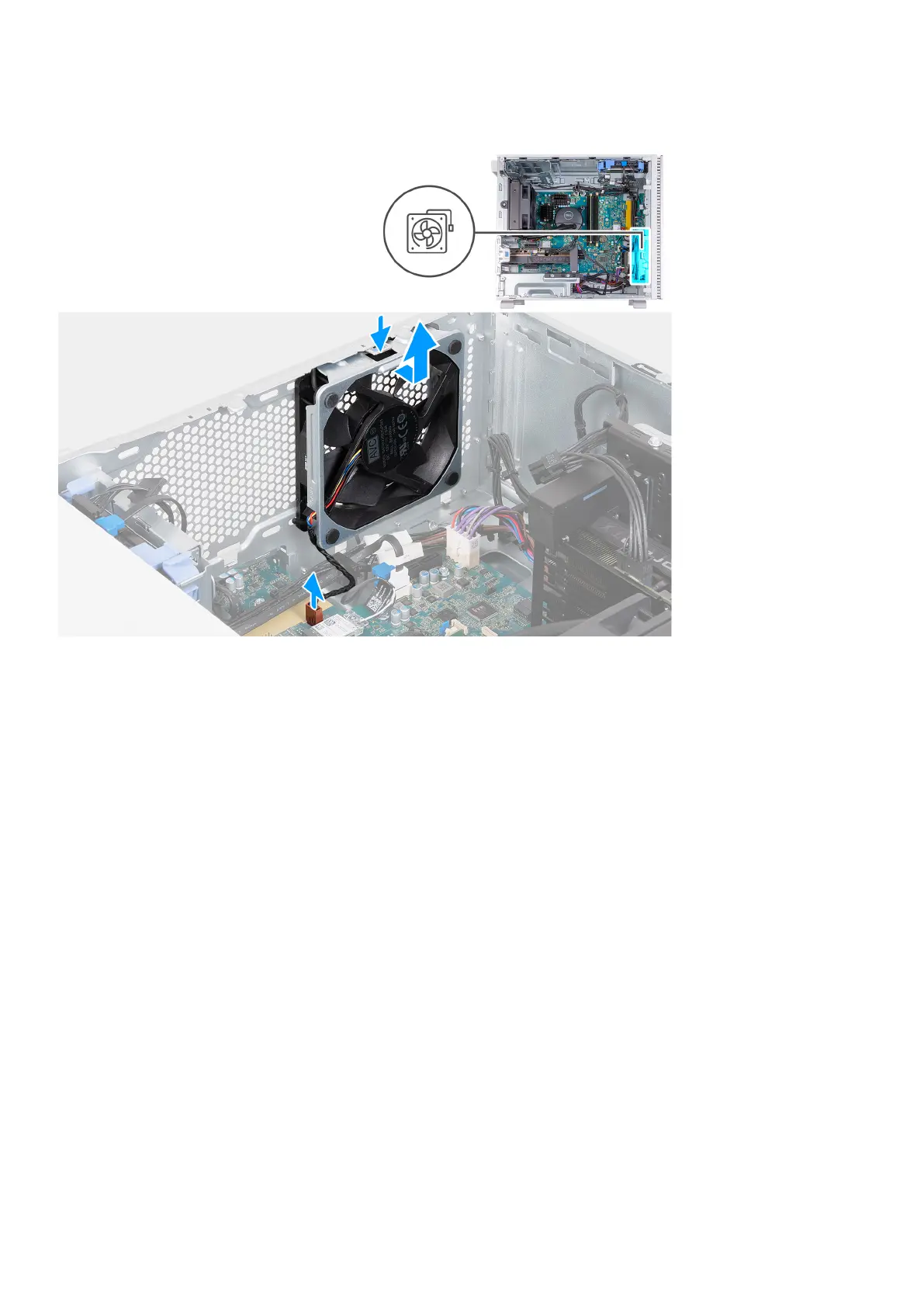

The following image(s) indicate the location of the chassis fan and provides a visual representation of the removal procedure.
Steps
1. Place the computer on its side with the left side facing up.
2. Disconnect the rear-chassis fan cable from the system board.
3. Press down on the securing tab to release the rear-chassis fan from the chassis.
4. Lift the rear-chassis fan off the chassis.
Installing the chassis fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the chassis fan and provides a visual representation of the installation procedure.
38
Removing and installing components
