Burners
They can be removed and washed only with
soapy water.
Detergents can be used but must not be
abrasive or corrosive.
Do not use abrasive sponges or pads.
Do not put in dishwasher.
After each cleaning, make sure that the burner-
caps, as well as the burners, have been well
wiped off and CORRECTLY POSITIONED.
It is essential to check that the burner flame
distributor F and the cap C has been correctly
positioned (see fig. 9) - failure to do so can
cause serious problems.
Check that the electrode “S” (fig. 9) is always
clean to ensure trouble-free sparking.
Note:
The electrode S must be very carefully
cleaned.
To avoid damage to the electric ignition
do not use it when the burners are not in
place.
F
C
S

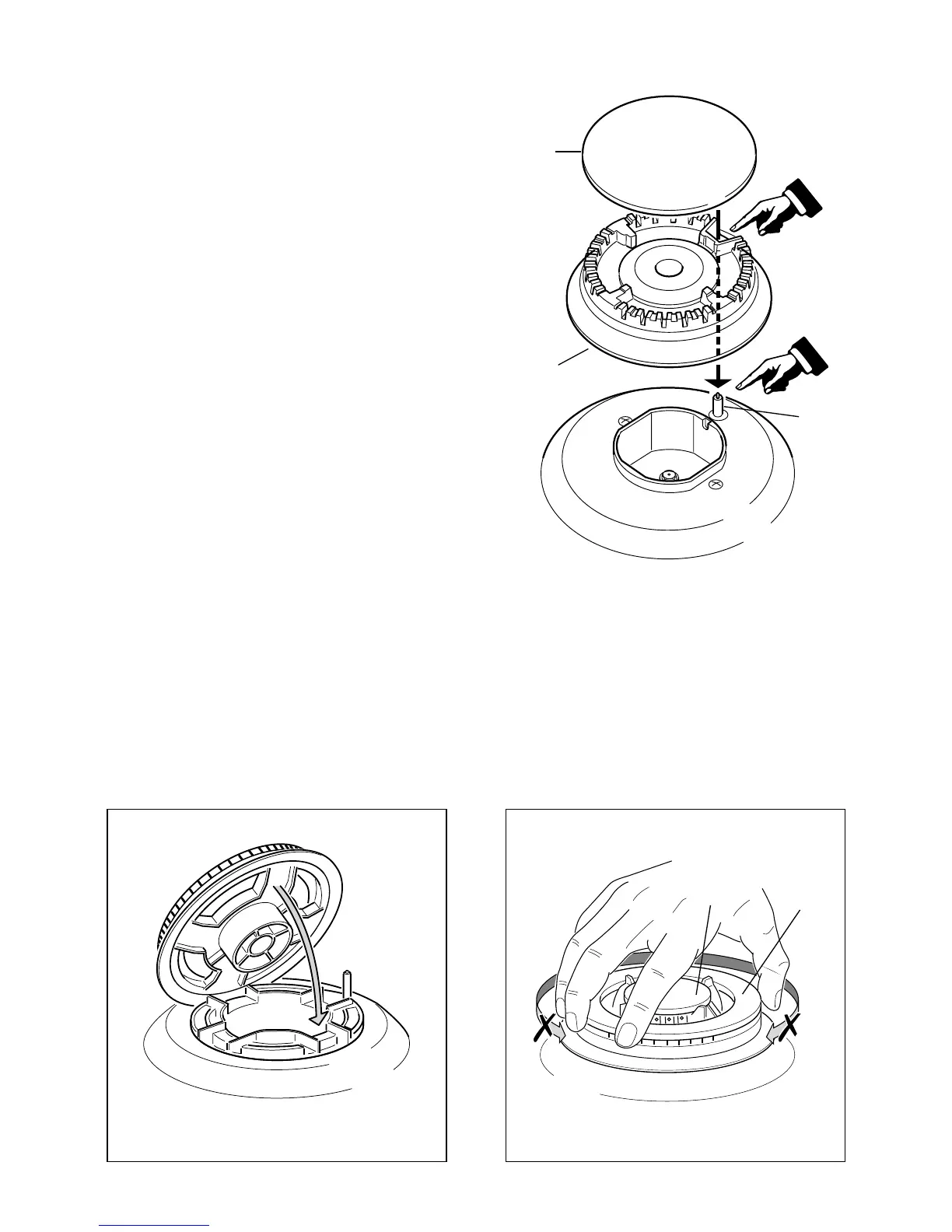

Triple ring burner
The triple ring burner must be correctly positioned (see fig. 10); the burner rib must be
enter in their logement as shown by the arrow.
The burner correctly positioned must not rotate (fig. 11).
Then position the cap A and the ring B (fig. 11).
Fig. 9
19
