10

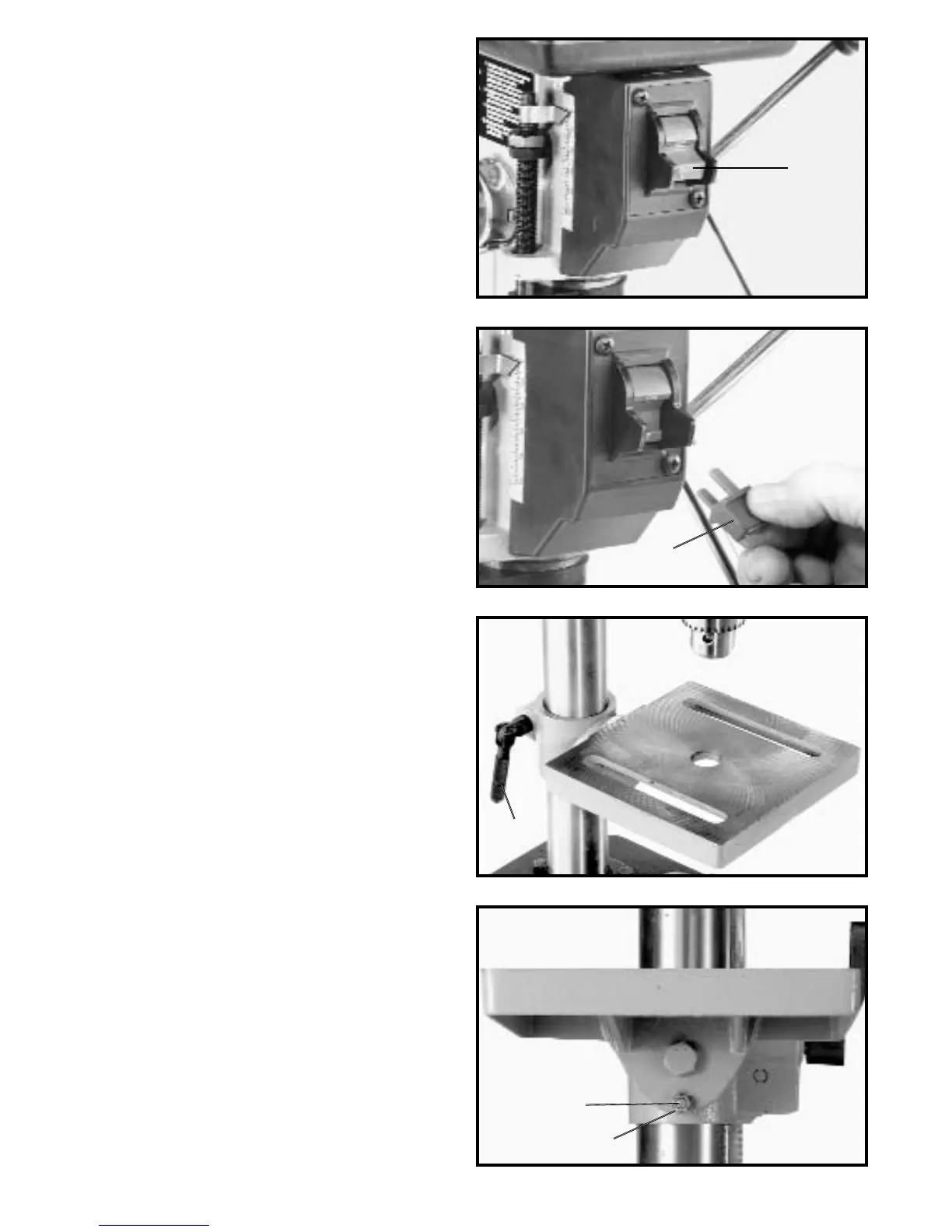

Fig. 18
Fig. 19
Fig. 20
Fig. 21
LOCKING SWITCH IN
THE “OFF” POSITION
When the tool is not in use, the switch should be locked
in the “OFF” position to prevent unauthorized use of the
tool. To lock the switch in the “OFF” position, grasp the
switch toggle (B) and pull it out of the switch, as shown
in Fig. 19. With the switch toggle (B) removed, the switch
will not operate. However, should the switch toggle be
removed while the drill press is operating, the switch can
be turned “OFF” once, but cannot be restarted without
inserting the switch toggle (B).
TABLE ADJUSTMENTS
1. The table can be raised or lowered on the drill press
column by loosening the table clamp handle (A) Fig. 20.
Move the table to the desired position on the column and
tighten table clamp handle (A).
2. The table can be tilted right or left by pulling out and
removing table alignment pin (B) Fig. 21. NOTE: If pin (B)
is difficult to remove, turn nut (C) clockwise to pull pin out
of casting.
SWITCH
The switch (A) Fig. 18, is located on the front of the drill
press head. To turn the drill press “ON” move the switch
to the up position. To turn the drill press “OFF” move the
switch to the down position.
A
B
A
B
C
