4
UNPACKING
Your drill press is shipped complete in one container. Carefully unpack the drill press and all loose
items from the container. Figure 2 illustrates the drill press and all loose items supplied with the
machine. WARNING: FOR YOUR OWN SAFETY, DO NOT CONNECT THE DRILL PRESS
TO THE POWER SOURCE UNTIL THE MACHINE IS COMPLETELY ASSEMBLED AND YOU
HAVE READ AND UNDERSTOOD THE ENTIRE INSTRUCTION MANUAL.

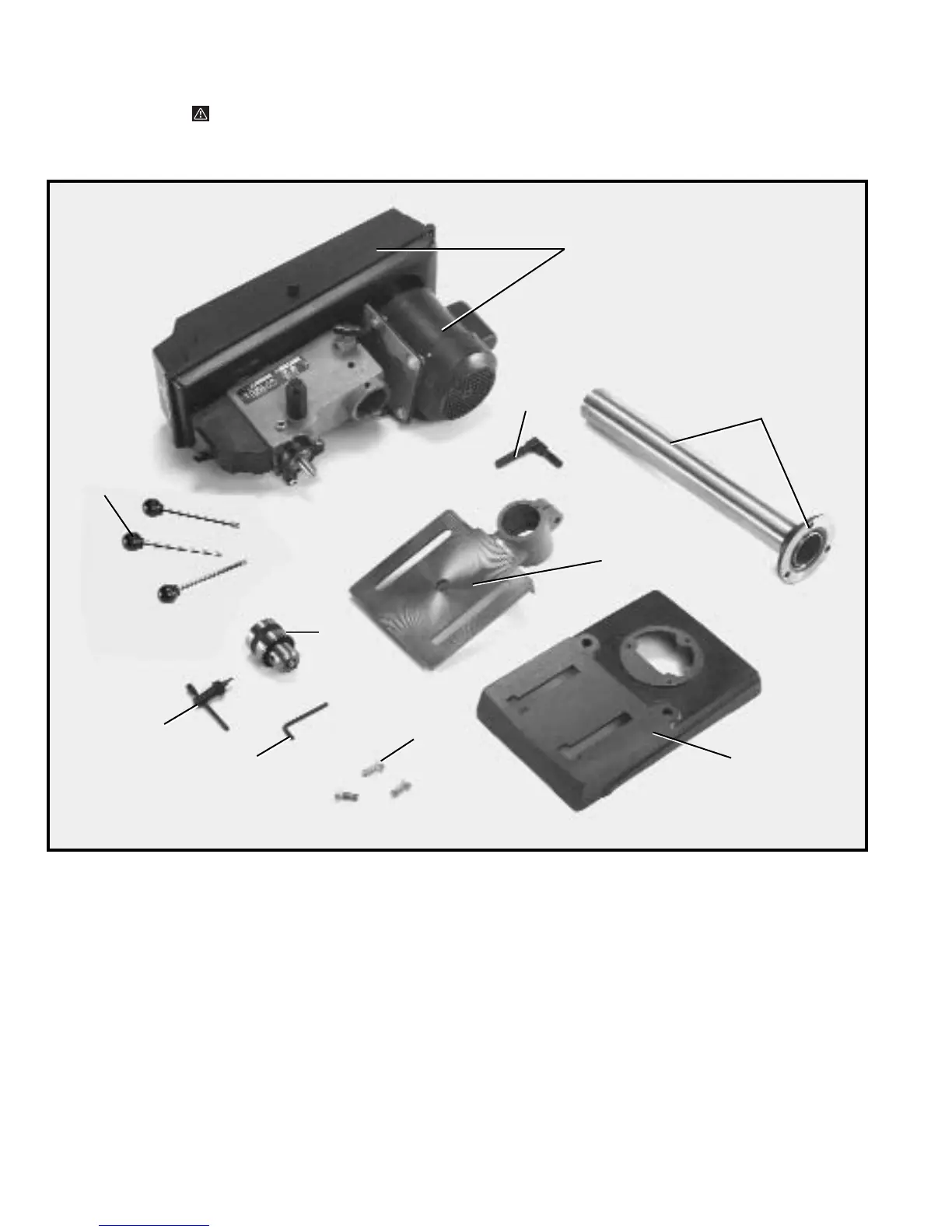

Fig. 2
1 - Drill Press Head and Motor
2 - Column and Base Flange
3 - Base
4 - Table
5 - Clamp Handle
6 - Pinion Shaft Handles (3)
7 - Chuck
8 - Chuck Key
9 - Wrench
10 - 20mm (3/4" ) long Hex Head Cap Screws (3)
5
4
3
10
9
7
8
6
2
1
