11. IMPORTANT: Make certain the spindle taper (Q) Fig.
15, and tapered hole in chuck (R) are clean and free of
any grease, lacquer or rust preventive coatings. NOTE:
Household oven cleaner can effectively remove any
substance from the spindle and chuck; however,
carefully follow the manufacturer's safety rules
concerning its use.
12. IMPORTANT: OPEN THE CHUCK JAWS AS WIDE
AS POSSIBLE MAKING SURE THE CHUCK JAWS
ARE UP INSIDE CHUCK.

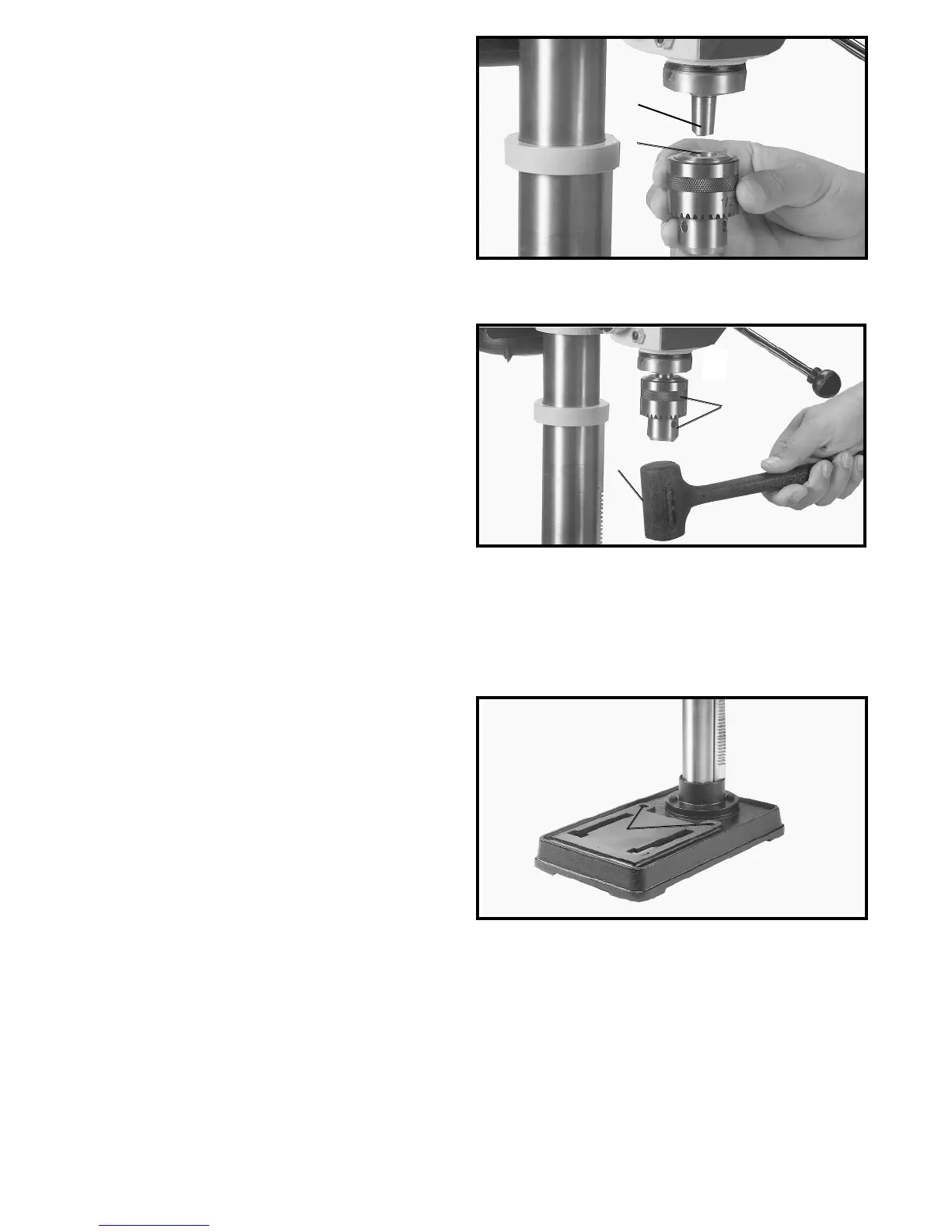

13. Carefully drive chuck (S) Fig. 16, onto the spindle
with a block of wood and hammer, or a rubber mallet (T)
as shown. This will seat the chuck properly on the
spindle. IMPORTANT: To avoid damage to the chuck,
NEVER drive the chuck onto the spindle with a metal
hammer.
FASTENING DRILL PRESS TO
SUPPORTING SURFACE
If during operation there is any tendency for the drill
press to tip over, slide or walk on the supporting surface,
the drill press base must be secured to the supporting
surface with fasteners through the two holes (A) Fig. 17,
located in the drill press base.
Fig. 15
Fig. 16
R
Q
S
T
Fig. 17
A
