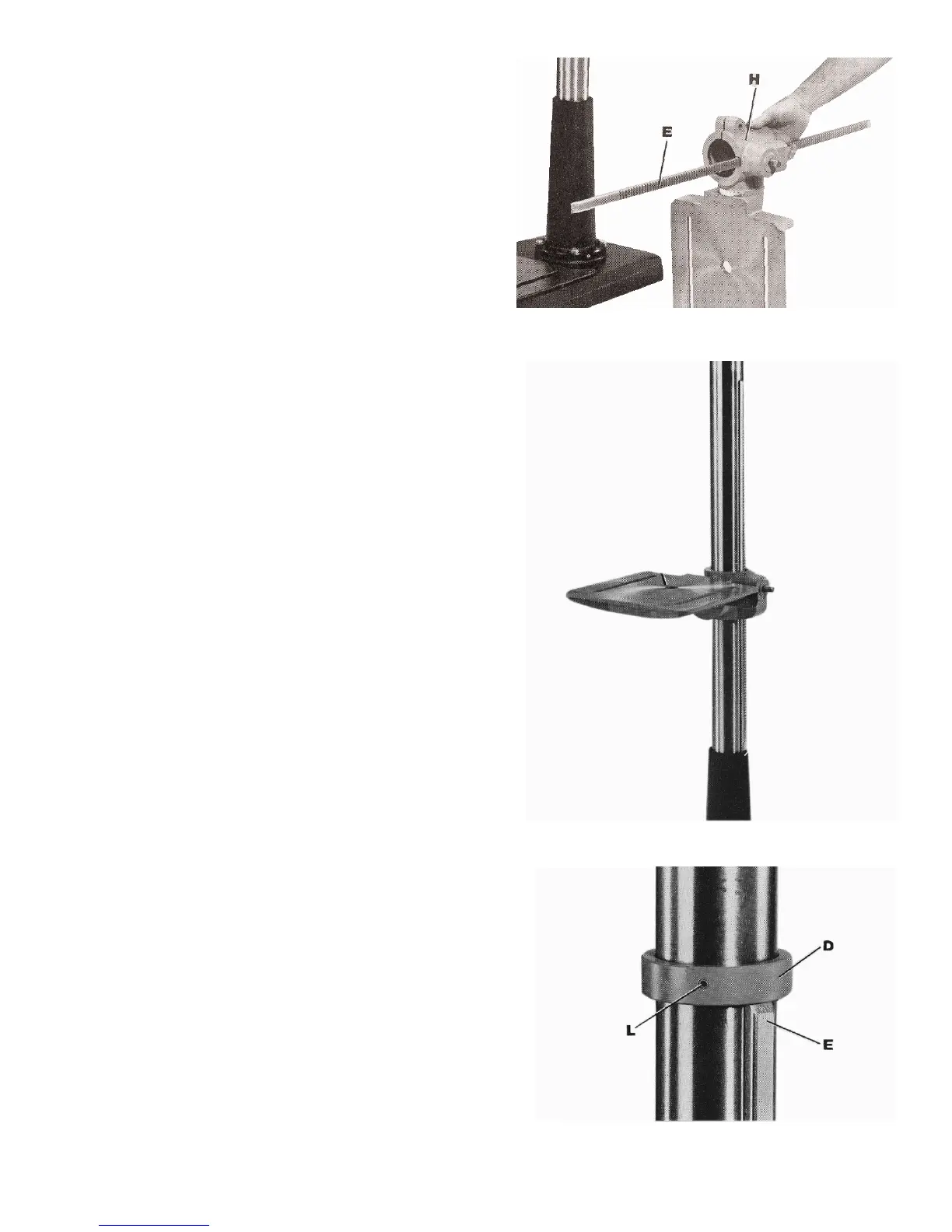

4. Insert raising rack (E) Fig. 5, which was removed
in STEP 2, into groove in table bracket (H) making
sure gear inside table bracket is engaged with teeth
of raising rack.
Fig. 7
Fig. 6
Fig. 5
5. Slide raising rack (E) Fig. 6, and table (J) onto
drill press column, as shown. Make sure bottom of
raising rack (E) is engaged with flange (K) on base of
column.
6. Re-assemble ring (D) Fig. 7, which was removed in
STEP 2 to column. IMPORTANT: Bottom of ring (D) MUST
NOT be pushed all the way down onto top of raising rack
(E). MAKE SURE top of raising rack (E) is under bottom of
ring (D) and that there is enough clearance to allow rack (E)
to rotate around the column without binding. Then tighten
set screw (L) BEING CAREFUL NOT TO OVERTIGHTEN.
