3. IMPORTANT: To prevent arbor nut from spinning when blade stops, place the 1-1/16" wrench (C) Fig. 23 on
flats of arbor and firmly tighten arbor nut (A) with the 1-5/8" box end spanner wrench (D) (left handed
thread). Firmly tighten set screw (E).
4. Remove screw (F) Fig. 25 that attaches inside leaf guard (G) to rear of blade guard (H).
5. Assemble blade guard (H) Fig. 25, to motor housing. Position bracket (J) over motor housing and blade guard
flange (K) and loosely fasten 1/2-13 hex nut (L) with wrench supplied.
6. Place leaf guard (G) Fig. 26 in place on blade guard (H) and fasten with special shoulder bolt (F).
7. Assemble anti-kickback rod (M) Fig 27 to blade guard (H), and fasten in place with thumb screw (N). NOTE: It will
be necessary to tilt the blade guard (H) to the rear in order to assemble anti-kickback rod (M). Tighten nut (L) Fig.
25.

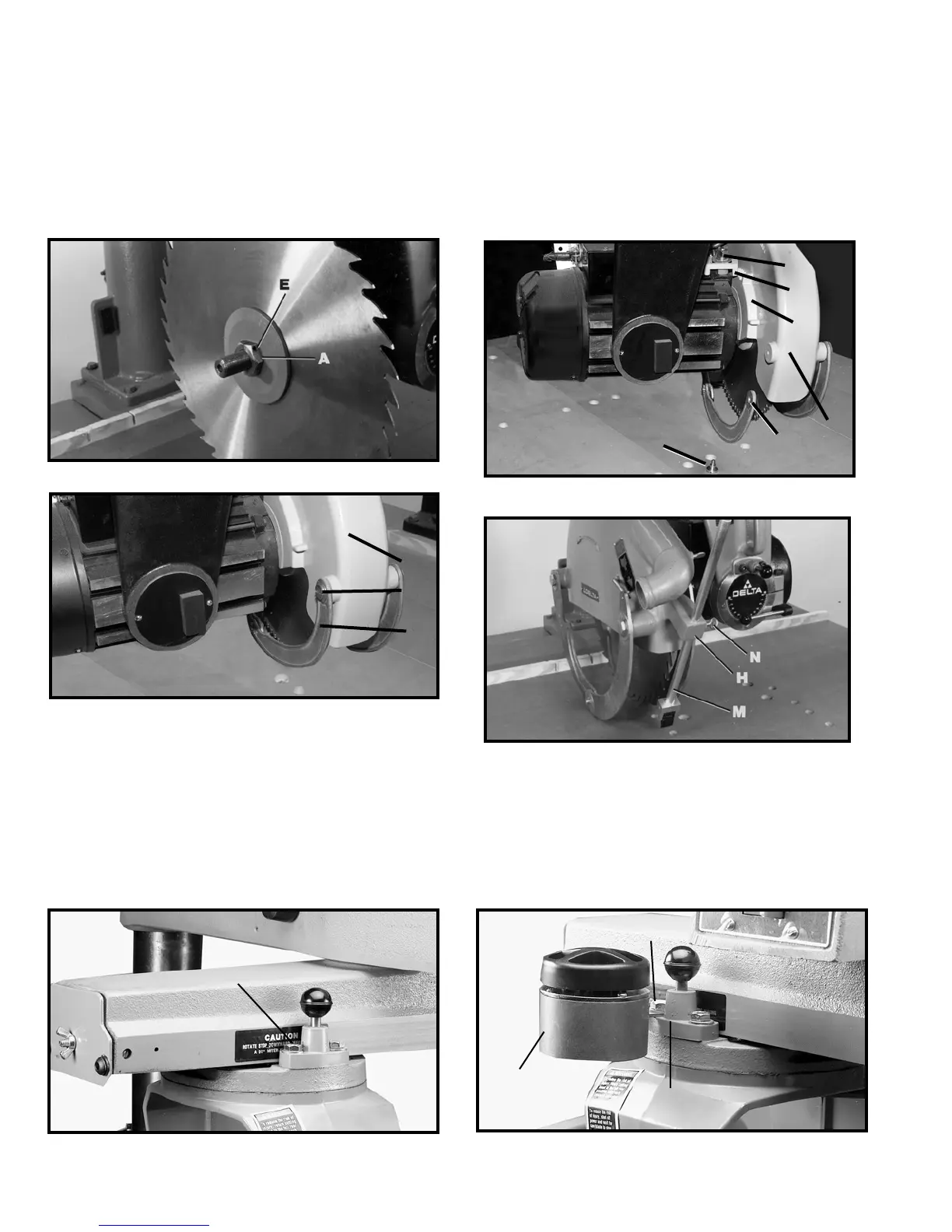

Fig. 24
Fig. 25
Fig. 26
Fig. 27
CUTTERHEAD RETURN SPRING
1. Remove fence from the table and return the cuttinghead assembly to rear of track arm. Rotate track arm 90
degrees to the right.
2. Remove left screw (B) Fig. 28 from yoke assembly.
3. Assemble reel (C) Fig. 29 to yoke assembly (D) and fasten with screw (B), which was removed in STEP 2.
Fig. 28
B
Fig. 29
C
B
D
G
F
H
K
L
J
G
H
F
