13

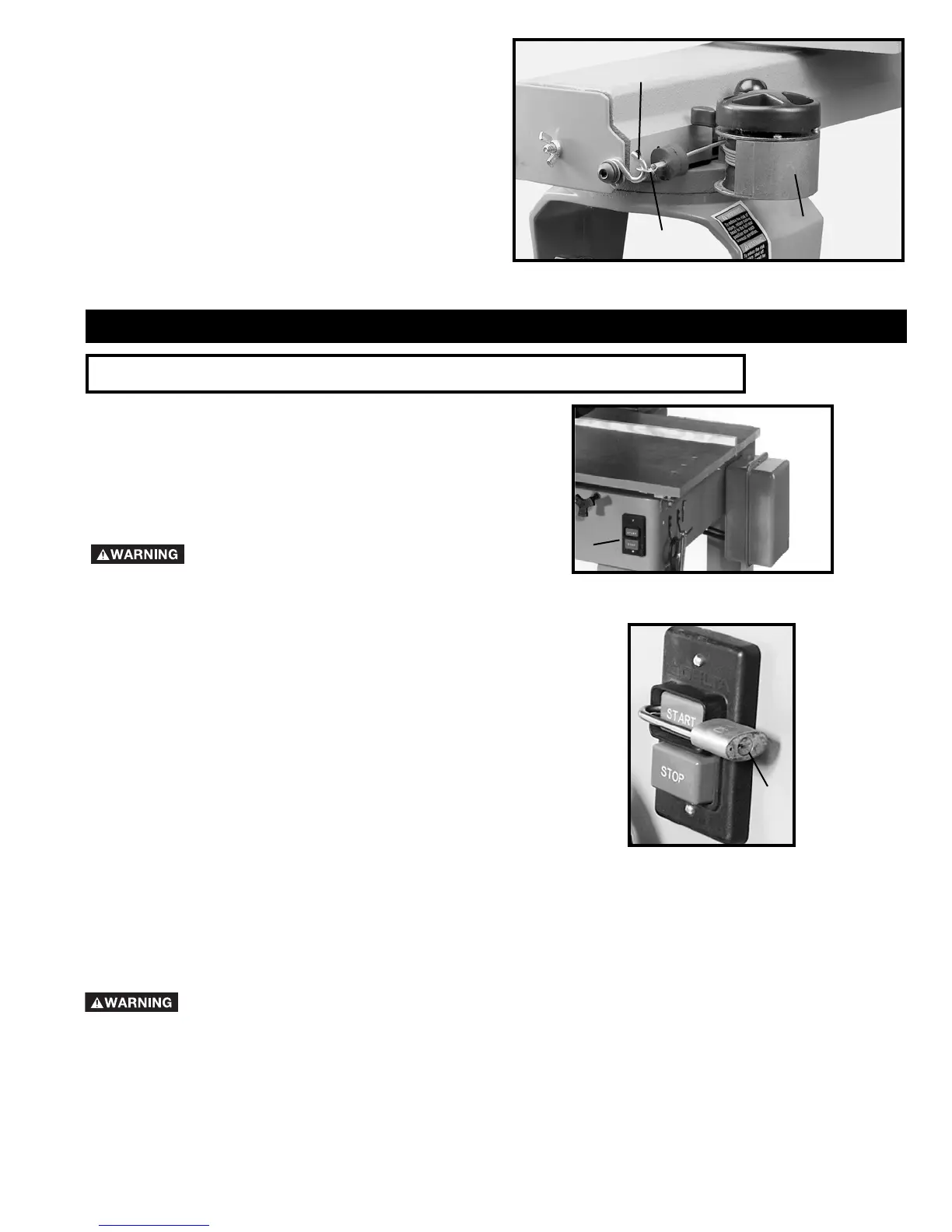

4. Attach eyelet (H) Fig. 30 of cable assembly (C) to
"S" bracket (E).
5. NOTE: To prevent premature wear of return reel
cable, position the return reel so that the cable does
not rub against the wall of the return reel.
Fig. 30
H
C
E
Fig. 30B
B
OPERATION
STARTING AND STOPPING SAW
1. The on/off switch (A) Fig. 30A is located on the front
of the saw. To turn the machine on, push the “START”
button.
2. To turn the machine “OFF”, push the “STOP” button.
MAKE SURE THAT THE SWITCH IS IN
THE “OFF” POSITION BEFORE WIRING
THE MACHINE. IN THE EVENT OF A POWER FAILURE,
PUSH THE STOP BUTTON. AN ACCIDENTAL START-
UP CAN CAUSE INJURY.
LOCKING SWITCH IN “OFF” POSITION
IMPORTANT: When the machine is not in use, the switch
should be locked in the “OFF” position to prevent
unauthorized use, using a padlock (B) Fig. 30B with a 3/16"
diameter shackle.
OPERATIONAL CONTROLS AND ADJUSTMENTS
Fig. 30A
A
Every Delta Radial Arm Saw is thoroughly tested, inspected and accurately aligned before leaving the factory and,
when delivered, is ready for operation after it is assembled. However, regardless of the care with which this or any piece
of fine machinery is manufactured, inspected and shipped, it is possible that rough handling in shipment, or wear over
a period of time may make minor adjustments necessary.
ALWAYS DISCONNECT MACHINE FROM POWER SOURCE BEFORE MAKING ANY ADJUST-
MENTS.
