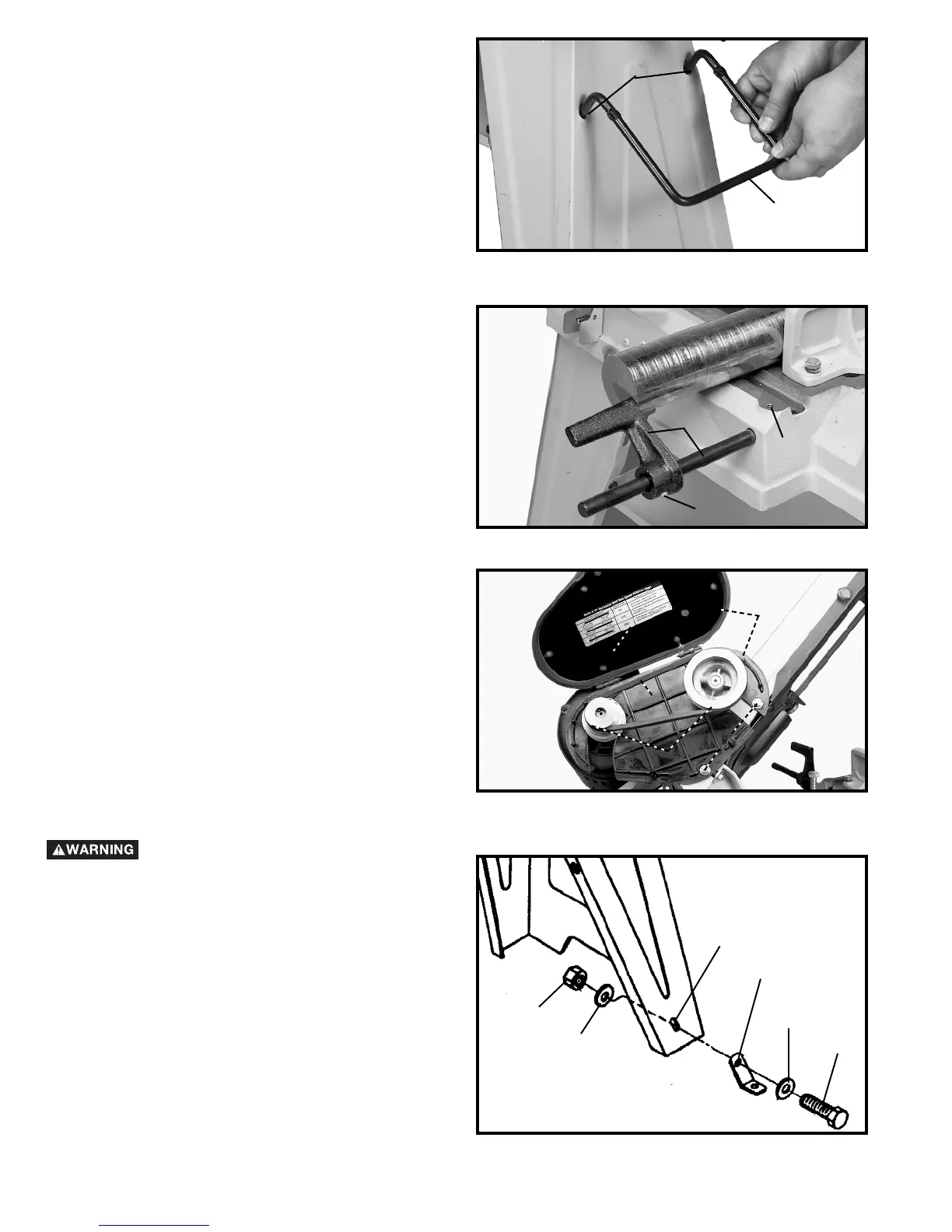

ASSEMBLING STAND HANDLE
Insert ends of handle (A) Fig. 5, into the two holes (B) on
the right leg and fasten in place using the two cotter pins
supplied.
Fig. 5
ASSEMBLING STOCK ADVANCE STOP
Assemble the stock advance stop assembly (A) to the
hole on the front of the table and tighten the two set
screws (B), as shown in Fig. 6.
Fig. 6
ASSEMBLING GUARD AND BELT
Open the belt and pulley guard (A) Fig. 7, and position
the bottom half of the guard assembly behind the
pulleys (B) as shown. Line up the two holes in the
bottom of the guard with the two threaded holes in the
casting. NOTE: DO NOT COMPLETELY TIGHTEN THE
PULLEY GUARD TO THE CASTING AT THIS TIME.
Place a 1/4" flat washer onto a 1/4-20x1/2" hex head
screw and insert screw through hole in pulley guard and
thread screw into the tapped hole in the casting. Repeat
this process for the remaining hole. Raise the motor and
assemble the belt (D) Fig. 7, to the desired steps of the
two pulleys then release the motor. A speed selection
chart (E) is located on the inside of the guard cover.
When the belt is tensioned, tighten screws (C).
Fig. 7
FASTENING BAND SAW TO
SUPPORTING SURFACE
IF DURING OPERATION THERE IS ANY
TENDENCY FOR THE BAND SAW TO
TIP OVER, SLIDE OR WALK ON THE SUPPORTING
SURFACE, THE RIGHT LEG OF THE BAND SAW
MUST BE SECURED TO A SUPPORTING SURFACE.
Align the hole in the “L” shaped floor mounting bracket
(A) Fig. 8, with the hole in the bottom of the right leg (B).
Insert a 5/16” flat washer (C) onto a 5/16-18x1/2” hex
head screw (D). Insert screw through the floor mounting
bracket (A) and the right leg. Place a 5/16” flat washer
(E) onto the screw (D) and tighten securely. Repeat this
process for the remaining hole on the other side of the
right leg. Then secure the two brakcets to the supporting
surface.
E
A
C
B
D
A
B
B
A
B
Fig. 8
A
B
C
D
E
F
