10 11

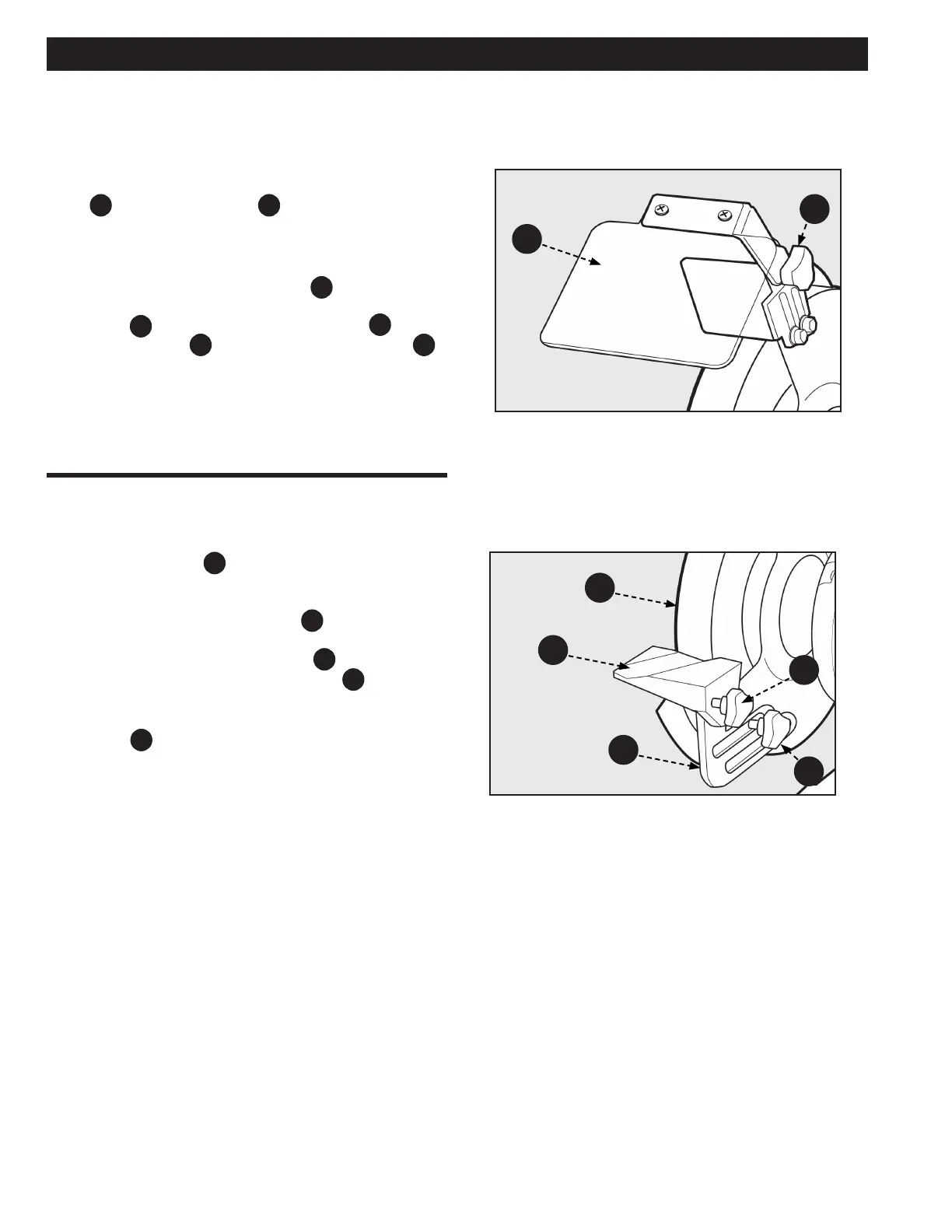

ASSEMBLY
ATTACH SPARK SHIELD AND EYE
SHIELD
ATTACH TOOL REST
1. Using the provided M4 Hex Wrench, secure two M5 x
10mm hex screws with a M5 lock washer and at washer
HP6
to secure spark shield
PC3
to the wheel guard. Spark
shield should be approximately 1/8 inch from the grinding
wheel.
2. Repeat previous step for second spark shield.
3. Use one M6 x 16mm carriage bolt
HP1
, inserted through
the outermost hole in the spark shield, to attach the eye
shield
PC2
. Secure using one M6 at washer
HP3
and one
M6 lock washer
HP2
and an eye shield locking knob
HP4
.
4. Repeat previous step for second eye shield.
See Figure 1.
1. Remove the knob
B
, lock washer, and at washer from
the carriage bolt on the lower portion of wheel guard.
Using the carriage bolt, lock washer, at washer and
knob, attach the tool rest bracket
PC7
to the inside of the
wheel guard as shown.
2. Attach beveled tool rest support
PC5
to the tool rest
support using one tool rest locking knob
HP5
.
3. Adjust the position of the tool rest support so that the
tool rest is approximately 1/8 inch from the grinding
wheel
A
.
4. Repeat above steps for second tool rest.
See Figure 2.
Figure 1
Figure 2
PC2
PC7
PC5
A
PC3
B
HP5
