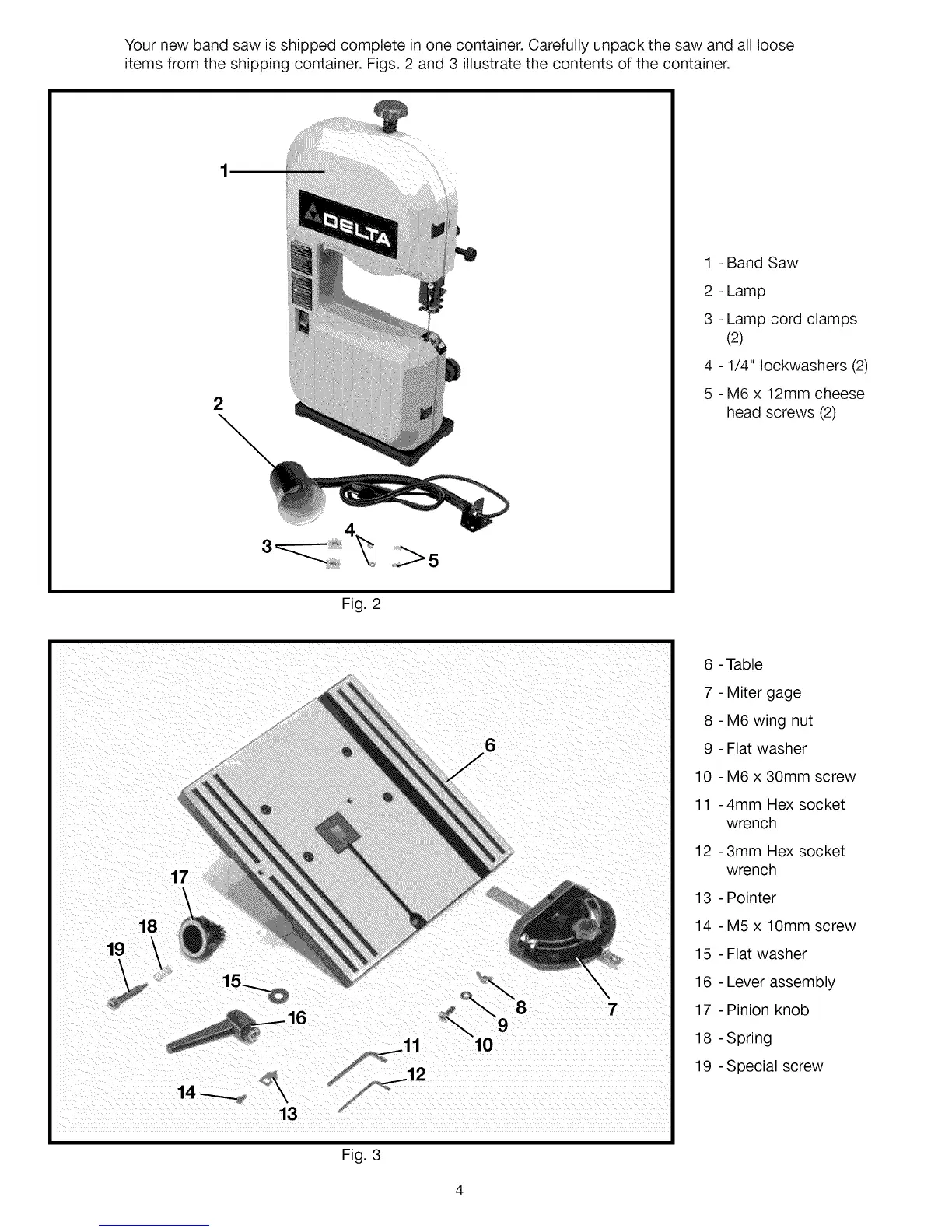

Yournewbandsawisshippedcompleteinonecontainer,Carefullyunpackthesawandallloose
itemsfromtheshippingcontainer.Figs.2and3 illustratethecontentsofthecontainer.
2
1 - Band Saw
2 - Lamp
3 - Lamp cord clamps
(2)
4 - 1/4" Iockwashers (2)
5 - M6 x 12mm cheese
head screws (2)
Fig, 2
6
17
\
\
f
13 -
Fig, 3
6 - Table
7 - Miter gage
8 -M6 wing nut
9 - Flat washer
10 - M6 x 30mm screw
11 - 4mm Hex socket
wrench
12 - 3mm Hex socket
wrench
13 - Pointer
14 -M5 x lOmm screw
15 - Flat washer
16 - Lever assembly
17 - Pinion knob
18 - Spring
19 - Special screw
