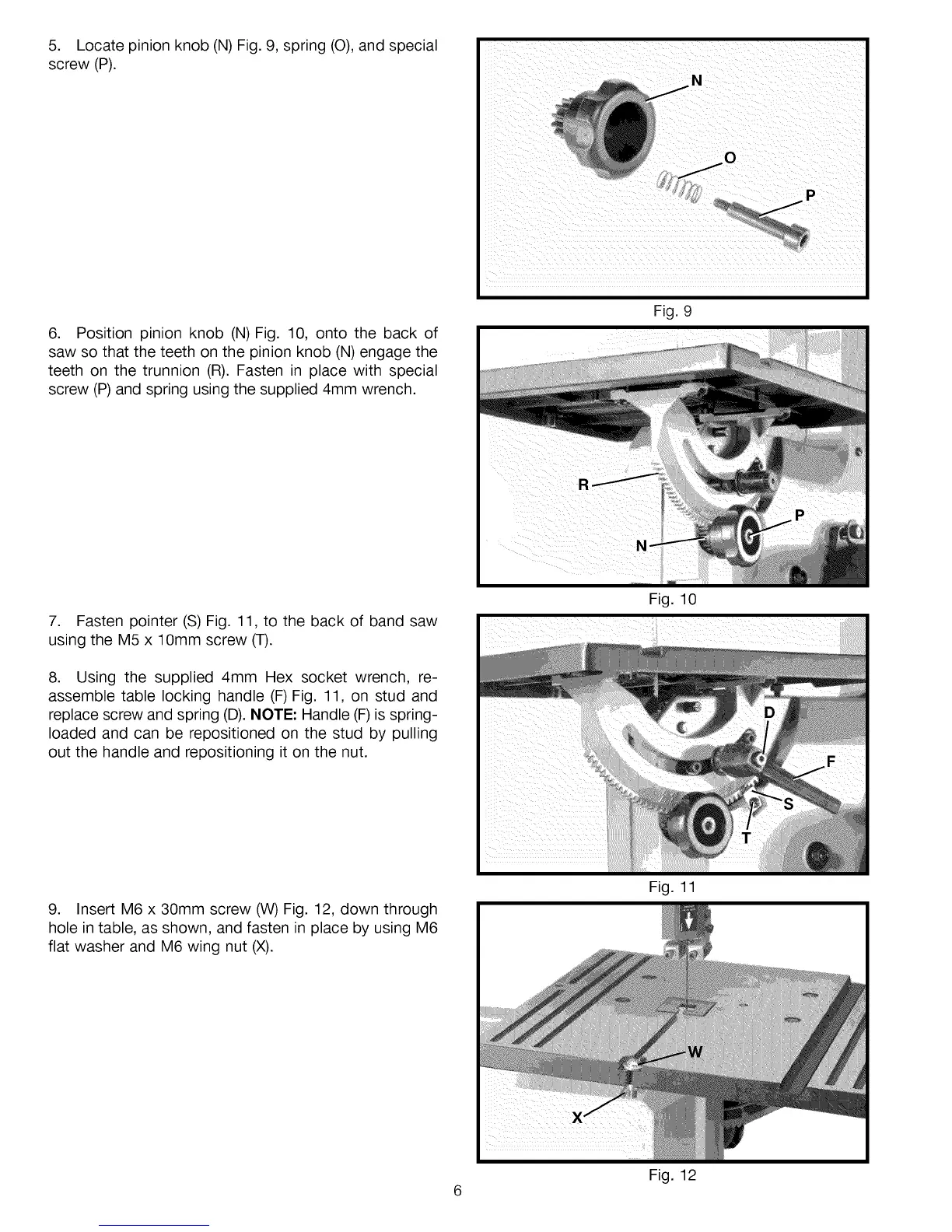

5. Locatepinionknob(N)Fig.9,spring(O),andspecial
screw(P).
6. Positionpinionknob(N)Fig.10,ontothe backof
sawsothattheteethonthepinionknob(N)engagethe
teethonthetrunnion(R).Fastenin placewithspecial
screw(P)andspringusingthesupplied4mmwrench.
Fig.9
7. Fastenpointer(S)Fig.11,tothebackof bandsaw
usingtheM5x 10mmscrew(T).
8. Usingthe supplied4mmHexsocketwrench,re-
assembletablelockinghandle(F)Fig.11,on studand .....
replacescrewandspring(D).NOTE:Handle(F)isspring-
loadedandcanberepositionedonthestudby pulling
outthehandleandrepositioningitonthenut.
Fig.10
9. InsertM6x30mmscrew(W)Fig.12,downthrough
holeintable,asshown,andfasteninplacebyusingM6
flatwasherandM6wingnut(X).
Fig.11
Fig.12
