COVER

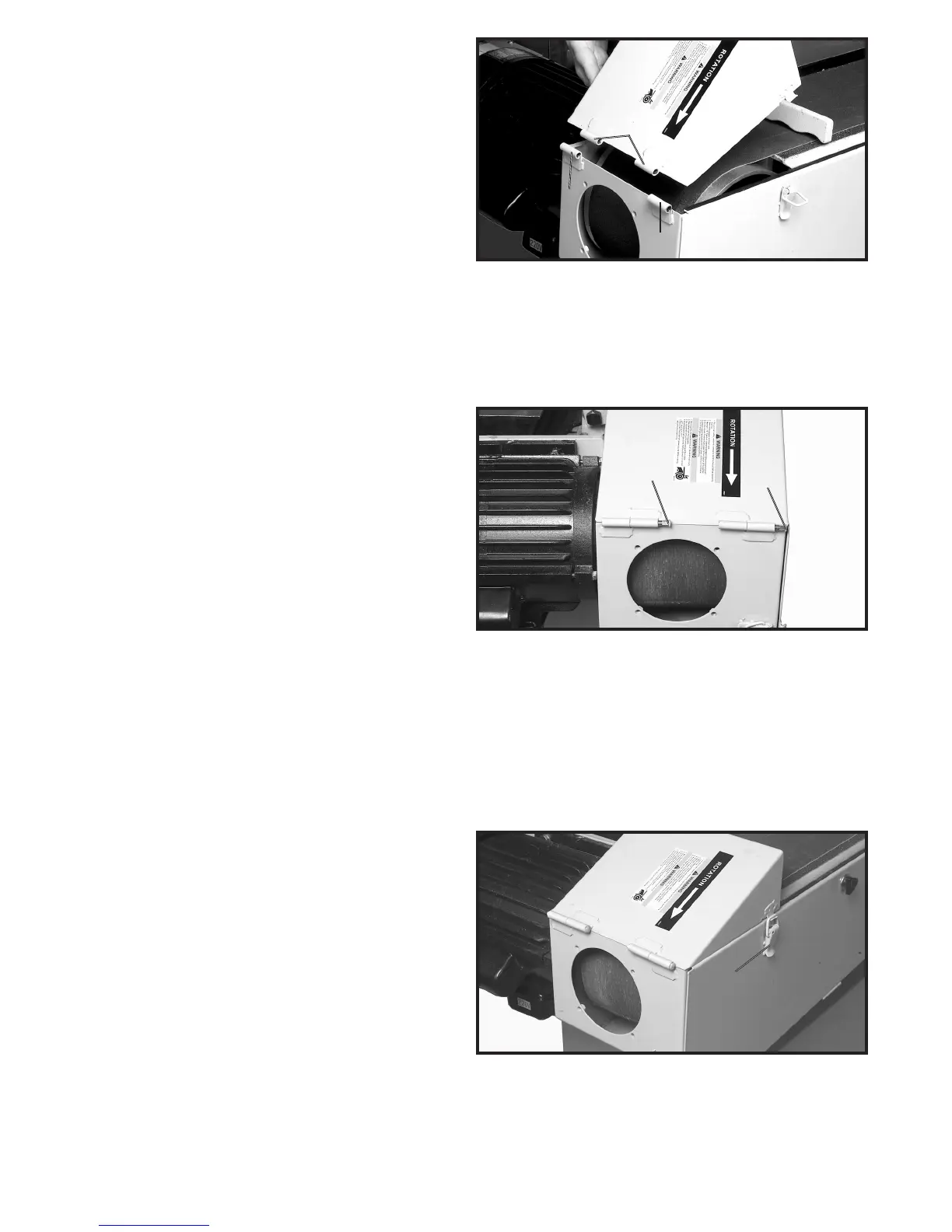

1. Align the hinges (A) Fig. 14, on the cover, with the
hinges (B) on the belt guard.
Fig. 14
Fig. 15
2. Insert hinge pins (C) and (D) Fig. 15, through the
hinges on the cover and belt guard.
Fig. 16
3. Tap the hinge pins in with hammer and rod
(supplied).
4. Latch lever (E) Fig. 16 to the cover.
