15

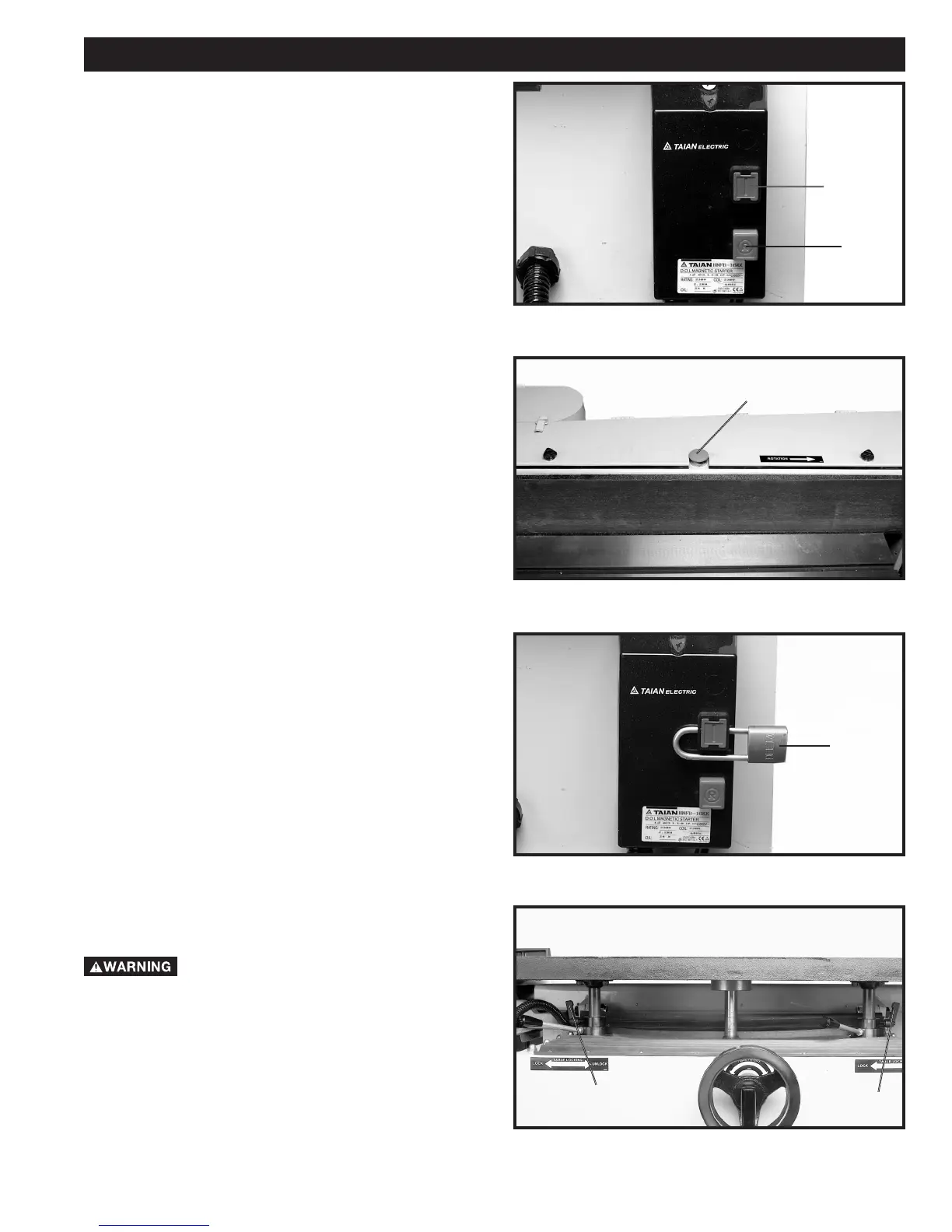

OPERATING CONTROLS AND ADJUSTMENTS
STARTING AND STOPING
OSCILLATING EDGE SANDER
The power switch is located on the left side of the
machine. To turn the machine “ON” press the green start
button (A) Fig. 31. To stop the machine, push the red
stop button (B).
There is a stop button located at the top of the belt
cover. To stop the machine, push the red stop button (C)
Fig. 32.
Fig. 31
Fig. 32
Fig. 33
LOCKING SWITCH IN
THE “OFF” POSITION
IMPORTANT: When the machine is not in use, the switch
should be locked in the OFF position using a padlock (C)
Fig. 33, with a 3/16" diameter shackle to prevent
unauthorized use.
BELT TABLE HEIGHT
DISCONNECT MACHINE FROM POWER
SOURCE.
1. Loosen ratchet handles (A) and (B) Fig. 34.
Fig. 34
A
B
C
A
B
C
