ASSEMBLY
FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL
THE MACHINE IS COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE ENTIRE
INSTRUCTION MANUAL.
BELT

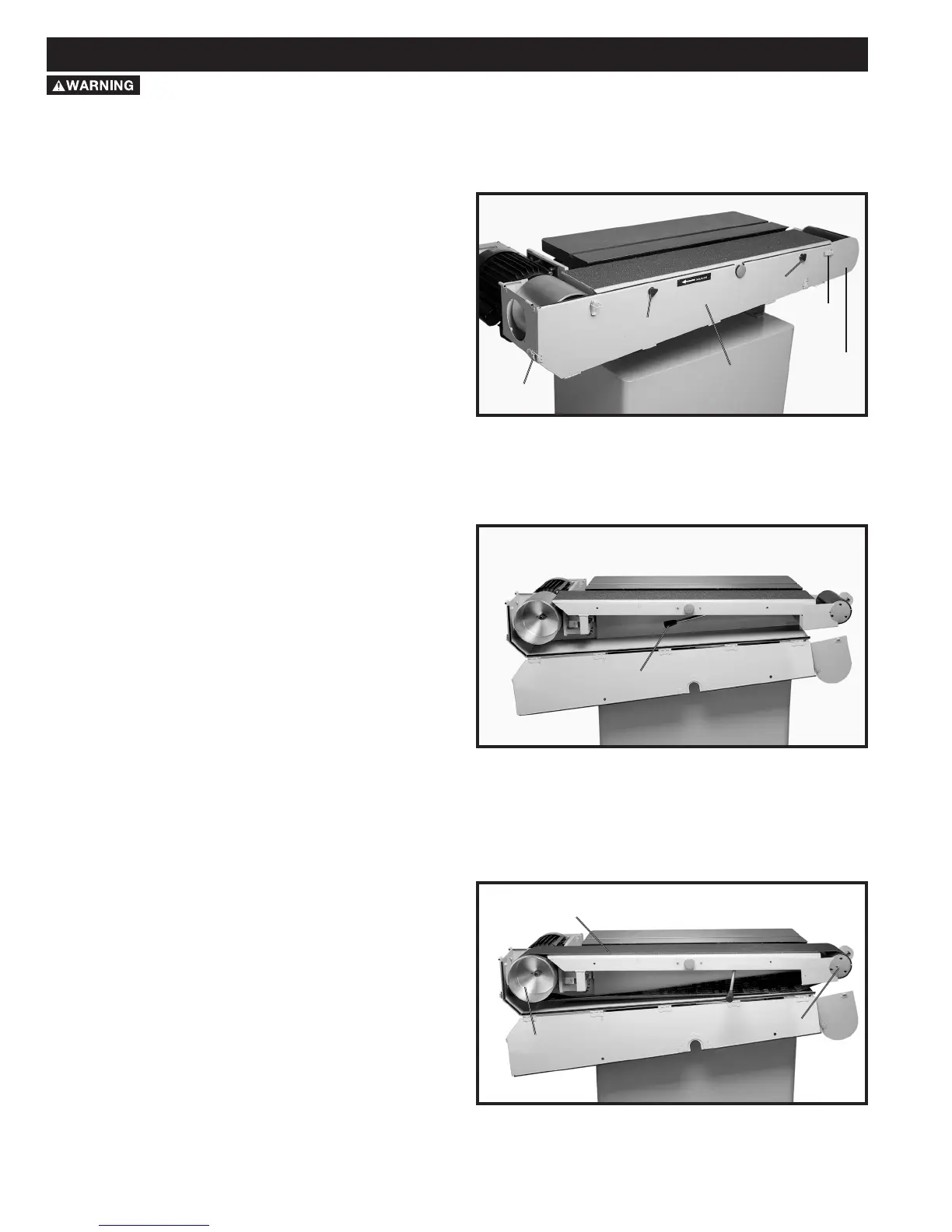

Fig. 6
Fig. 8
Fig. 9
1. Remove knobs (C) and (D) Fig. 6.
2. Open latch (B) Fig. 6, and carefully lower cover (F).
3. Open latch (A) Fig. 6, and carefully lower cover (E).
4. Pull out belt tension lever (G) Fig. 8.
5. NOTE: MAKE SURE THE ROTATION ARROW ON
THE INSIDE OF THE BELT IS POINTING IN THE
SAME DIRECTION AS THE ROTATION ARROW ON
THE MACHINE. Place belt (K) over the two belt drums
(H) and (J) Fig. 9. Make sure the belt is centered on the
drums.
A
B
C
D
E
F
G
K
H
J
