11

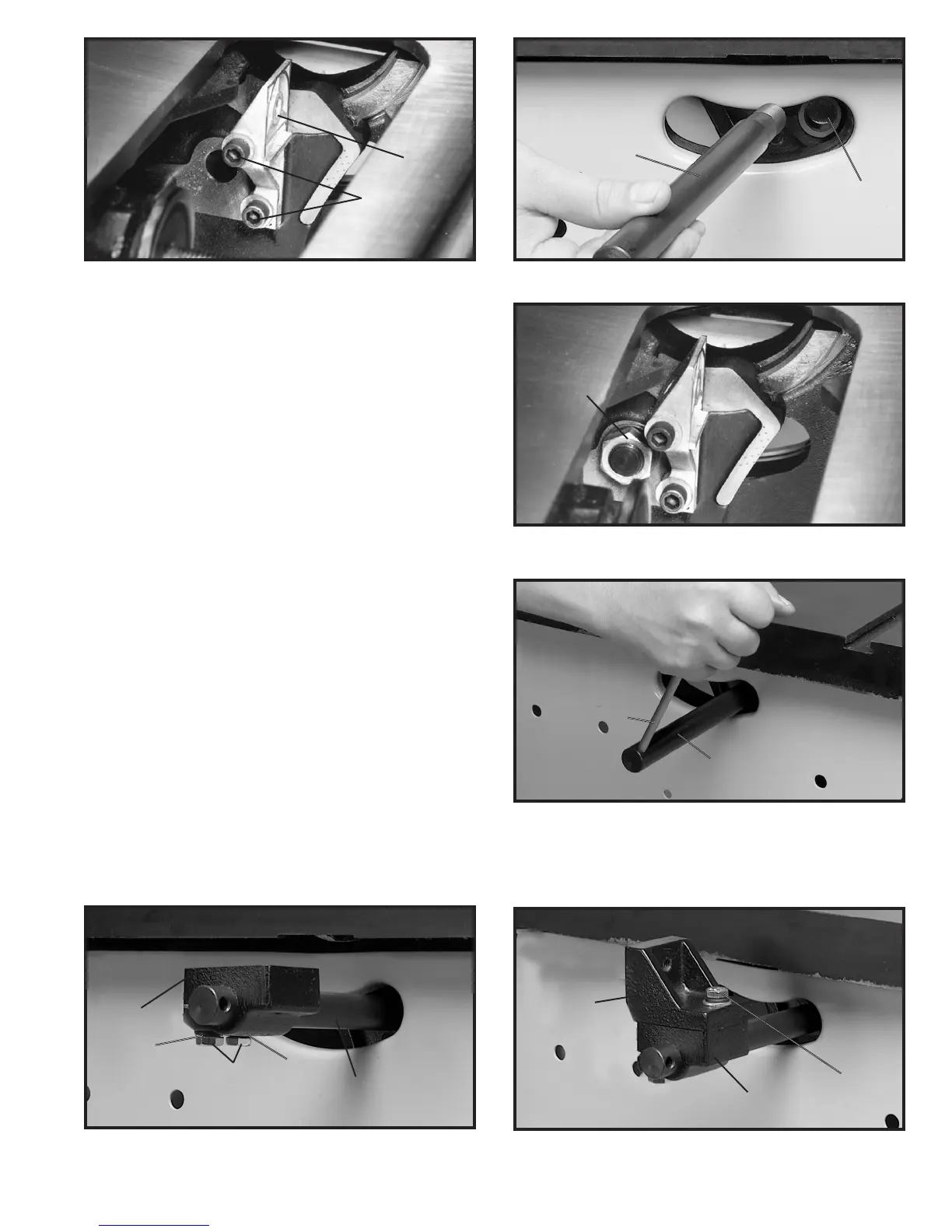

Fig. 17 Fig. 18
Fig. 19
Fig. 21
Fig. 20
4. If an adjustment is necessary, loosen two screws (F)
Fig. 17, and adjust splitter bracket (A) until it is aligned
with the inside blade flange (B) Fig. 15. Tighten two
screws (F). Loosely assemble screw and fastener plate
(C), which were removed in STEP 3.
5. Insert threaded end of support rod (G) Fig. 18,
through slot in rear of saw and into hole in rear trunnion
(H). Fasten support rod (G) to trunnion with star washer
and 5/8-18 hex jam nut (J) Fig. 19. NOTE: Thread nut (J)
Fig. 19, onto threads of support rod (G) as much as
possible by hand.
6. Using a wrench to hold the 5/8-18 hex jam nut (J) Fig.
19, tighten rod (G) Fig. 20, with a small screwdriver (K) or
similar device through the hole in the end of the rod as
shown in Figure 20.
7. Assemble lower bracket (L) Fig. 21, to rod (G) and
loosely tighten with two 5/16-18x1" hex head screws (S)
and 5/16" lockwashers (T) from underneath bracket (L).
8. Align the hole in the upper splitter bracket (M) Fig. 22,
with the hole in the lower splitter bracket (L). Place a
5/16" lockwasher, then a 5/16" flat washer, onto a 5/16-
18x1" hex head screw (N), insert the screw (N) through
the hole in the upper splitter bracket (M) and thread the
screw into the lower splitter bracket (L). NOTE: Do not
tighten screw (N) at this time.
Fig. 22
A
F
H
G
J
K
G
G
S
L
T
T
M
L
N
