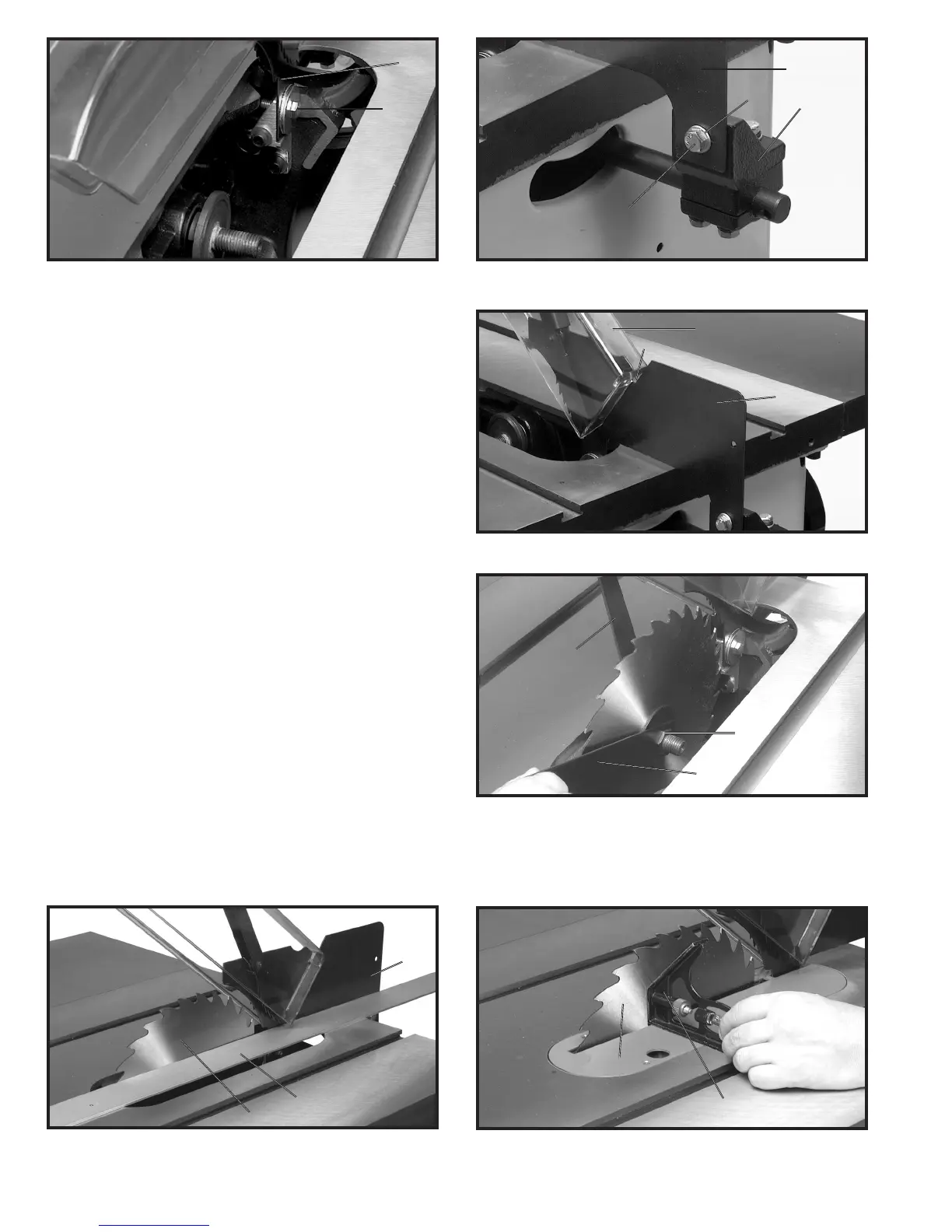

Fig. 23 Fig. 24

Fig. 25

Fig. 27

Fig. 26

9. Insert the front end of splitter (P) Fig. 23, inside the

splitter mounting bracket behind splitter fastener plate

and screw (C). Push splitter down as far as possible,

making certain the bottom edge of splitter (P) is parallel

with the table surface. Tighten screw (C). Fasten splitter

and blade guard assembly (P) Fig. 24, to bracket (M)

using a 5/16-18x1" hex head screw (V) and 5/16" flat

washer (O).

10. IMPORTANT: The splitter (P) Fig. 25, features a

notch (W) cut into the top edge. Raise the front of the

clear blade guard (G) Fig. 25, until the rear edge of the

guard slips into notch (W) of the splitter. This notch

enables the blade guard to stay in the raised position and

makes changing blades easier.

11. Reassemble the saw blade, making certain the teeth

are pointing down at the front of the saw table as shown

in Fig. 26, and assemble the outside blade flange and

arbor nut (X). With open end wrench (Y) on the flats of the

arbor to keep it from turning, tighten arbor nut by turning

box end wrench (Z) clockwise.

12. Using a straight edge (A) Fig. 27, make certain the

splitter (P) is aligned with the saw blade (B). Using a

square (C) Figs. 28 and 29, make certain saw blade (B)

Fig. 28, and splitter (P) Fig. 29, are 90 degrees to the

table surface. Once you are certain the splitter is aligned

to the saw blade and table, tighten all splitter mounting

hardware (D) Fig. 29 and recheck alignment.

Fig. 28
