5

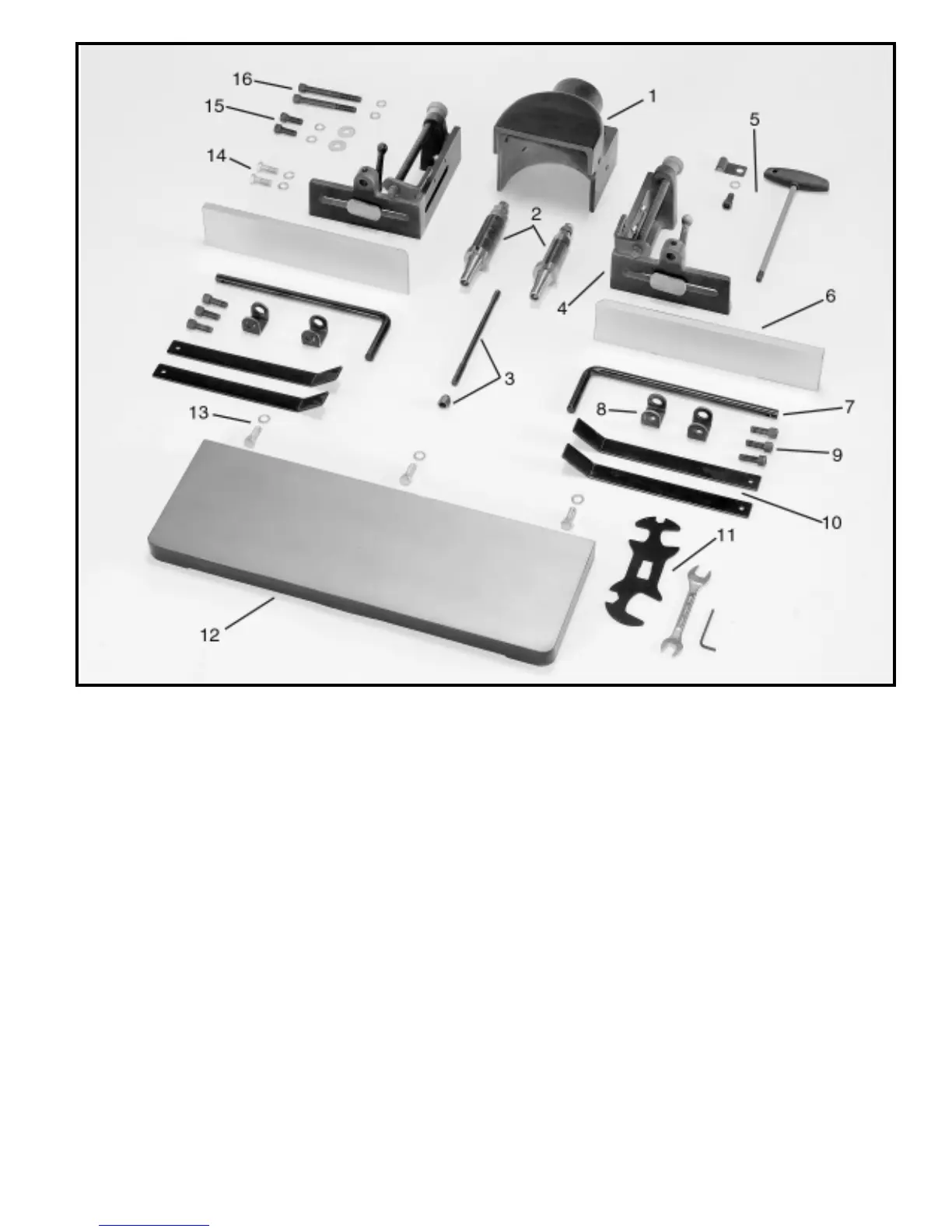

Figure 3
The following shaper parts require assembly. Please be sure all of the listed parts are included before starting assembly.
Fig. 3
1. Center Guard and Dust Chute
2. 1/2” and 3/4” Spindles w/collars
3. Tie Rod and Nut
4. Fence Bracket Assembly (2)
5. Adjusting Wrench and Bracket
6. Adjustable Fence Halves (2)
7. Stock Guide Rods (2)
8. Stock Guide Brackets (4)
9. Stock Guide Allen Lock Screws (6)
10. Stock Guide Spring Bars (4)
11. Tools (3)
12. Extension Wing
13. Wing Hex Screws (3) and Lock Washers (3)
14. Fence Bracket Hex Screws (2) and Lock Washers (2)
15. Fence Adjuster Allen Screws (2), Lock Washers (2),
and Flat Washers (2)
16. Fence Assembly Allen Screws (2) and Lock
Washers(2)
