ASSEMBLY INSTRUCTIONS
WARNING: FOR YOUR OWN SAFETY, DO NOT PLUG SHAPER IN OUTLET UNTIL THE TOOL IS
COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE ENTIRE INSTRUCTION MANUAL.

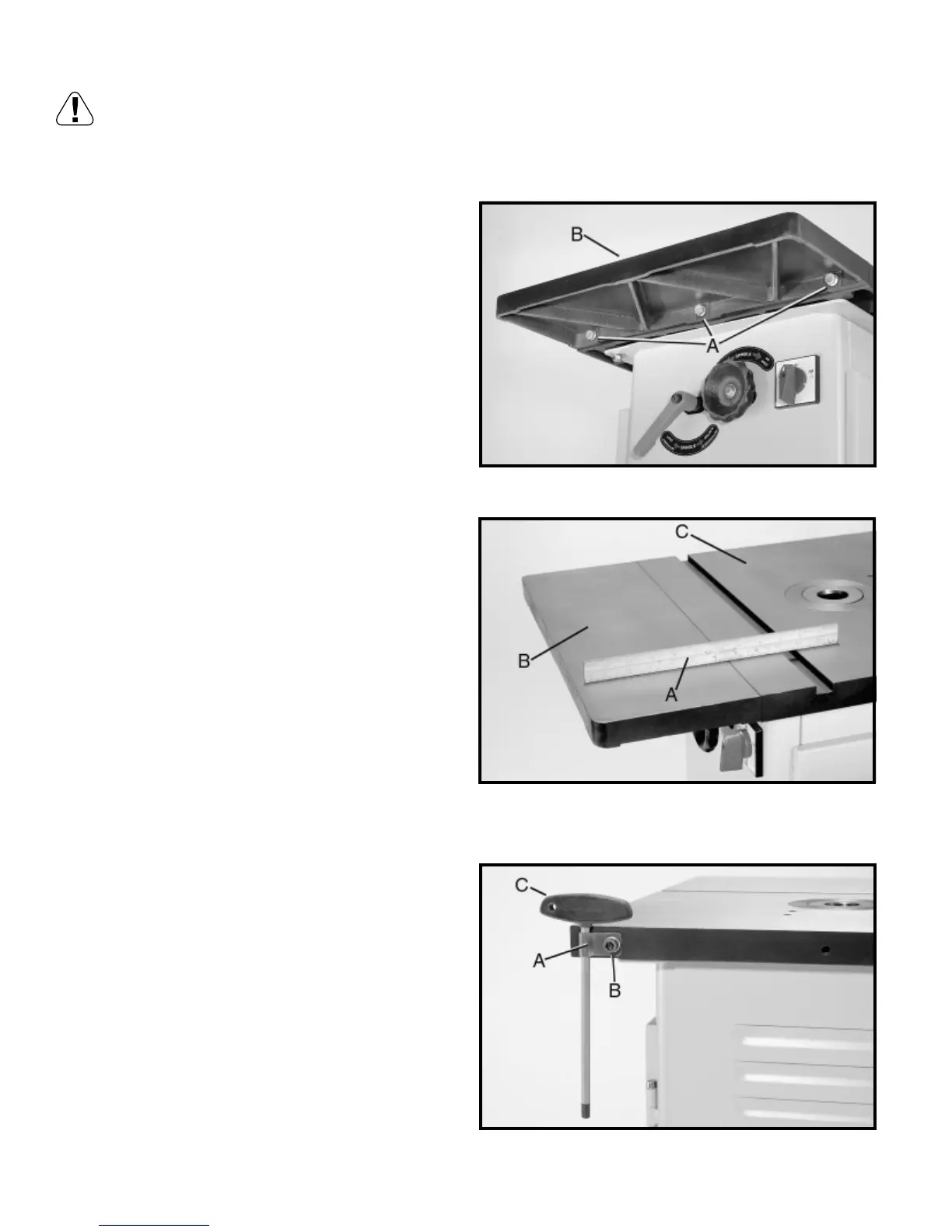

Attaching Extension Wing to Shaper Table
Figure 4
Using supplied hex head screws and washers (A), attach
the extension wing (B) to shaper table.
Note: Loosely tighten screws until next step is complete.
Figure 5
Using a straight edge (A),check the level of the extension
wing (B) with the shaper table (C). Once this is completed,
tighten all three hex head screws.
Attaching Adjusting Wrench Bracket
Figure 6
Attach bracket (A) to rear of shaper table using supplied
allen screw and lock washer (B). The wrench (C) will
slide in and out as needed.
Fig. 5
Fig. 6
Fig. 4
To Next Page
