4.3.3 Installing a Removable Terminal Block

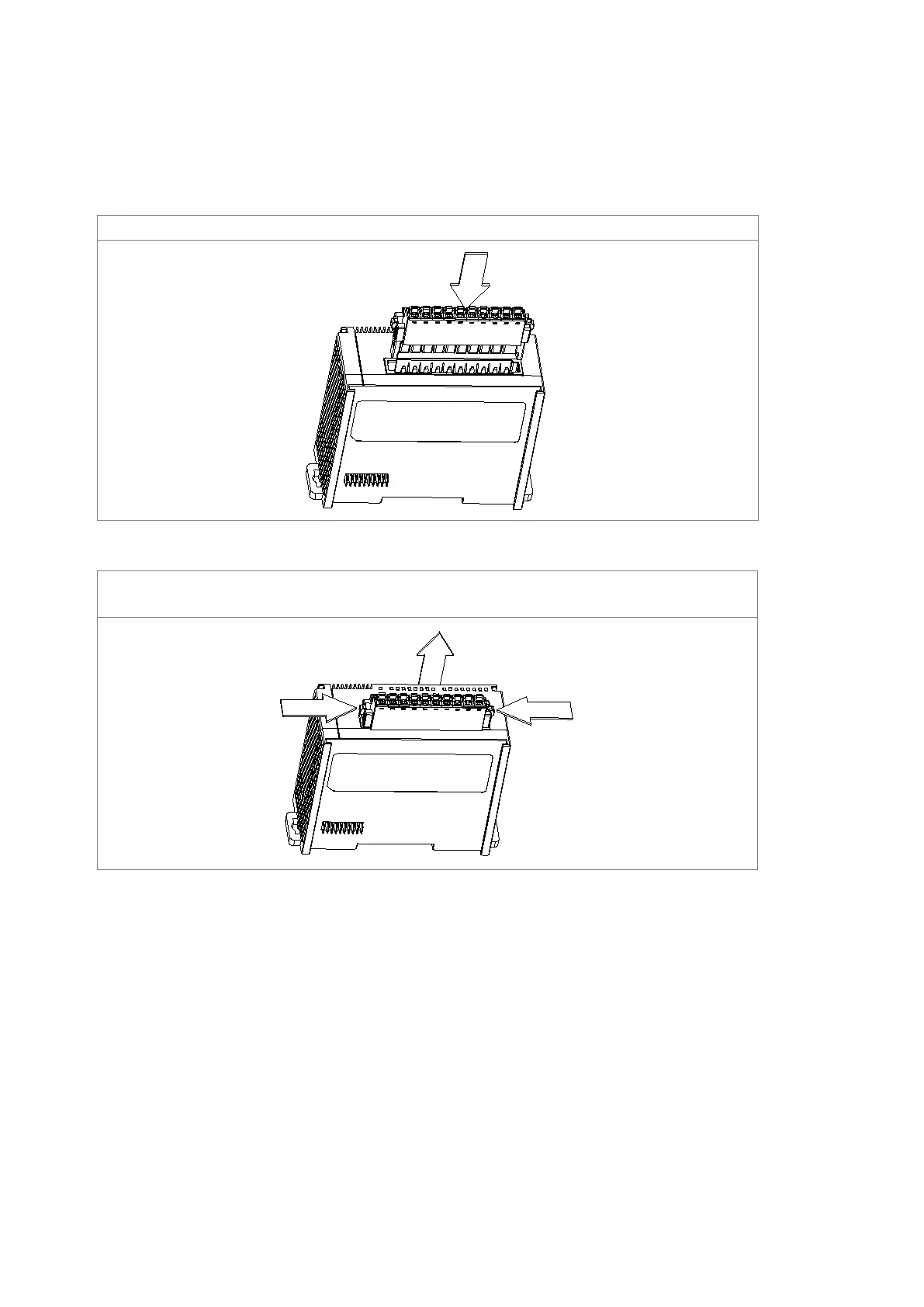

For AS200 / AS300 Series PLC CPU: install the removable terminal block on the module as shown below.
Installation
Align the terminal block at the printed circuit board, and press it into the module.
Removal
Pull the clips down in the direction shown by the arrow, and then pull the terminal block up as shown
below.
