4.10 Wiring Temperature Measurement Modules

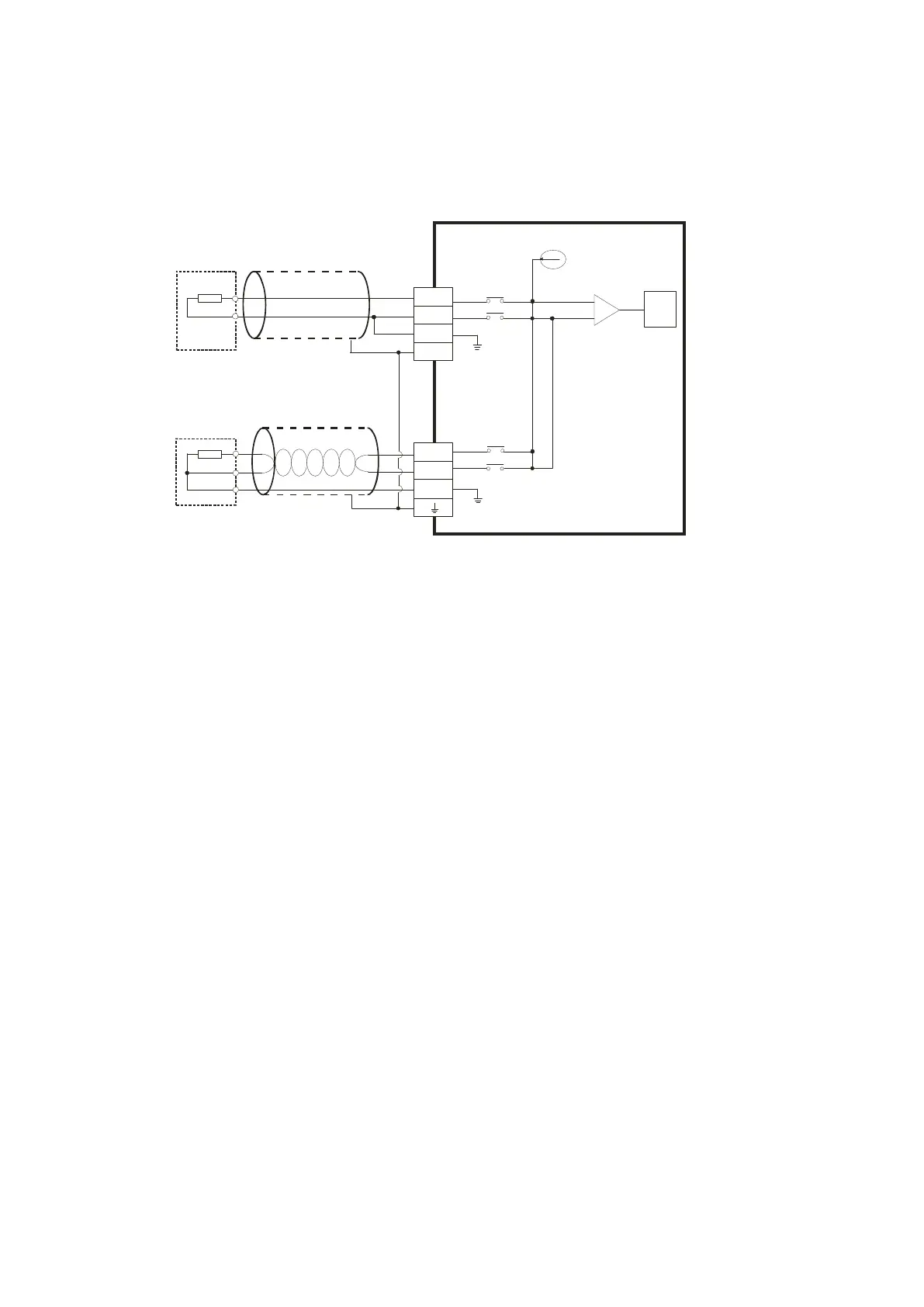

4.10.1 Wiring AS04RTD-A
Ni100, Ni120,
Pt100, JPt100,
Cu50, Cu100,
Ni1000, Pt1000,
LG-Ni1000 *3
AG
ADC
AG
INA
CH1
2-Wire
CH2
3-Wire
L1+
L1-
I1-
0~300
Ni100/Ni120/Ni1000/Pt100/Pt1000
Cu50/Cu100/JPt100/LG-Ni1000
Ω , 0~3000Ω
L2+
L2-
I2-
*2
SL D
Shielded cable*1
Shielded cable*1
*1. Use shielded twisted pair cables for temperature sensors, and keep them away from power cables and
other cables that generate noise.
*2. If you use two-wire temperature sensors, Ln- and In- must be short-circuited (where n is between 1–4).
*3. There are two different internal excitation currents. If you are using temperature sensors, such as Ni100,
Ni120, Pt100, JPt100, Cu50/Cu100, or a 0~300 Ω resistance sensor, the internal excitation current is
1.0 mA. If you are using a Ni1000 temperature sensor, a Pt1000 temperature sensor, a LG-Ni1000
sensor, or a 0~3000 Ω resistance sensor, the internal excitation current is 0.2 mA.
Note: use cables with the same length (less than 200 m) and use terminal resistors of less than 200 ohm.
