4.8 Wiring Digital Input/Output Terminals
4.8.1 Wiring Digital Input Terminals

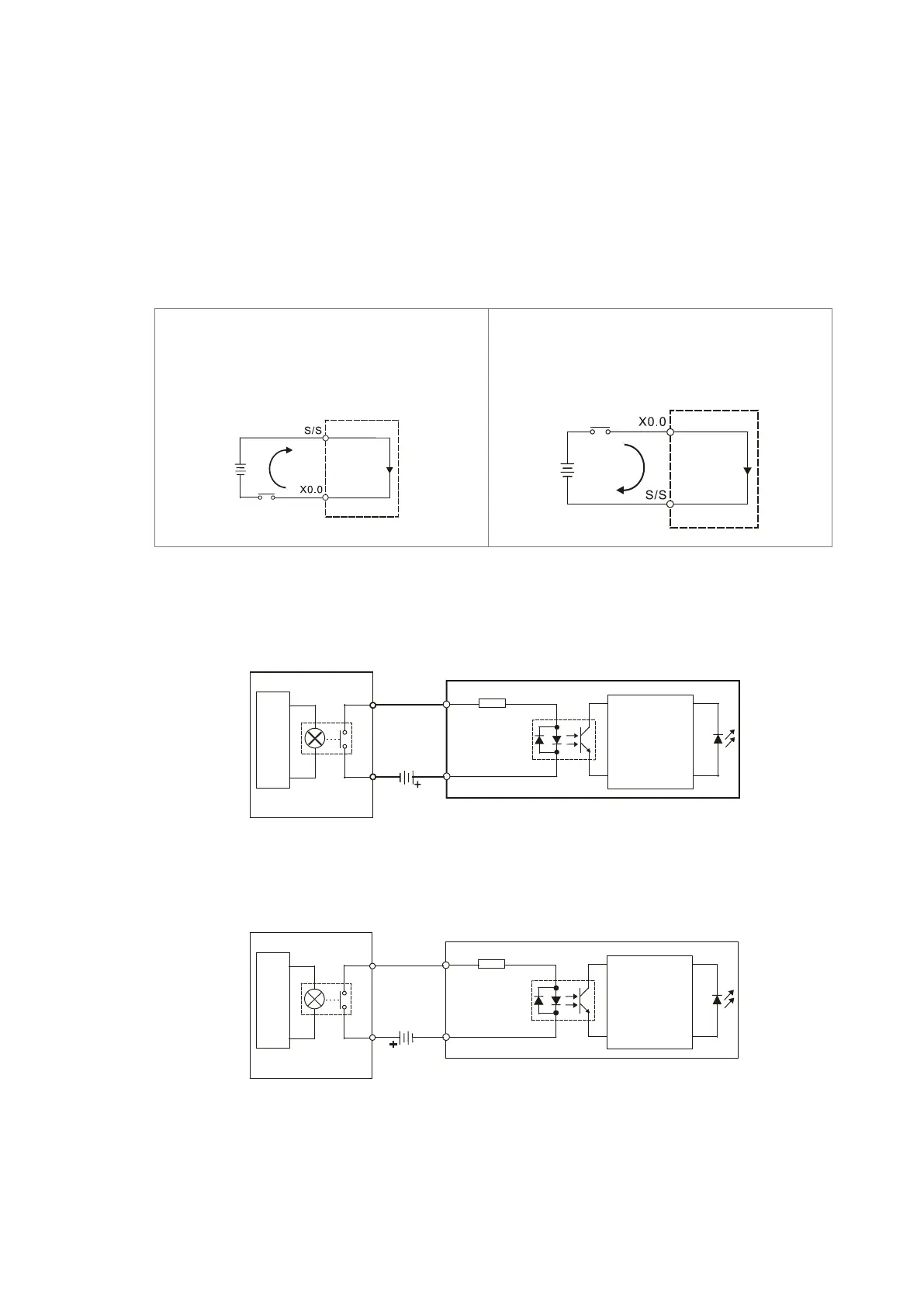

4.8.1.1 Sinking and Sourcing
The input signal is the 24 VDC power input. Sinking and sourcing are the current driving capabilities of a circuit.
They are defined as follows.
Sinking Sourcing
Sinking=The current flows into the common
terminal S/S.
Souring=The current flows from the common
terminal S/S.
4.8.1.2 Relay Type
Sinking
Internal
circuit
S/S
X0.0
I/O
Internal circuit
24VDC
Sourcing
Internal circuit
Internal
circuit
S/S
X0.0
I/O
24VDC
