Delta AS332P-A

bundle 110 VAC cable, 220 VAC cable, 24 VDC cable, the (high-voltage high-current) main circuit,
and the I/O signal cable together. The distance between adjacent cables should be more than 100
millimeters.
(3) Use single-wire cables or two-wire cables with a diameter of 20 AWG to 14 AWG. Only use copper
conducting wires with a temperature rating of 60/75°C.

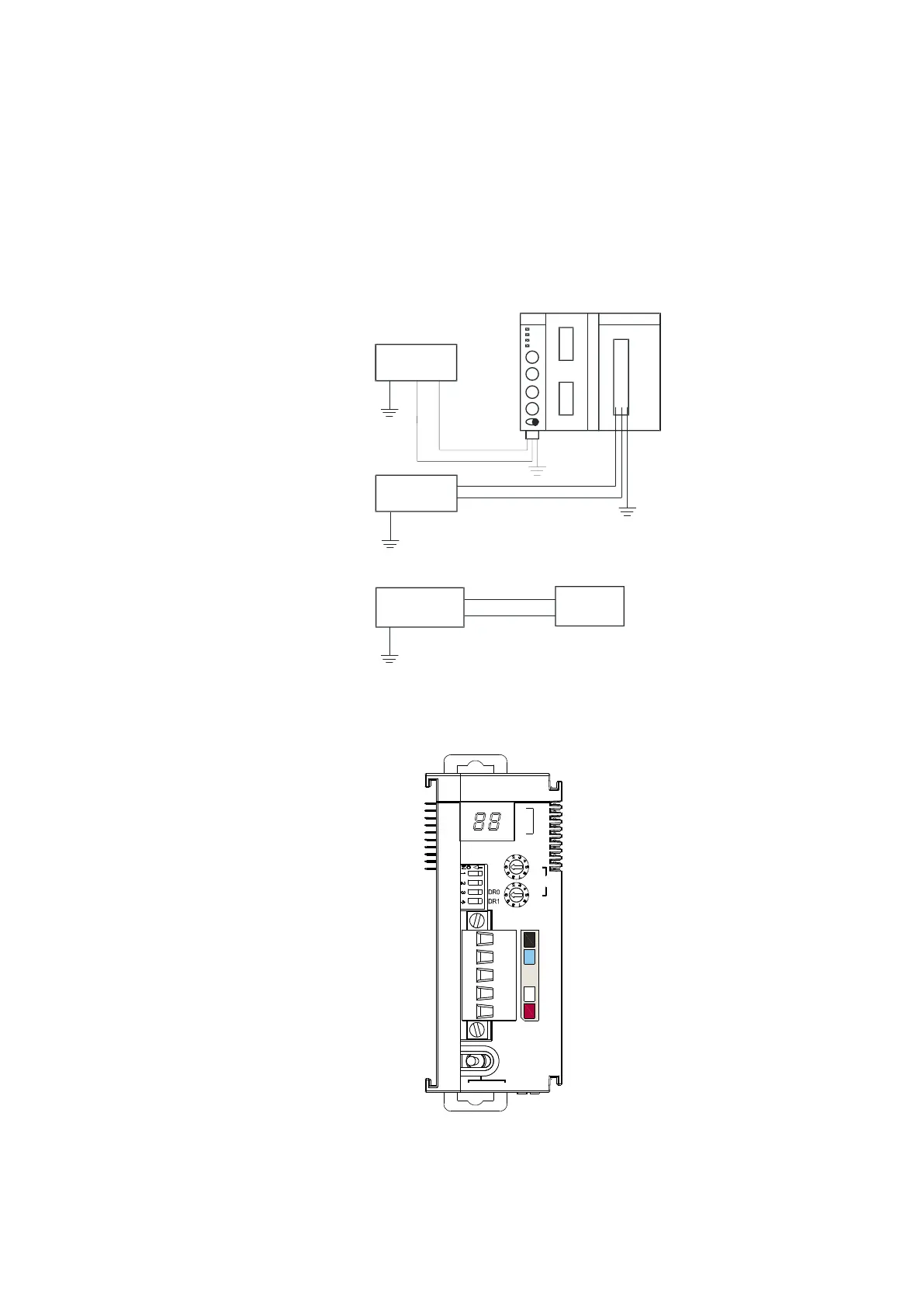

DC Power Supply
24VDC
Min 1.5A
SC M AS IO
DC Power Supply
24V
DC
24V0V
Grounding
Grounding
Grounding
Grounding
24V
0V
Other
devices
DC Power Supp ly
24VDC
Grounding
24V
0V
4.13.3 AS01DNET-A
01 DNE T
MS
NS
x10
1
x10
0
I N 0
I N 1
Node Addre ss
RTU Mast erSlave/
