7.3
Installing and Removing a Memory Card
7.3.1
Memory Card Slot in a CPU Module

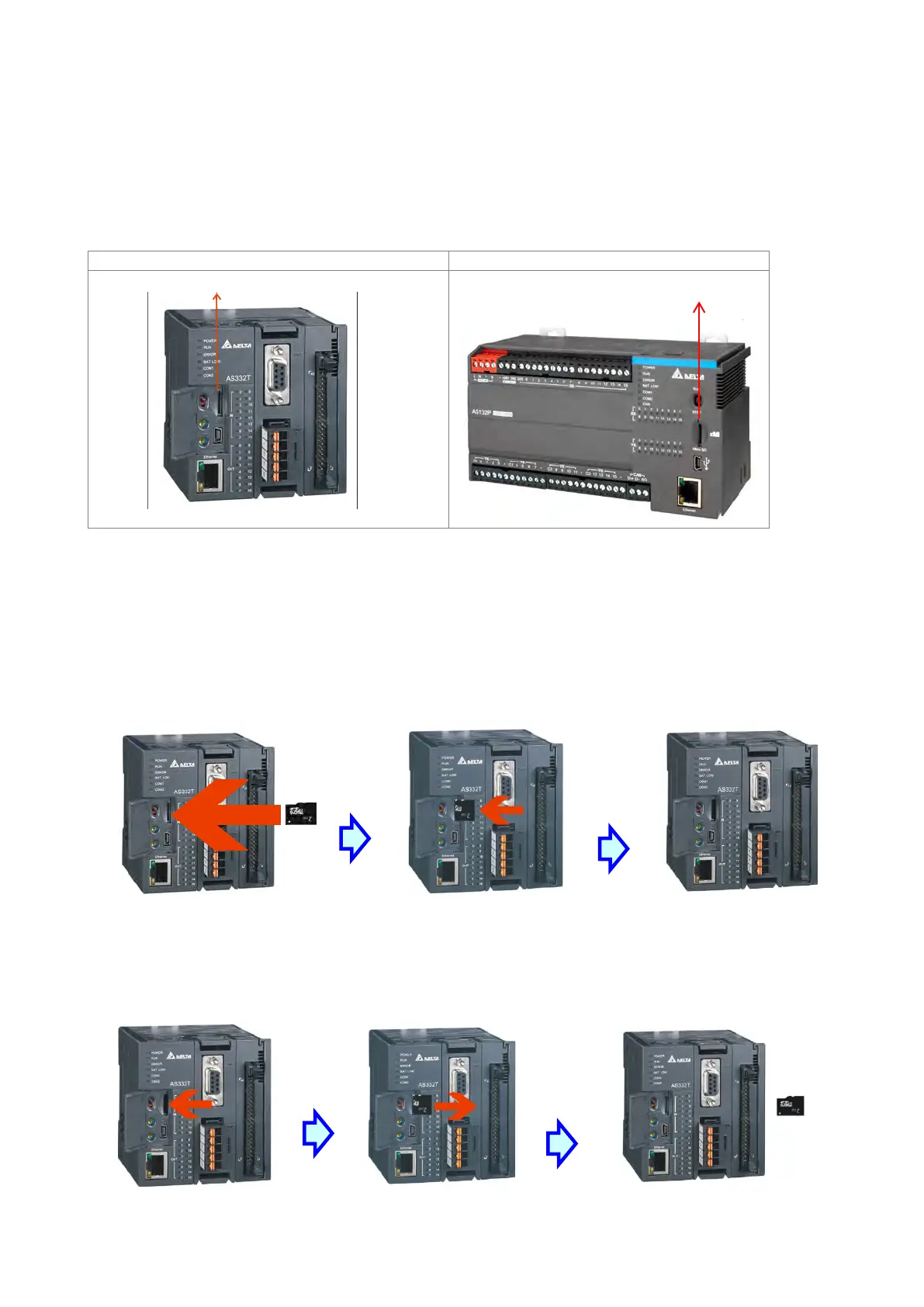

The memory card slot is on the front side of the AS Series PLC.
7.3.2
Installing a Memory Car
d
Insert a memory card into the CPU module memory card slot and push it in until it clicks. Be sure the memory
card is fixed firmly in the slot; if the memory card is loose, it is not installed correctly. The memory card can
only be inserted in one direction. Do not force the memory card or you may damage the CPU module. The
following example uses AS300 Series PLC CPU to show you a correct way to insert the memory card.
7.3.3
Removing a Memory Card
Remove a memory card by pushing it in and the card then springs from the slot. (uses AS300 as an example)
