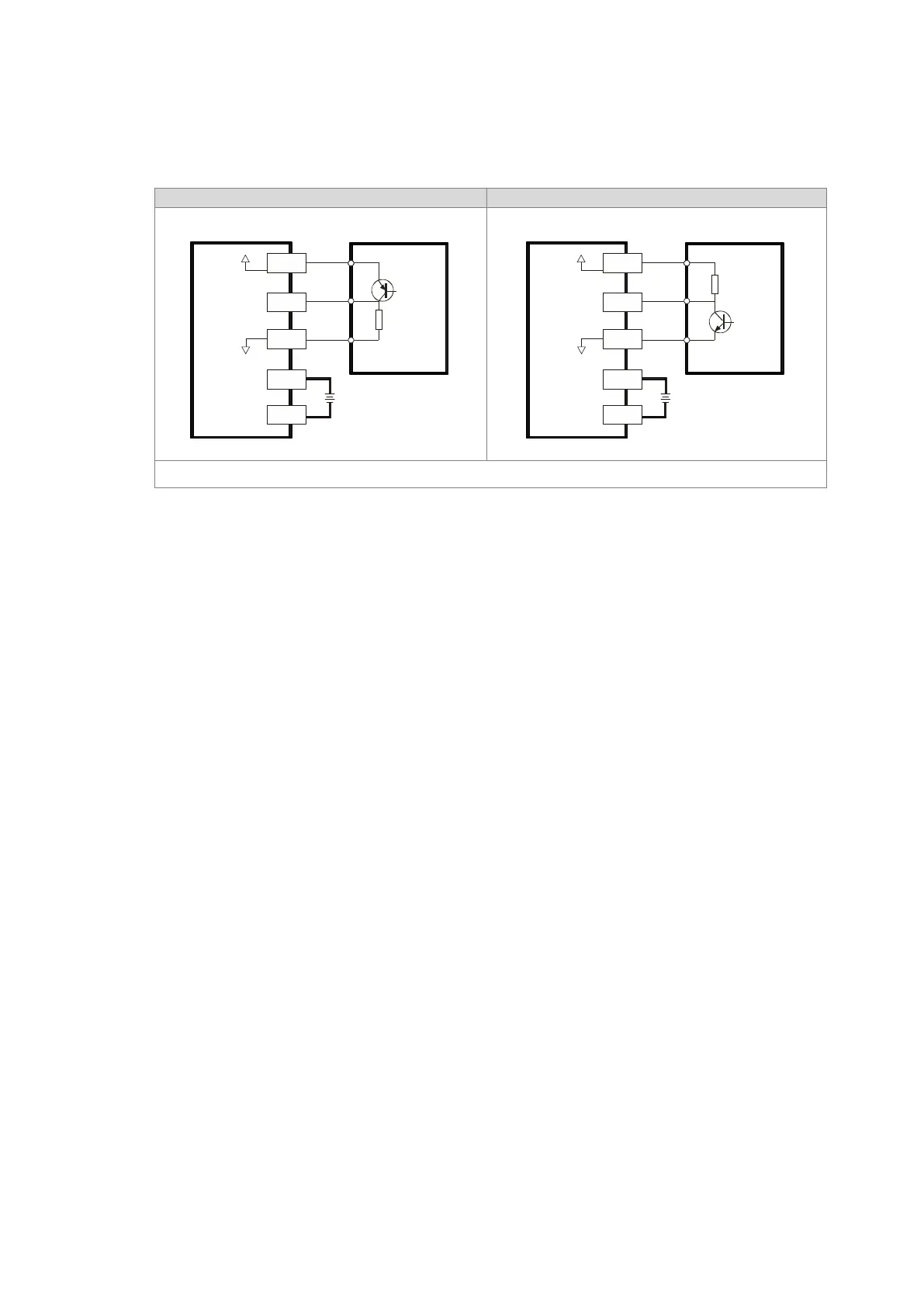

4.13.6.4 Digital Input Wiring
When the connected device is a PNP type
When the connected device is a NPN type
Ln+
DIn
Ln-
24V
0V
AS04SIL-A
24 V
0V
Ln+
DIn
Ln-
24V
0V
AS04SIL-A
24 V
0V
Note: n=1~4
