Delta AS332P-A

5.5.1 Starting Addresses for Digital Input/Output Modules

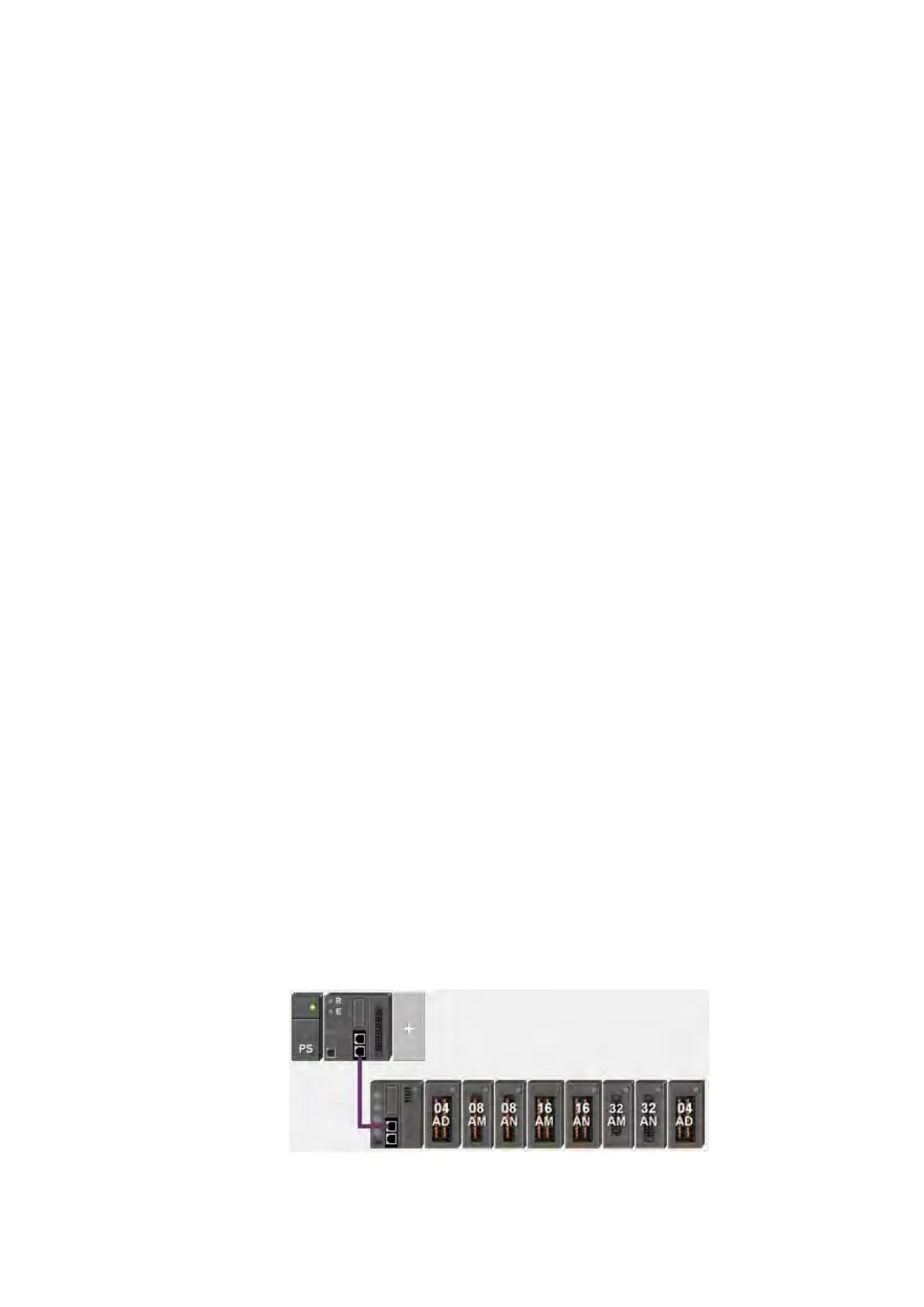

The remote module AS00SCM-A can connect to up to eight modules on its right side. HWCONFIG
automatically assigns input and output devices to a digital input/output module in ISPSoft according to the
number of inputs/outputs in the digital input/output module (X1.0–X1.15, X2.0–X2.15…；Y0.0–Y0.15, Y1.0–
Y1.15, Y2.0–Y2.15). The default starting addresses are shown below.
Note: each digital I/O module reserves 20 words of data devices and it assigns consecutive data devices
automatically starting from D29000.
 08AM: There are eight inputs. The input device range occupies 16 bits (Xn.0–Xn.15) and 20 words of
data devices.
 08AN: There are eight outputs. The output device range occupies 16 bits (Yn.0–Yn.15) and 20 words of
data devices.
 16AM: There are 16 inputs. The input device range occupies 16 bits (Xn.0–Xn.15) and 20 words of data
devices.
 16AN: There are 16 outputs. The output device range occupies 16 bits (Yn.0–Yn.15) and and 20 words of
data devices.
 16AP: There are eight inputs and eight outputs. The input and output device range occupies 16 bits.
(Xn.0–Xn.15), (Yn.0–Yn.15) and 20 words of data devices.
 32AM: There are 32 inputs. The input device range occupies 32 bits (Xn.0–Xn+1.15) and 20 words of
data devices.
 32AN: There are 32 outputs. The output device range occupies 32 bits (Yn.0–Yn+1.15) and 20 words of
data devices.
 64AM: There are 64 inputs. The input device range occupies 64 bits (Xn.0–Xn+3.15) and 20 words of
data devices.
 64AN: There are 64 outputs. The output device range occupies 64 bits (Yn.0–Yn+3.15) and 20 words of
data devices.
